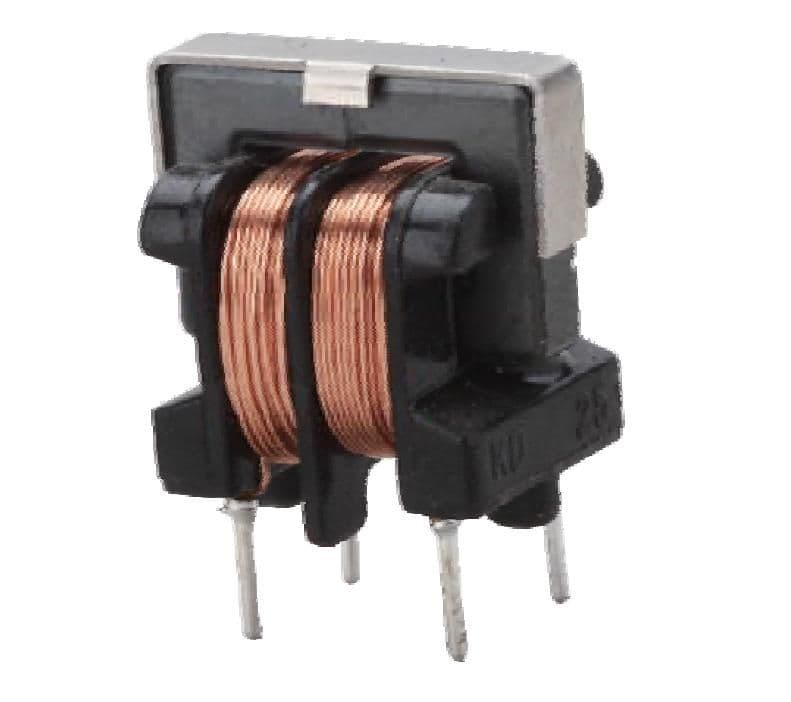

CVU98F

Inductance: 1.8mH-30.0mH

Product Information

Core material: Ferrite Core
Inductance: 1.8mH-30.0mH
DC resistance(mΩ): 310.0-2000.0

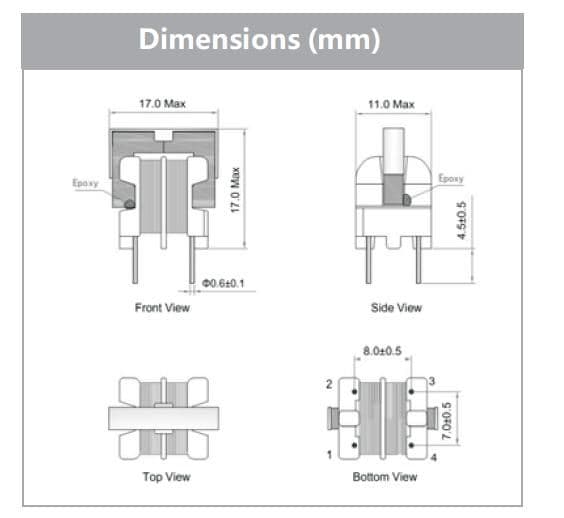

PCB Hole(mm): ø1.0
Operating temp: -40℃ to +125℃
Decrease the noise by using at 10kHz to 100MHz
Mains filter

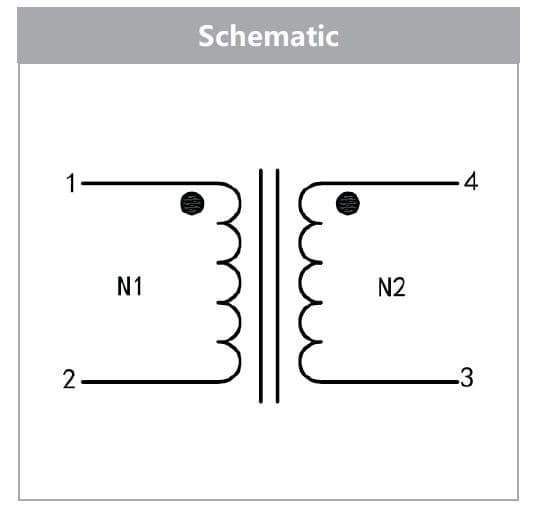

Suppression of common mode noise
Compact switch mode power supplies

Request Quote

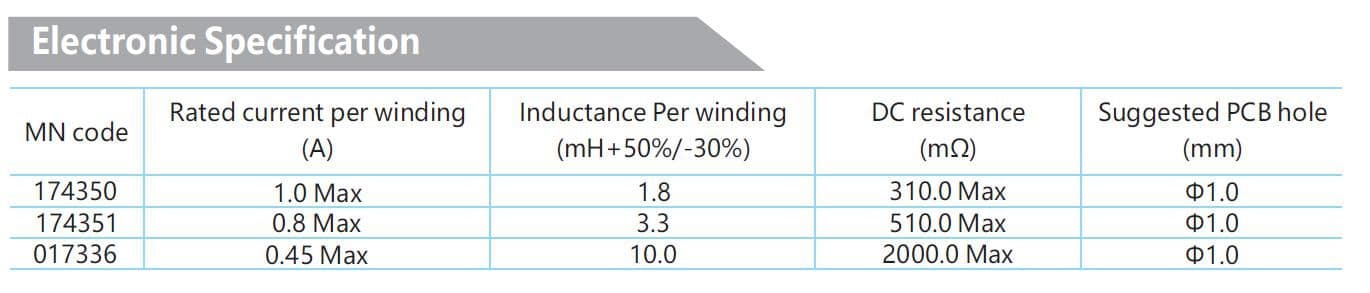

Available versions

* On request

1.8mH/1.0A *
3.3mH/0.8A *
10.0mH/0.45A *

Request Custom

Downloads

Tech Spec

Notes

Core material: Ferrite Core
Inductance: 1.8mH-30.0mH
DC resistance(mΩ): 310.0-2000.0
PCB Hole(mm): ø1.0
Operating temp: -40℃ to +125℃
