CV250F Encapsulated

Inductance: 470uH-10.0mH

Product Information

Core material: Ferrite
Inductance: 470uH-10.0mH
DC resistance(mΩ): 40.0-150.0

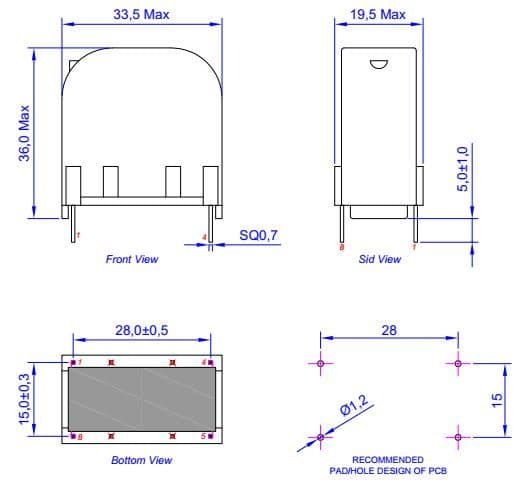

PCB Hole(mm): ø1.2
Operating temp: -40℃ to +125℃
Decrease the noise by using at 10kHz to 200MHz
It is mainly applied in AC inductor, converter, switch power supplies,
EMC filter; wind power, householding appliances
