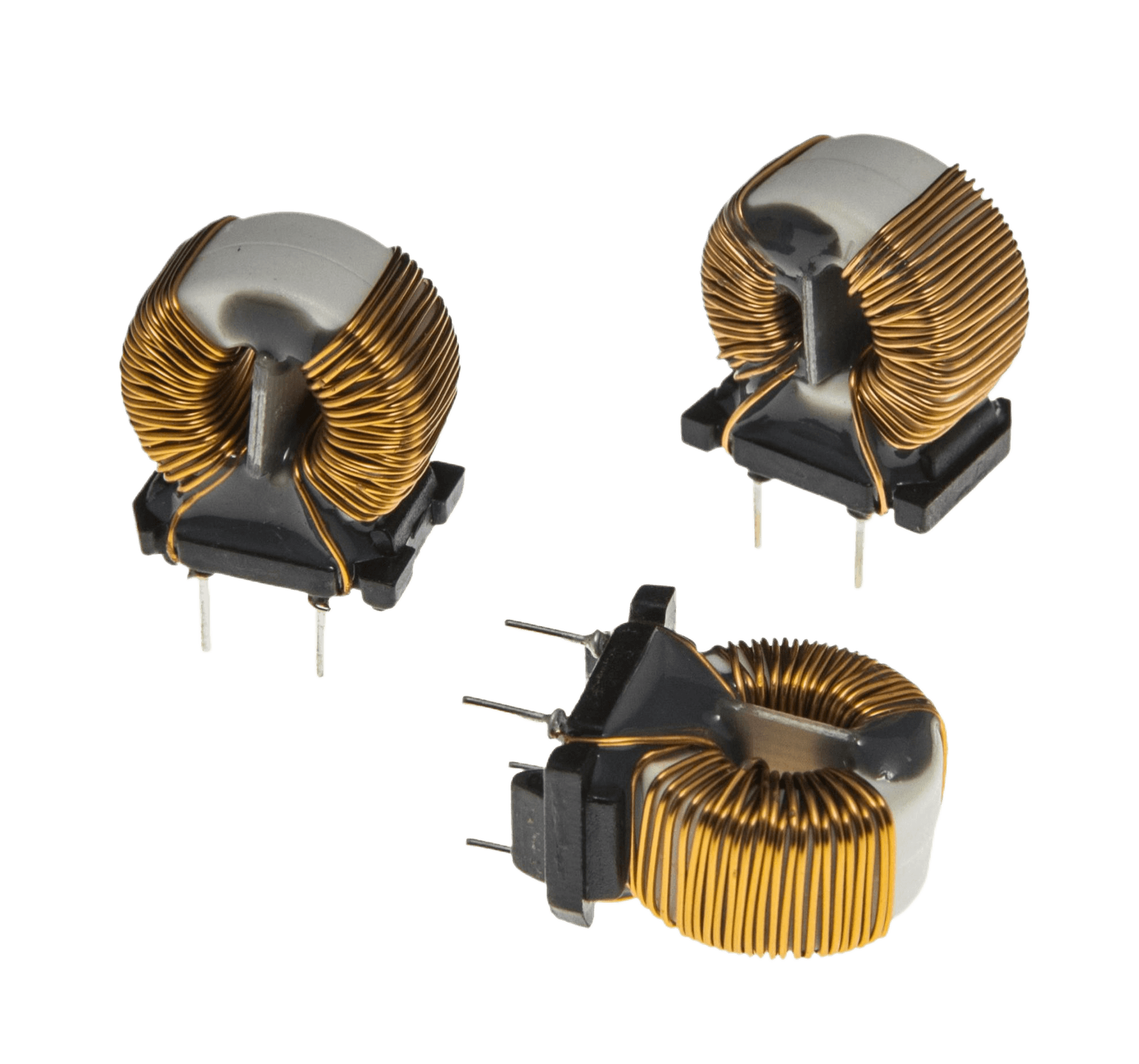

CV200N
Inductance: 1.0mH-82.0mH
Product Information
Core material: Nanocrystalline
Inductance: 1.0mH-82.0mH
DC resistance(mΩ): 3.0-170.0

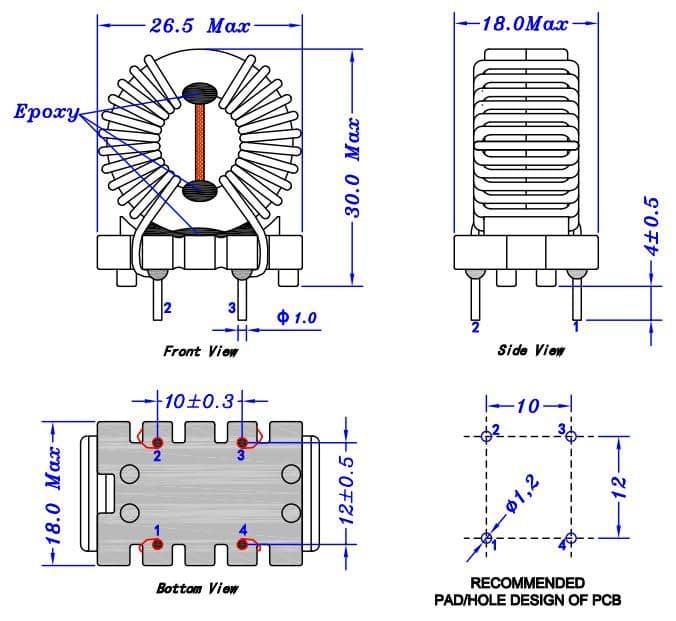

PCB Hole(mm): ø1.2
Operating temp: -40℃ to +125℃
Decrease the noise by using at 1kHz to 300MHz
High and stable inductance values at high temperatures
Power line in and output filter

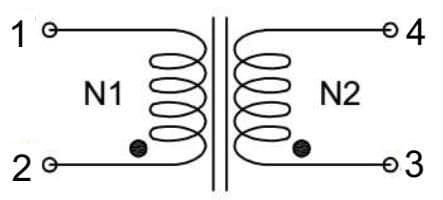

Suppression for common mode noise

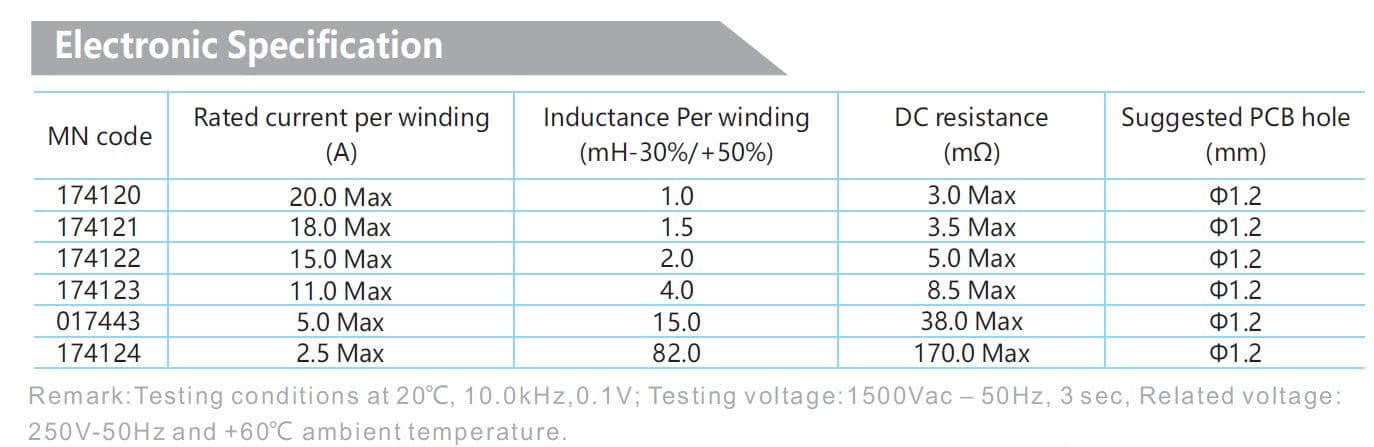

Available versions
* On request- 1.0mH/20.0A *
- 1.5mH/18.0A *
- 2.0mH/15.0A *
- 4.0mH/11.0A *
- 15.0mH/5.0A *
- 82.0mH/2.5A *
Downloads
Tech Spec
Notes
- Core material: Nanocrystalline
- Inductance: 1.0mH-82.0mH
- DC resistance(mΩ): 3.0-170.0
- PCB Hole(mm): ø1.2
- Operating temp: -40℃ to +125℃
