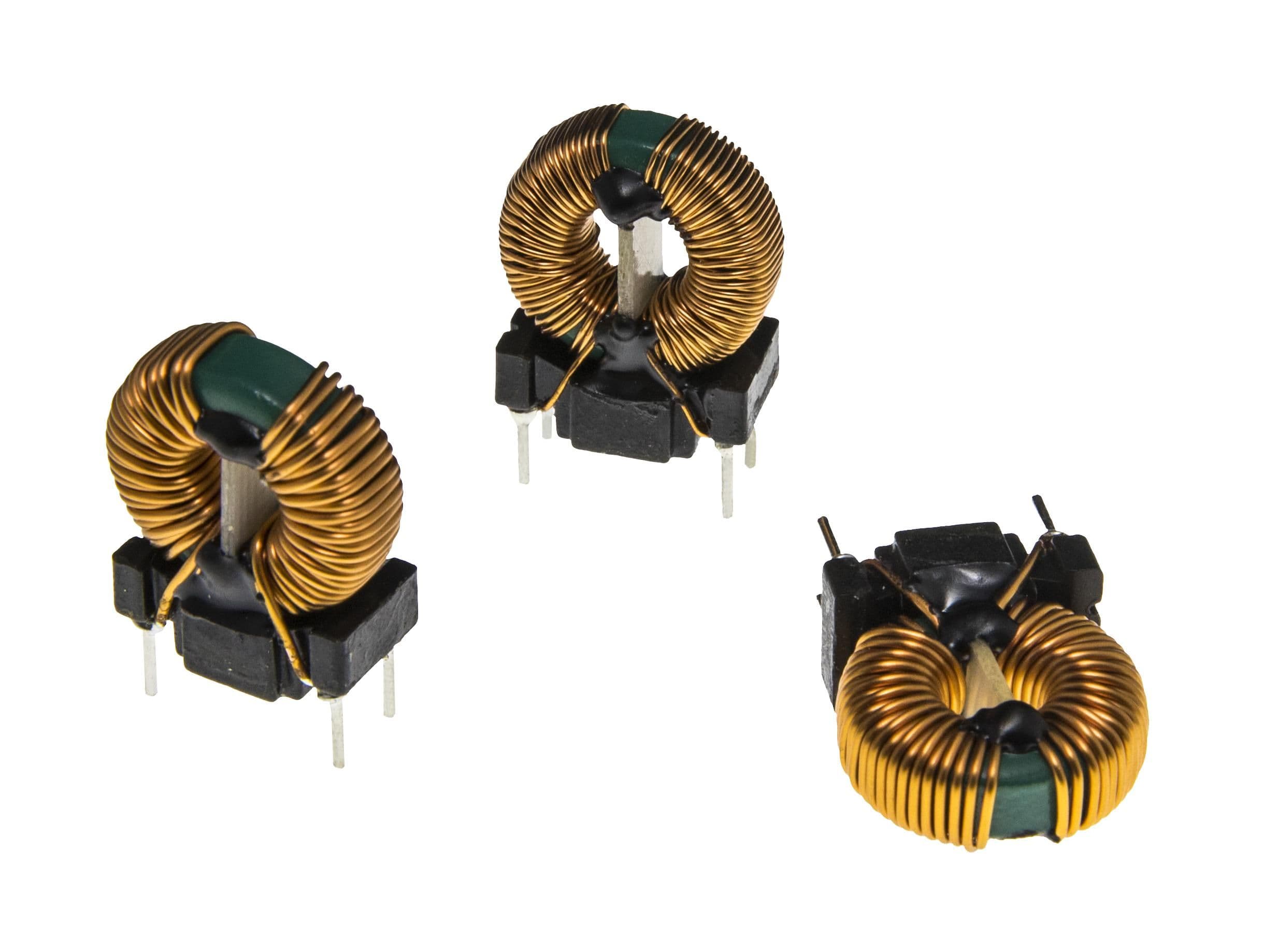

CV160N

Inductance: 8.0mH-20.0mH

Product Information

Core material: Nanocrystalline
Inductance: 8.0mH-20.0mH
DC resistance: 10.0Max/20.0Max/100.0Max
PCB Hole(mm): ø0.7/ø1.0/ø1.2
Operating temp: -65℃ to +125℃
Decrease the noise by using at 10kHz to 200MHz
It is mainly applied in AC inductor converter; switch power supplies;
EMC filter; wind power, house holding appliances
