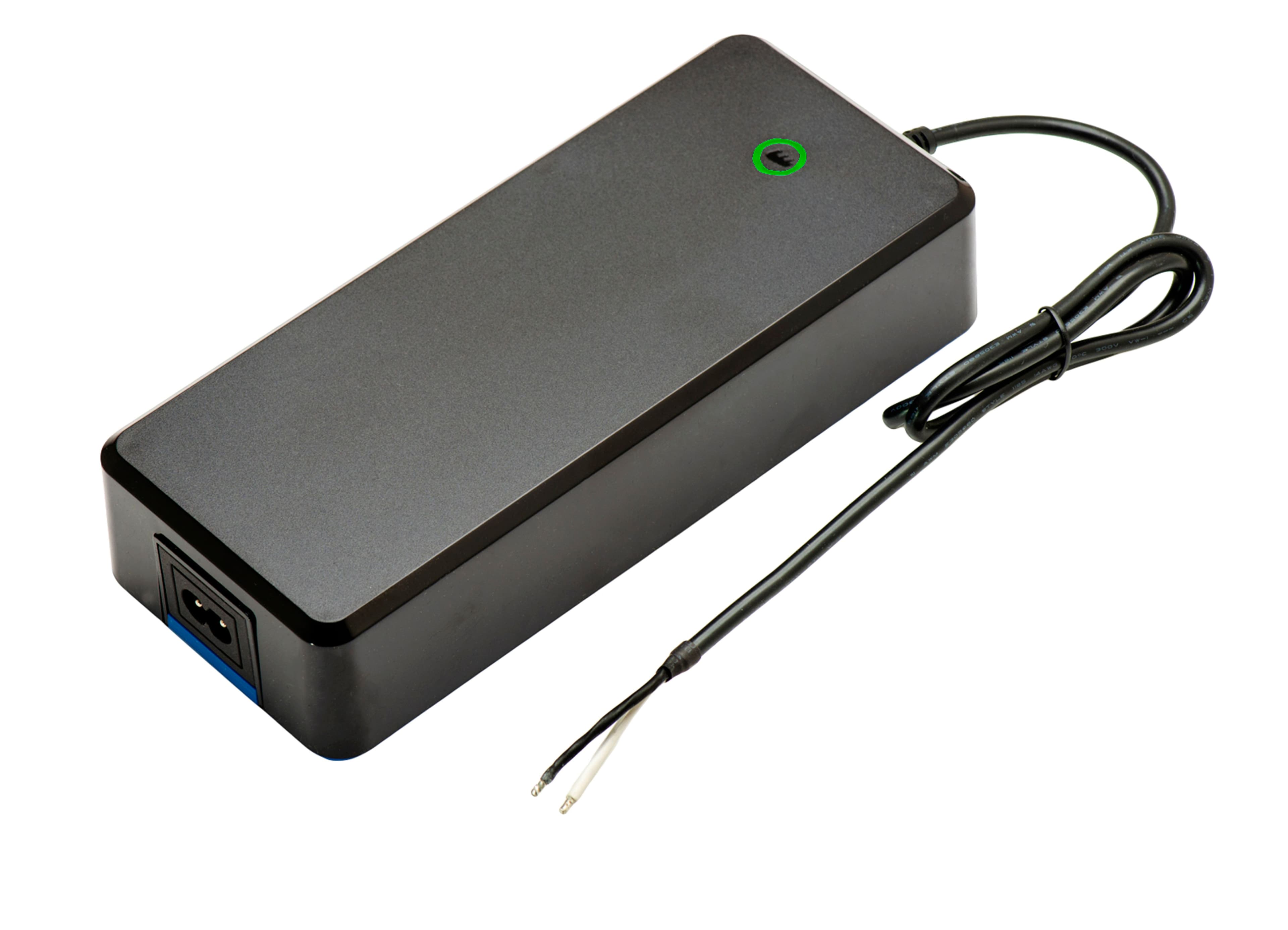

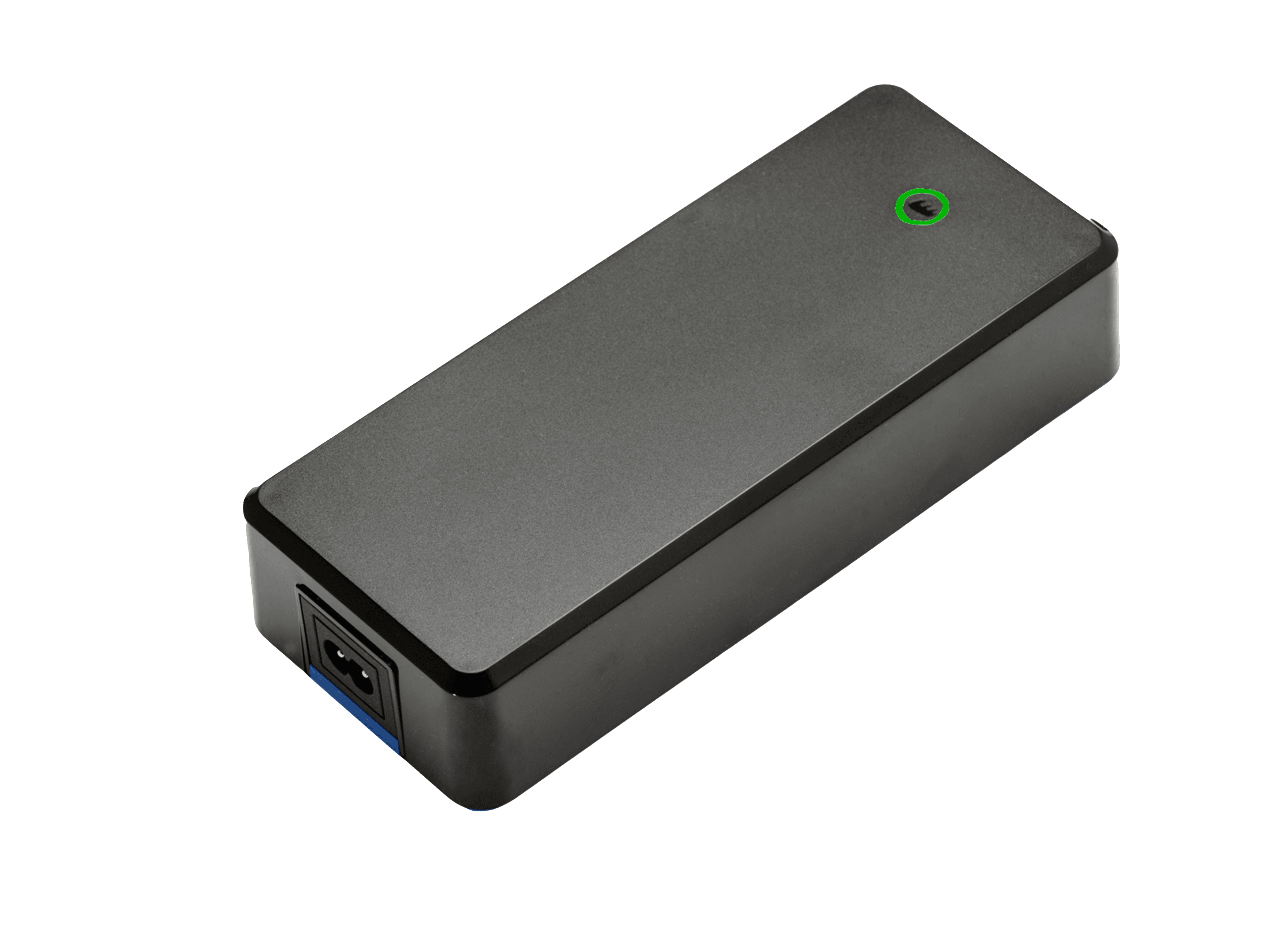

4040 NiMH

Desktop charger NiMH batt. max. 115W

Product Information

Universal input voltage
Configurable (CBC toolkit)
Optimized battery performance and lifetime by:
- Robust -dV sensitivity detection- Low cell temperature at end of fast charge- Top-off charge makes sure all cells are fully charged and balanced- Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells

Approvals

Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1 and 3.2
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4

Custom specifications on request

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.

For more info, see: custom design page

Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings, including: dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold, temperature gradient adjustment. The CBC is also configurable in field.

For more info, see: 4099 CBC module NiMH
