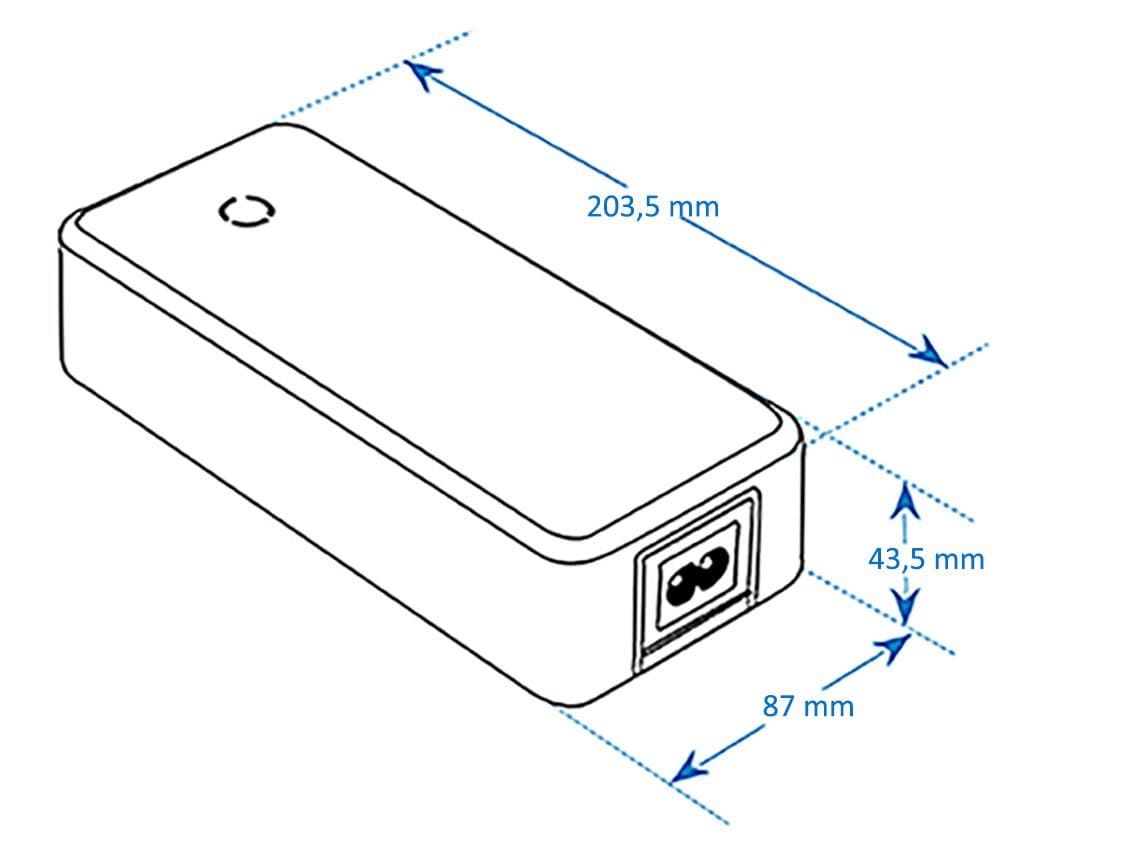

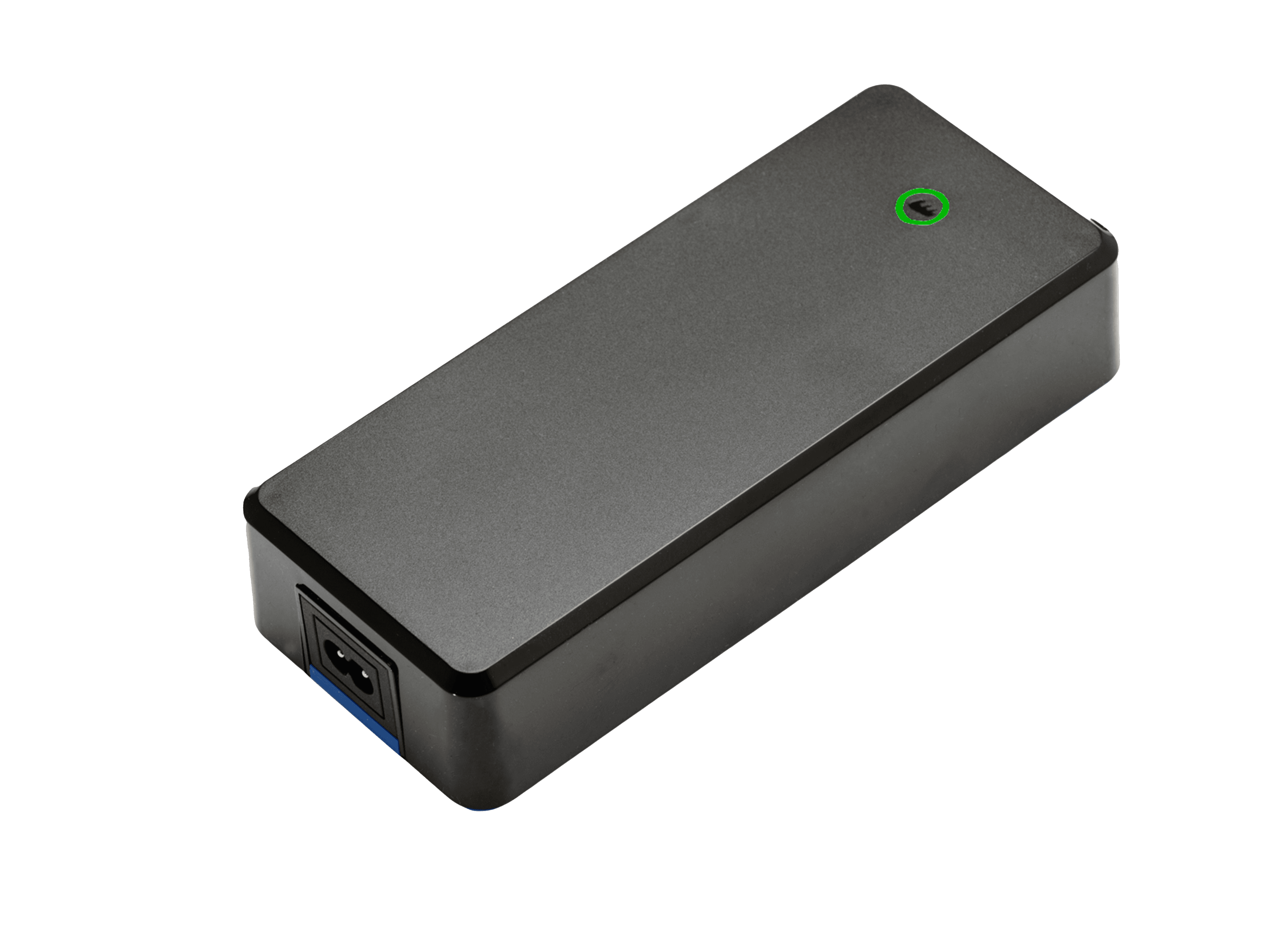

4040 LiFe
Desktop charger LiFe batteries, max. 8 A
Product Information
3-step charge control with current detection
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
2-pin IEC 60320 C, 3-pin C6 on request

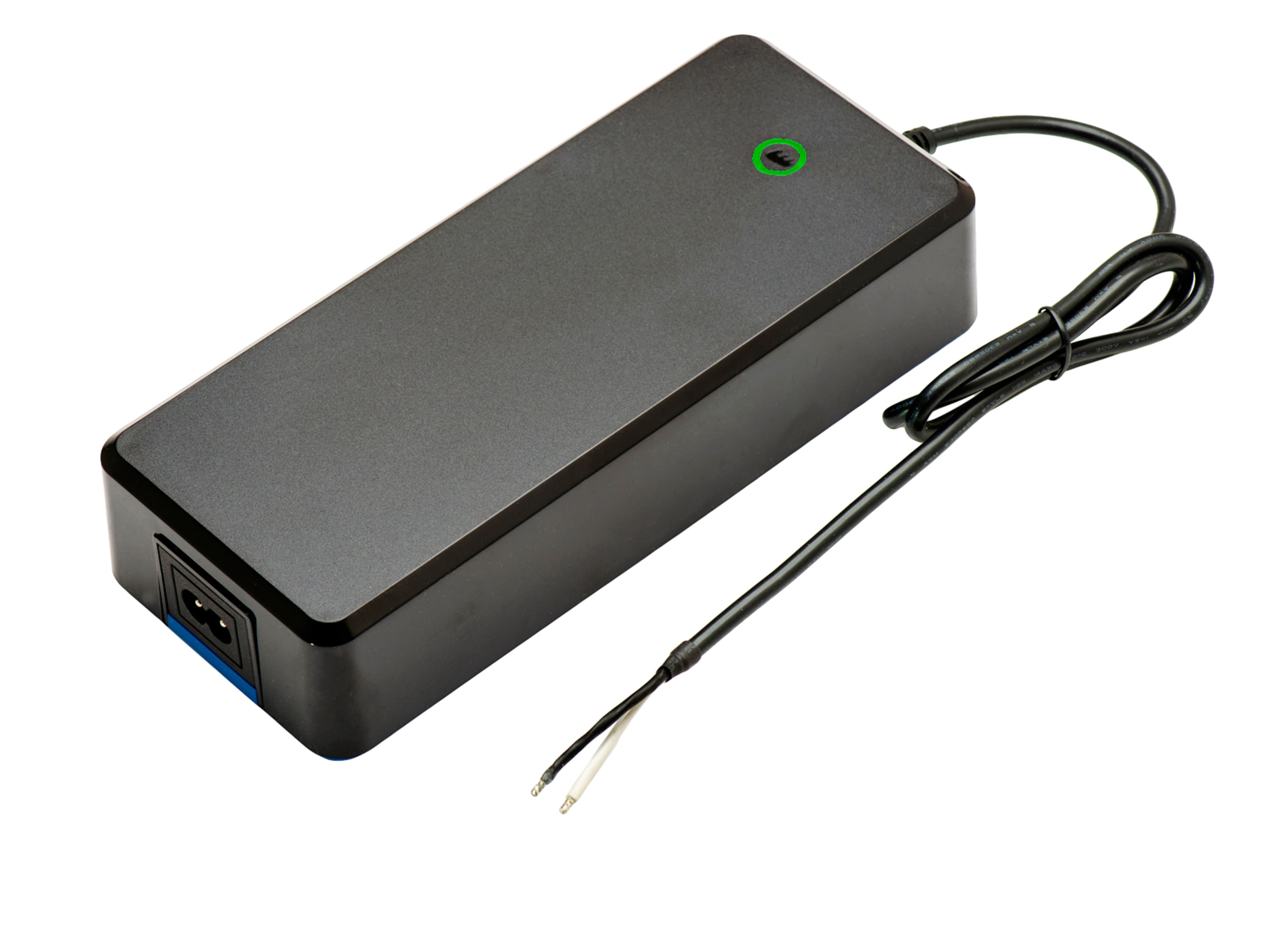

Output terminal: cord w. open ends
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1 and 3.2
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings.
For more info, see: Mascot CBC Module LiFe
Available versions
* On request- 4-cell LiFePO4
- 6-cell LiFePO4
- 8-cell LiFePO4
- 10-cell LiFePO4
- 11-cell LiFePO4 *
- 12-cell LiFePO4
- 13-cell LiFePO4
- 16-cell LiFePO4
Notes
- Desktop unit
- Wall mount bracket available
- With NTC input on request
- 2MOOP standard, 2MOPP available
- Standard DC cordset: open ends, 0.75m Coax 14AWG, Black PVC, UL1185
- Animation showing charge error indications:
- https://vimeo.com/679995332

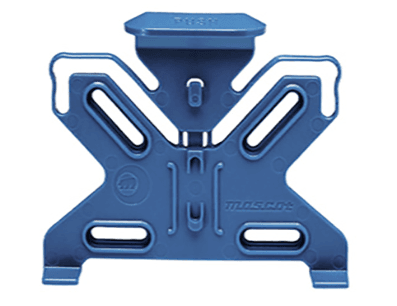

Wall Mount Bracket 172003

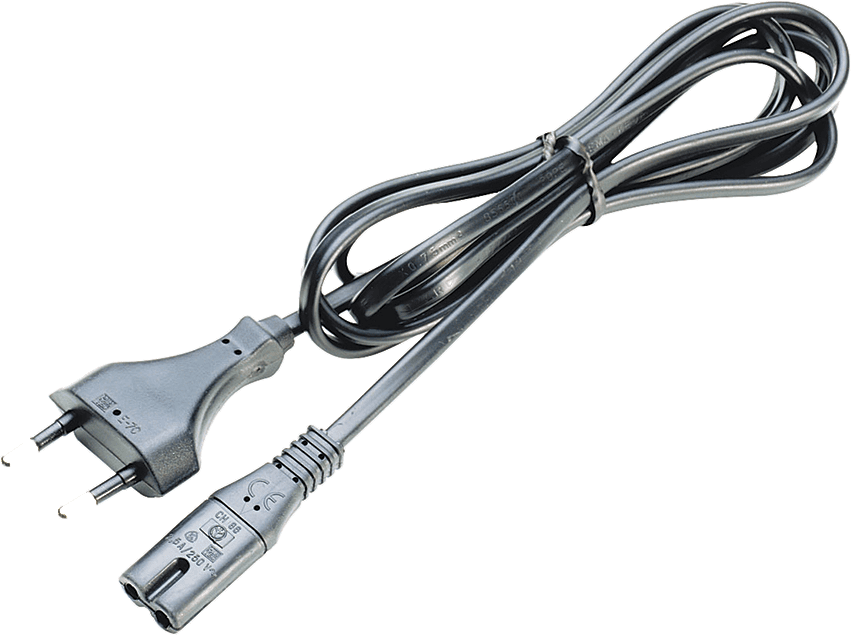

AC Cord 2-pin IEC 60320 EU

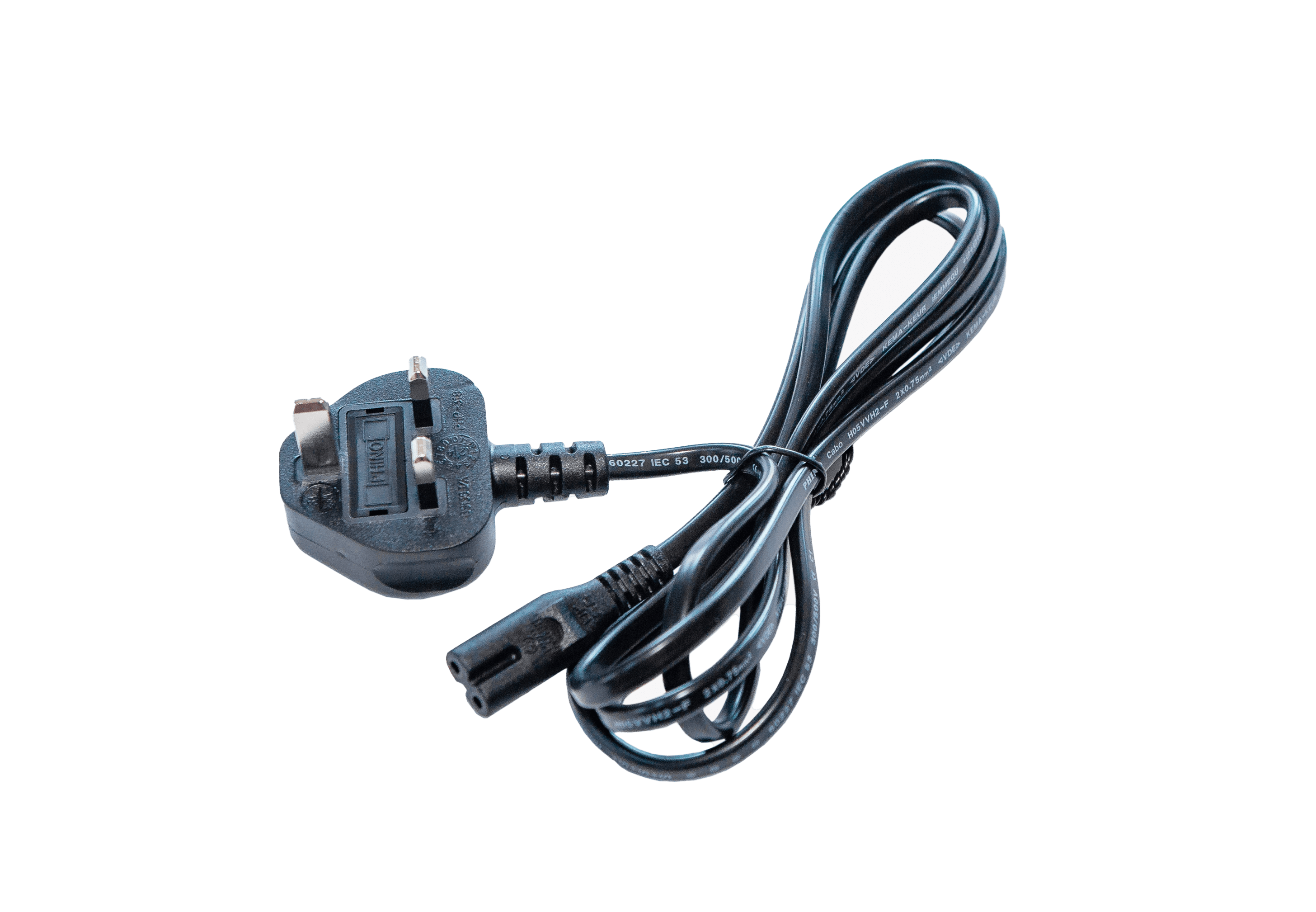

AC Cord 2-pin IEC 60320 UK

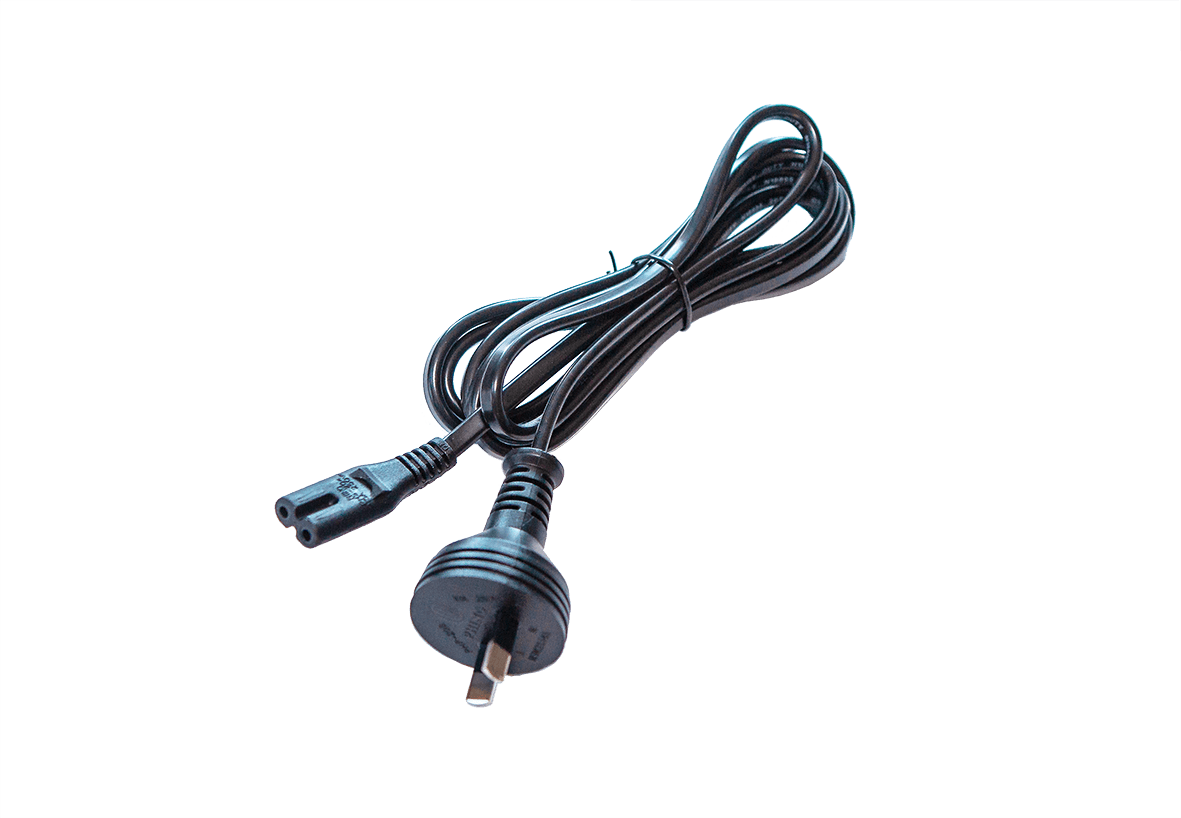

AC Cord 2-pin IEC 60320 AUS

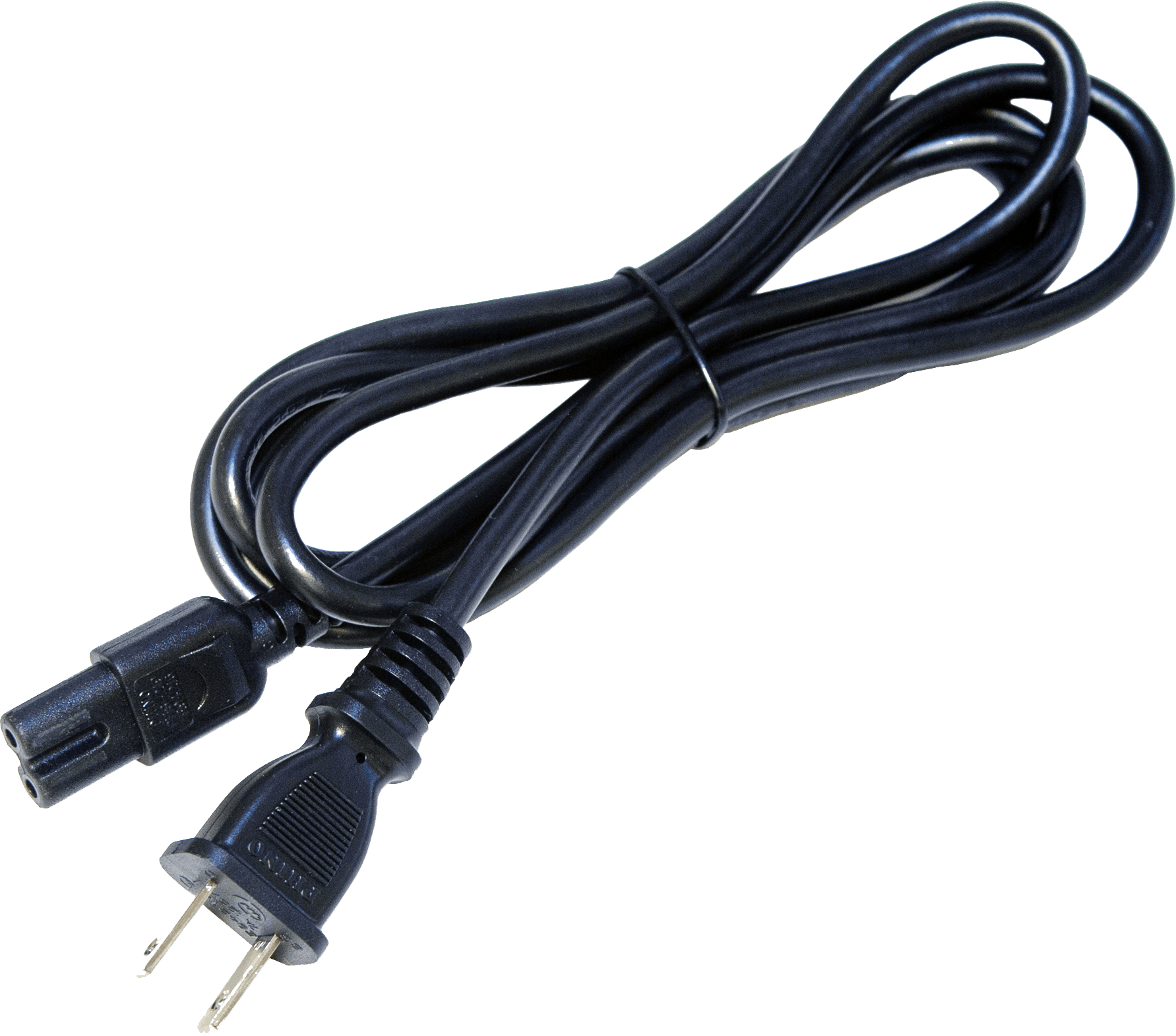

AC Cord 2-pin IEC 60320 US_
AC Cord 3-pin IEC 60320 AUS
AC Cord 3-pin IEC 60320 EU
AC Cord 3-pin IEC 60320 US
