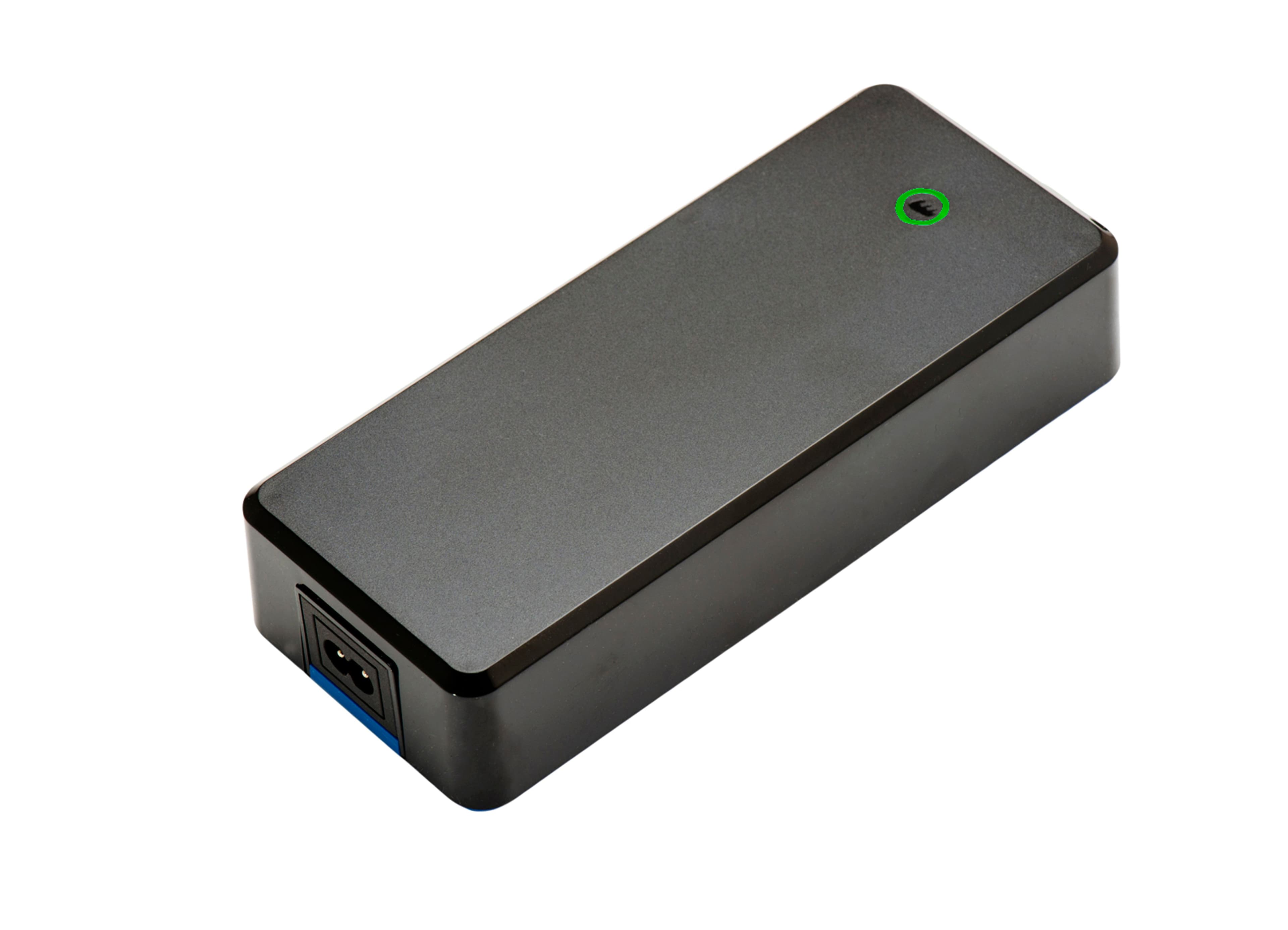

4040 LA
Desktop charger Lead Acid batt. max. 8 A
Product Information
3-step charge control with current detection and timer
Universal input voltage 90-264 VAC
2-pin IEC 60320 C8, 3-pin C6 on request

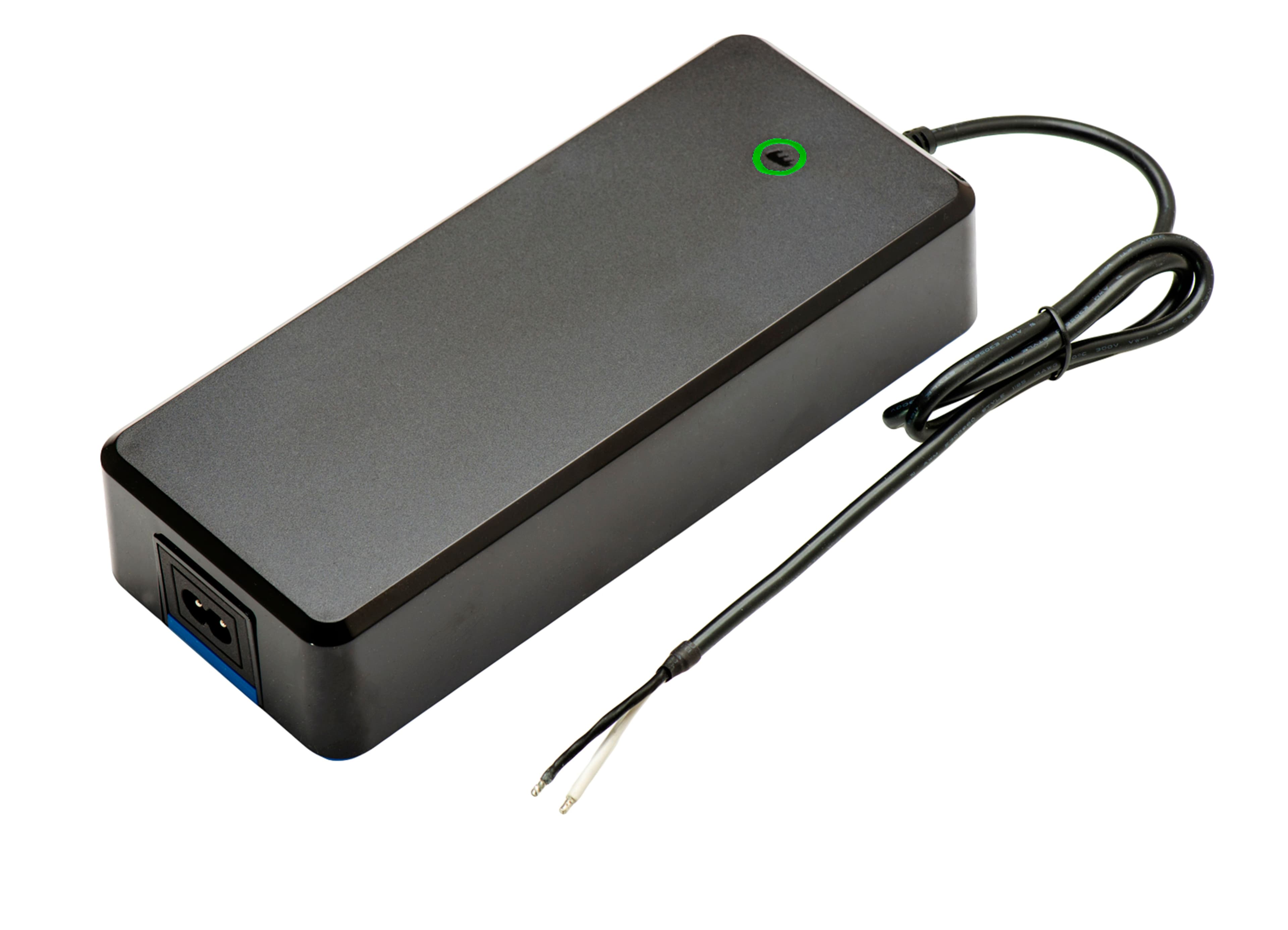

Output terminal: Battery clips, DC conn., push-on terminals or open ends
Temp. compensation of charge voltage
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Active power factor correction
Approvals
Medically certified
Safety: EN 60601-1 ed. 3.1 and ed. 3.2
Home healthcare EN 60601-1-11
EMC: EN 60601-1-2 ed. 4
UL approved
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information: custom design info sheet
Notes
- Desktop unit
- Wall mount bracket available
- With active power factor correction
- 2MOOP standard, 2MOPP available
- Wall mount bracket available

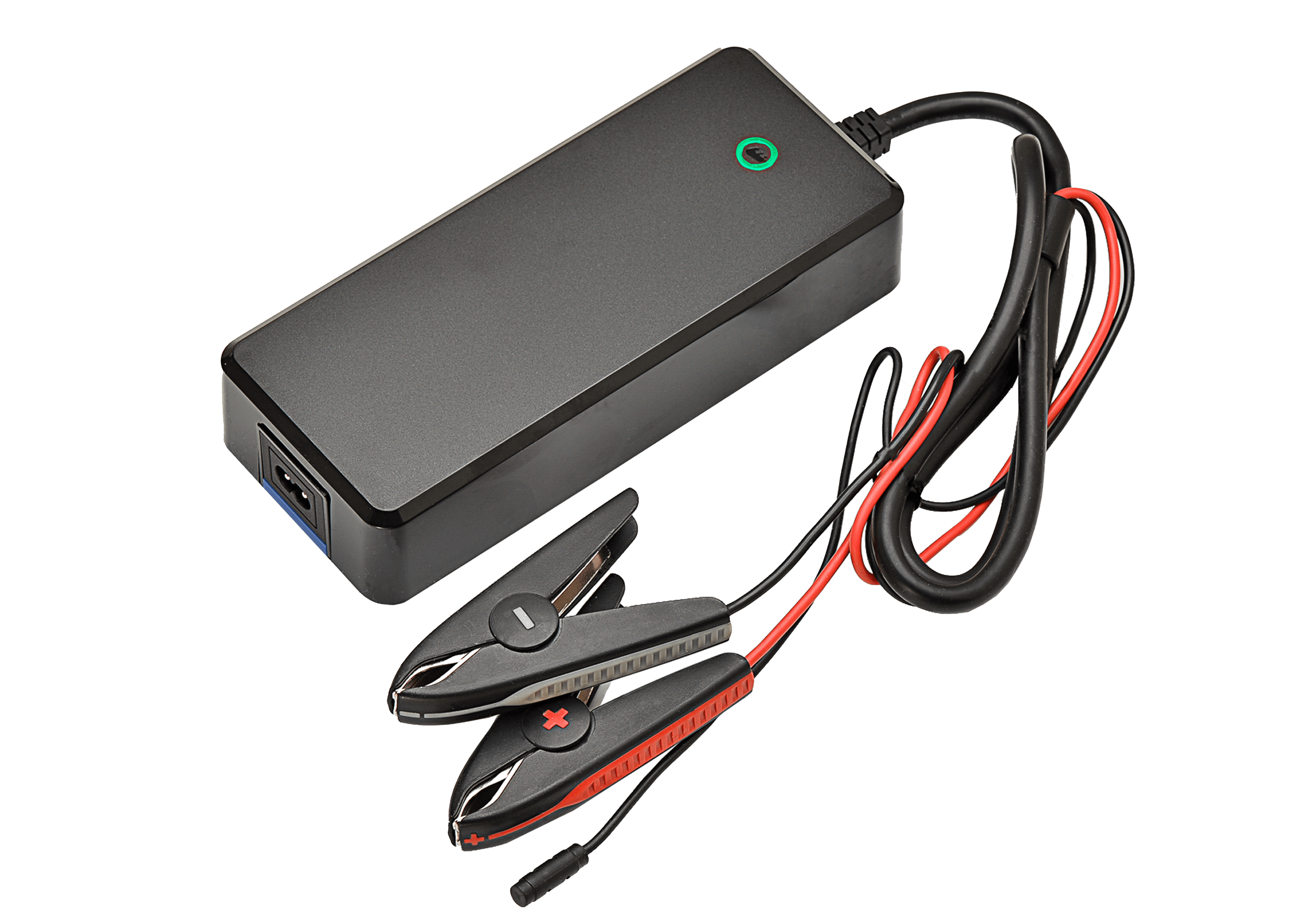

- With battery clips and temp sensor
- Std output cord: L 1.2m, AWG 14, UL 2464
Accessories

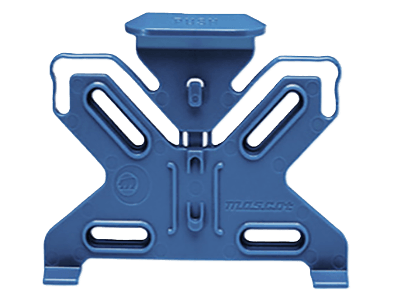

Wall Mount Bracket 172003
AC Cord 2-pin IEC 60320 EU
AC Cord 2-pin IEC 60320 UK
AC Cord 2-pin IEC 60320 AUS
AC Cord 2-pin IEC 60320 US_
AC Cord 3-pin IEC 60320 AUS
AC Cord 3-pin IEC 60320 EU
AC Cord 3-pin IEC 60320 US
AC Cord 3-pin IEC 60320 UK

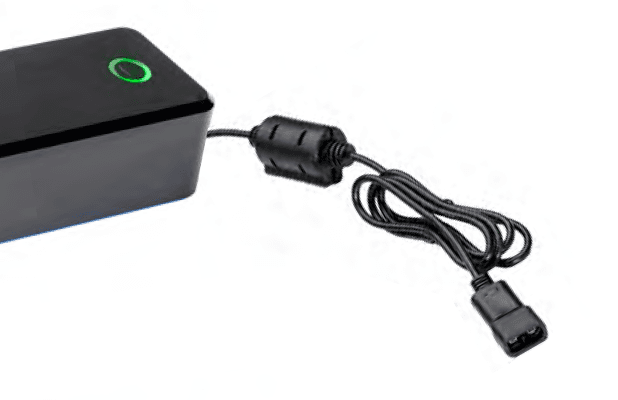

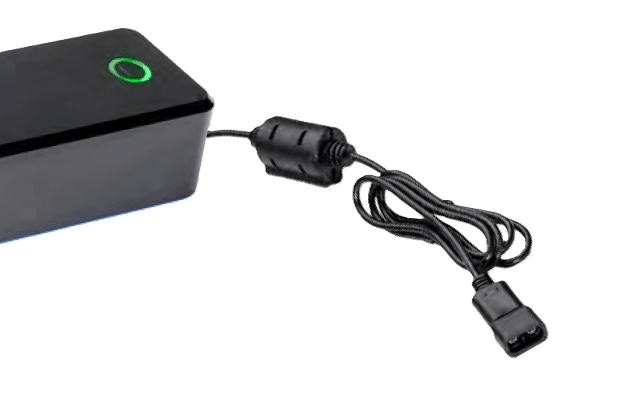

Exch DC Cable Conn Cord from charger 131685

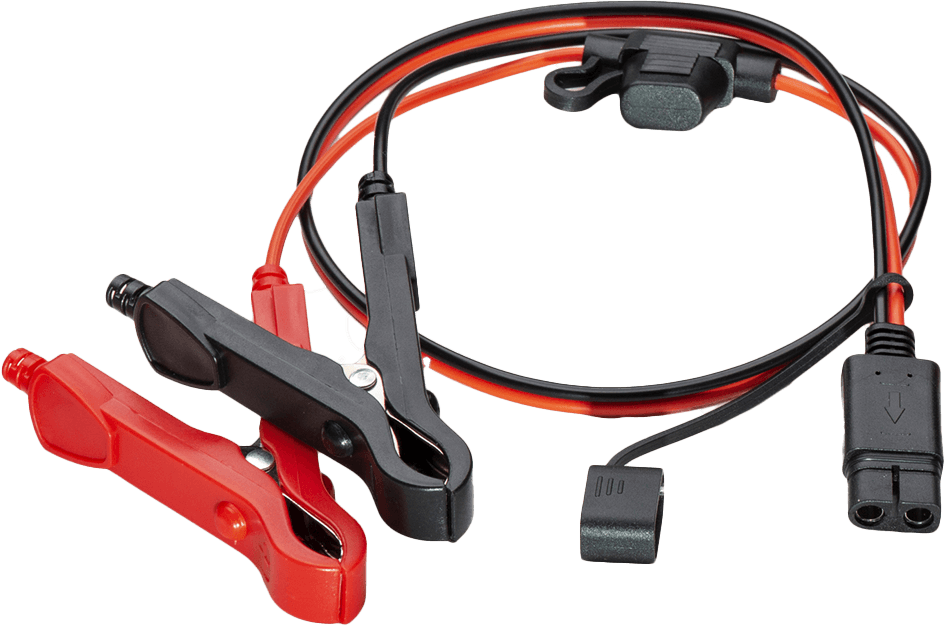

Exch DC Cable Conn Cord to battery 131686
