Charge guide Li-Ion method D
3745 LI

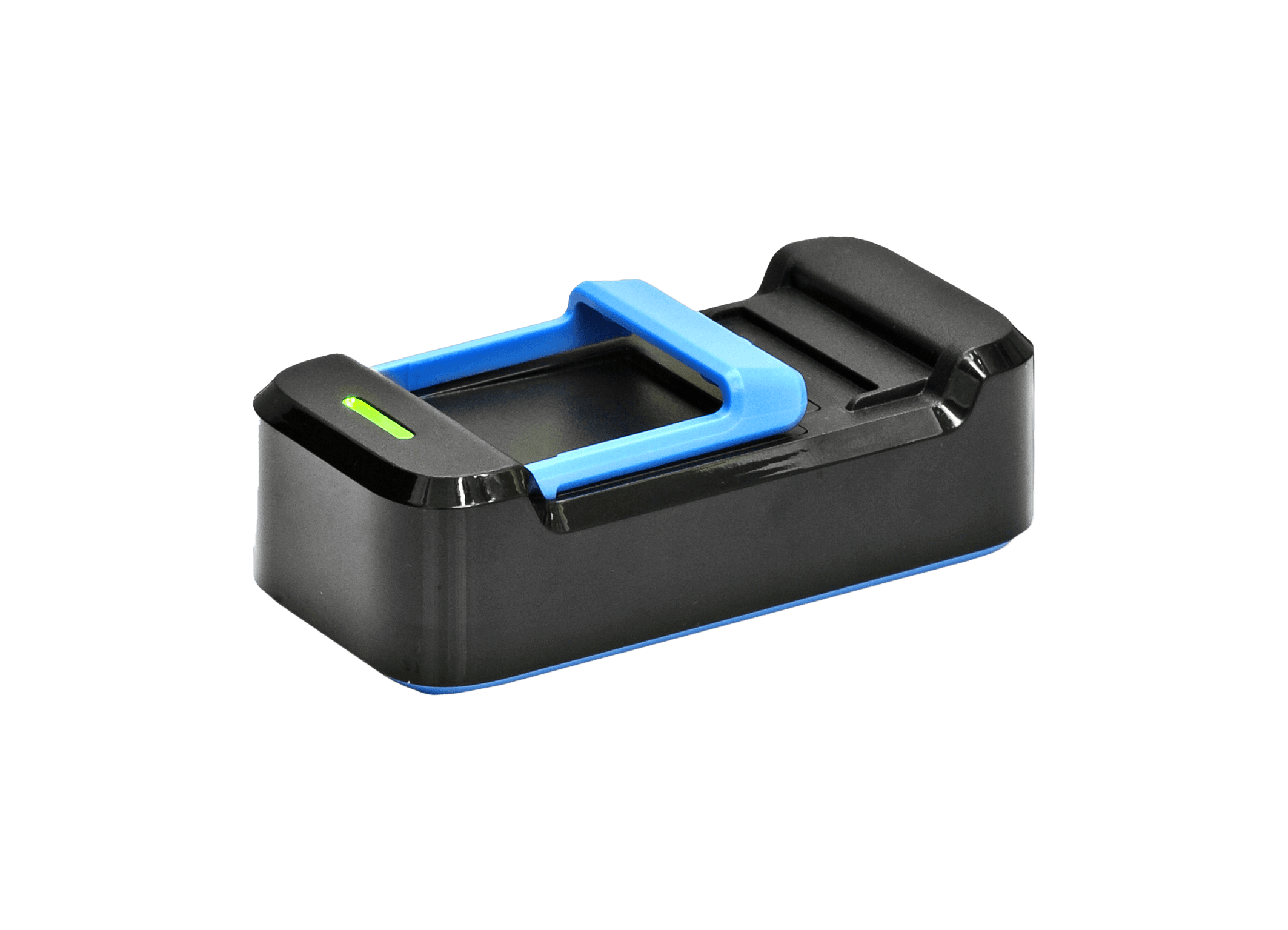

Desktop charger Li-Ion batt. max. 1,5A
Product Information
For charging VARTA Li-Ion EasyPack batteries
3-step adaptive charge control
Charge adapts to battery pack type, which is automatically identified
Universal input voltage (90-264 VAC)
Automatic battery temperature monitoring and thermal control to prevent charge of cold/warm batteries
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Approvals
Medically certified
Safety: EN 60601-1 ed. 3.1
Home healthcare EN 60601-1-11
EMC: EN 60601-1-2 ed. 4
UL approved
Custom specifications on request
Notes

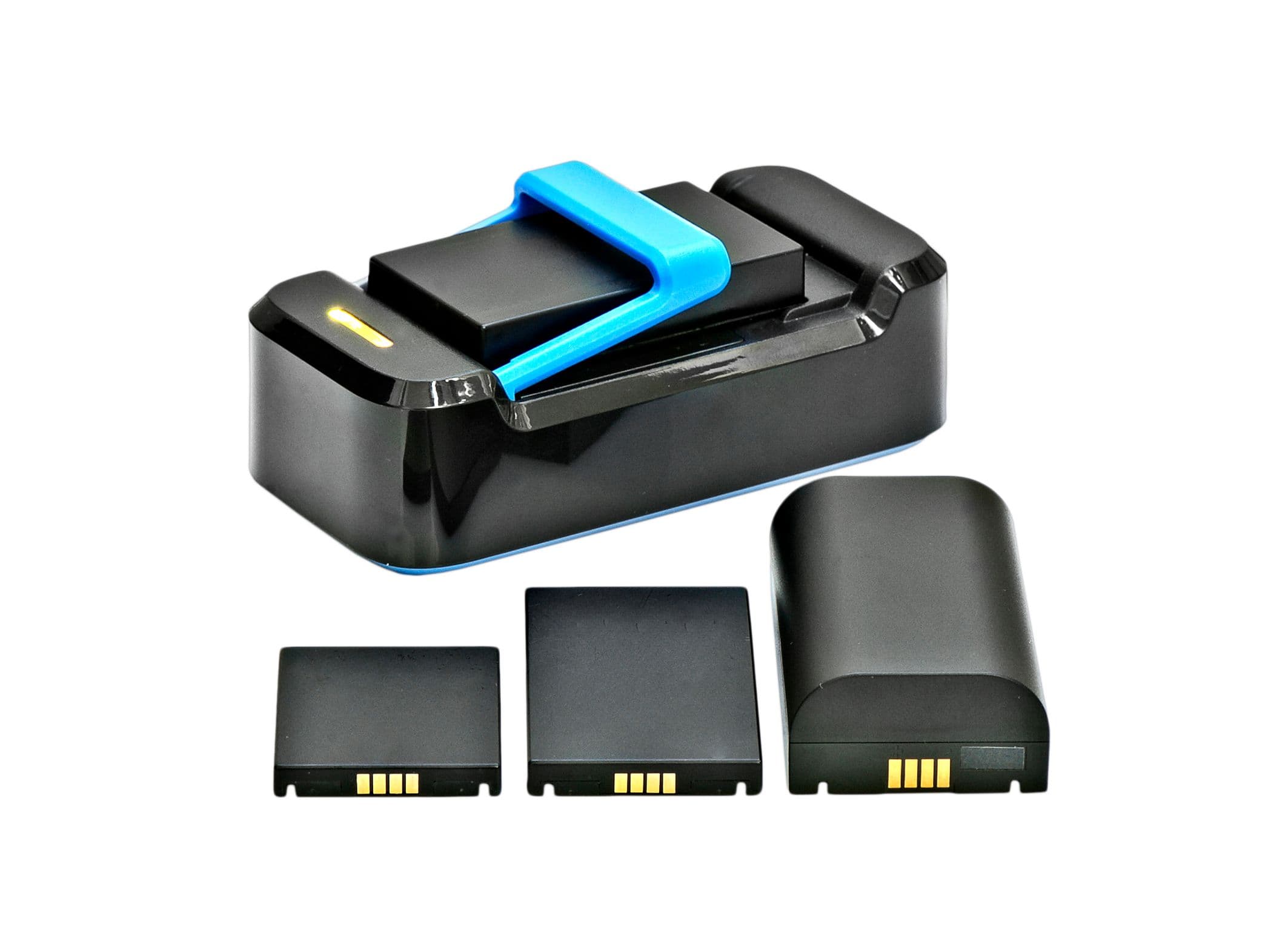

- Charger for VARTA EasyPack Li-Ion batteries
- EasyPack S, EasyPack L, EasyPack XL and EasyPack PLUS
- Link to VARTA website-information:
- CELLPAC LITE | VARTA AG (varta-ag.com)
- Link to video showing the assembly and features of the 3745: https://vimeo.com/656025437
