3743 NiMH

Plug-in charger NiMH max. 1,3A

Product Information

Universal input voltage
Configurable (CBC toolkit)
Optimized battery performance and lifetime by:
- Robust -dV sensitivity detection- Low cell temperature at end of fast charge- Top-off charge ensures all cells are fully charged and balanced- Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells

Approvals

Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4

Custom specifications on request

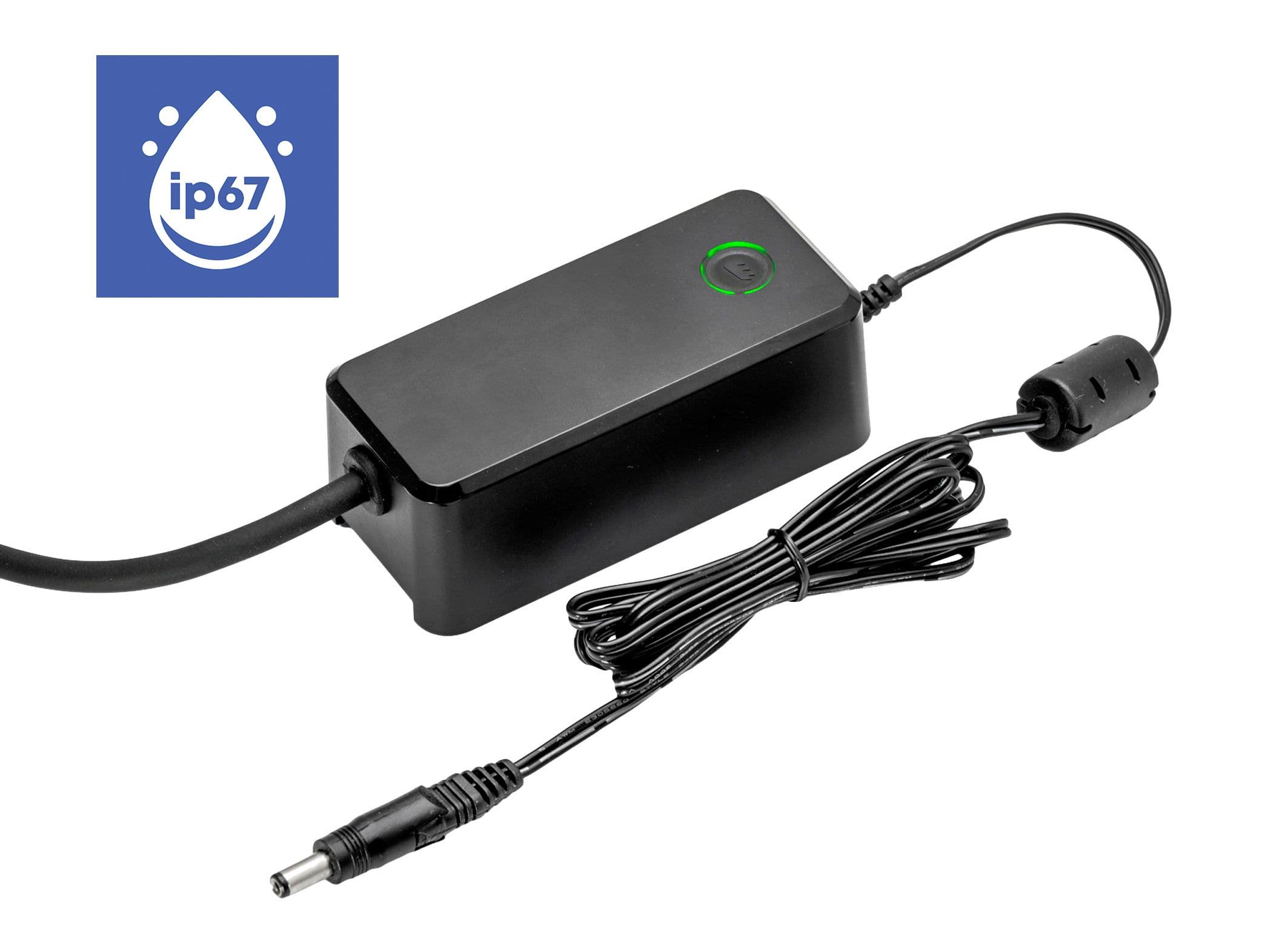

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.

For more info, see: custom design page

Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings, including:
dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold, temperature gradient adjustment.
The CBC is also configurable in field.

For more info, see: 4099 CBC module NiMH

Request Quote

Available versions

2-cell
3-6 cell
4-8 cell
5-10 cell
6-12 cell
10-20 cell
15-30 cell

Request Custom

Downloads

Tech Spec

Declaration of Conformity

Charger diagram

User Manuals

Notes

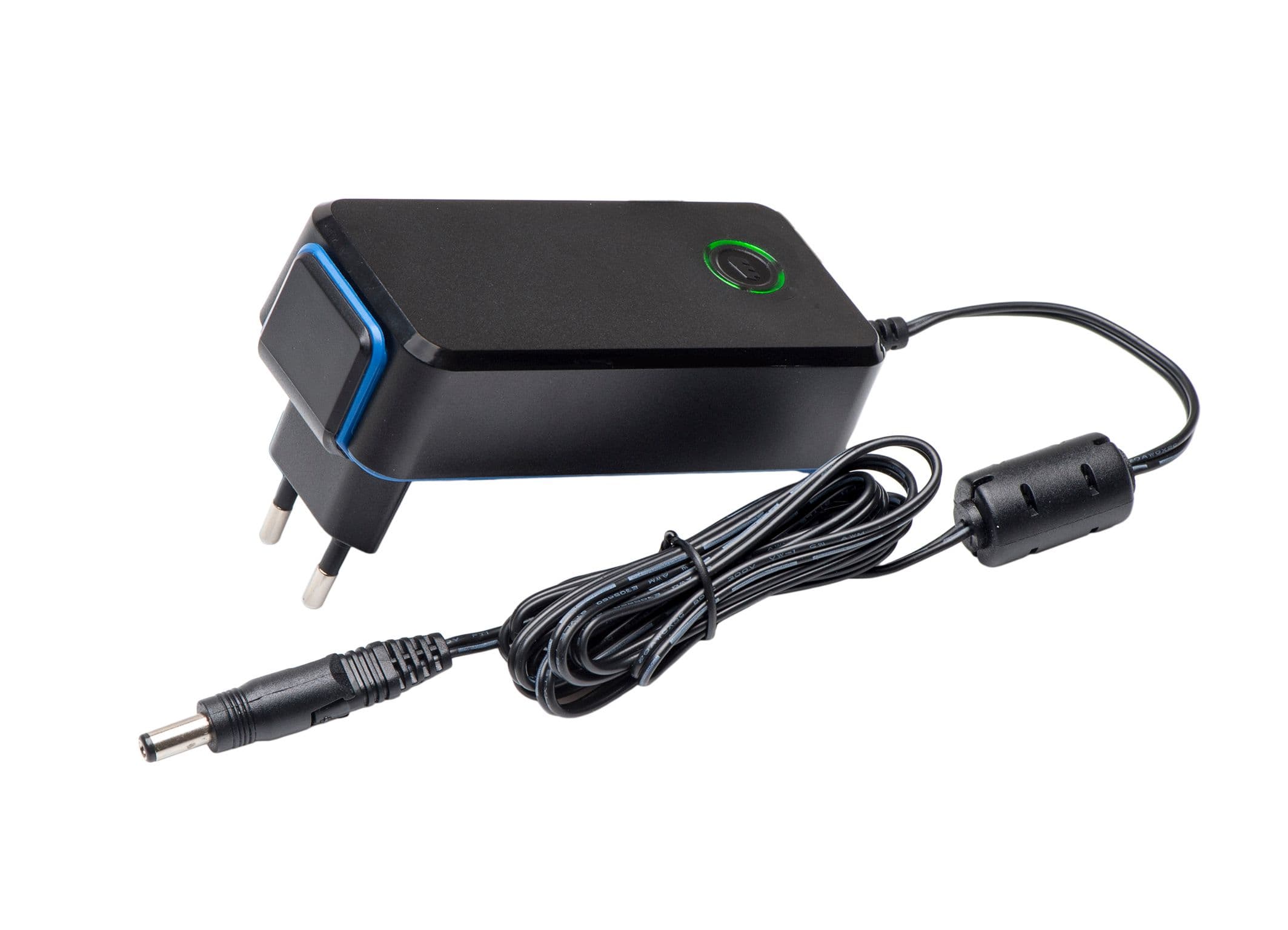

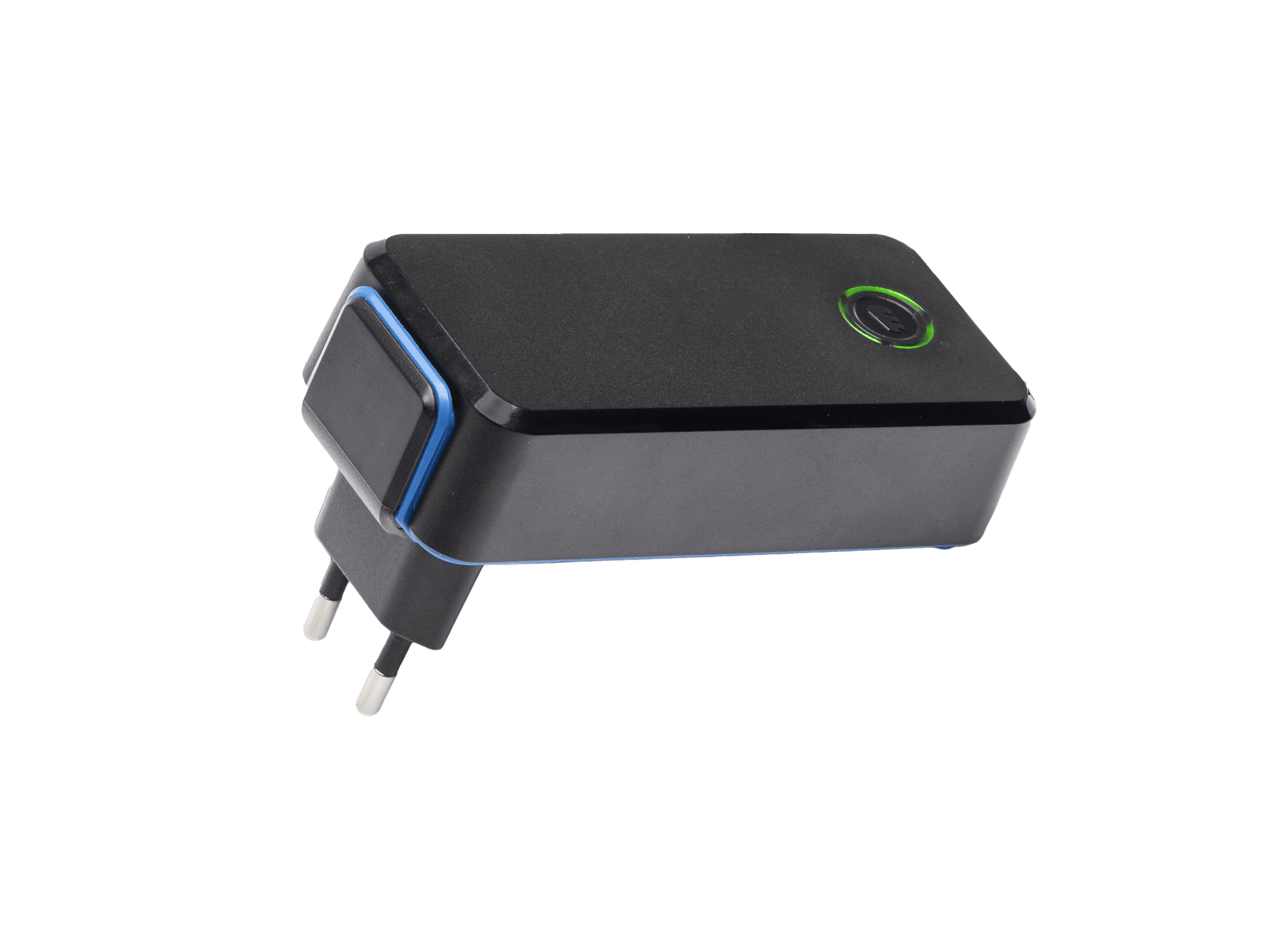

Plug-in/desktop unit

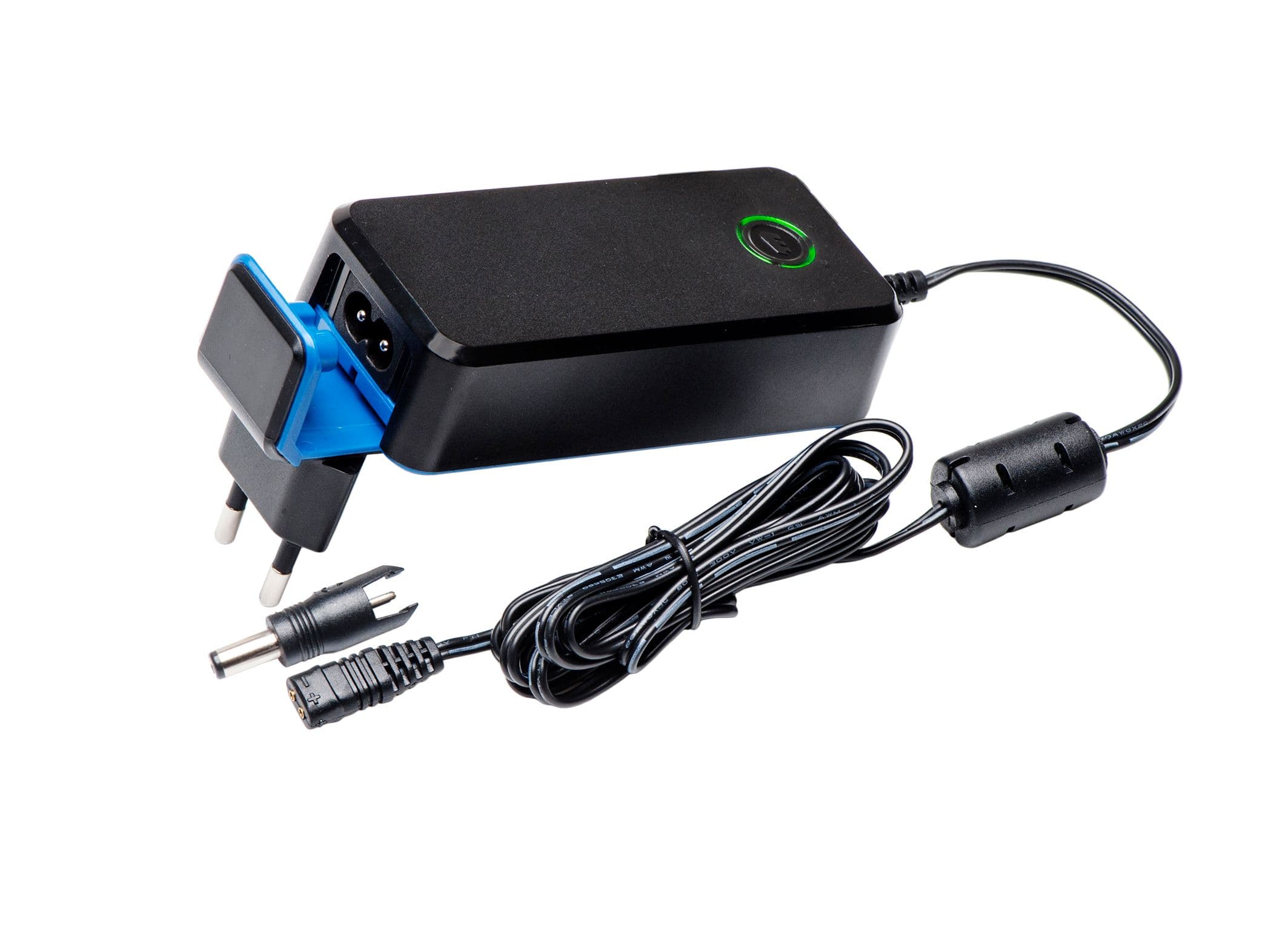

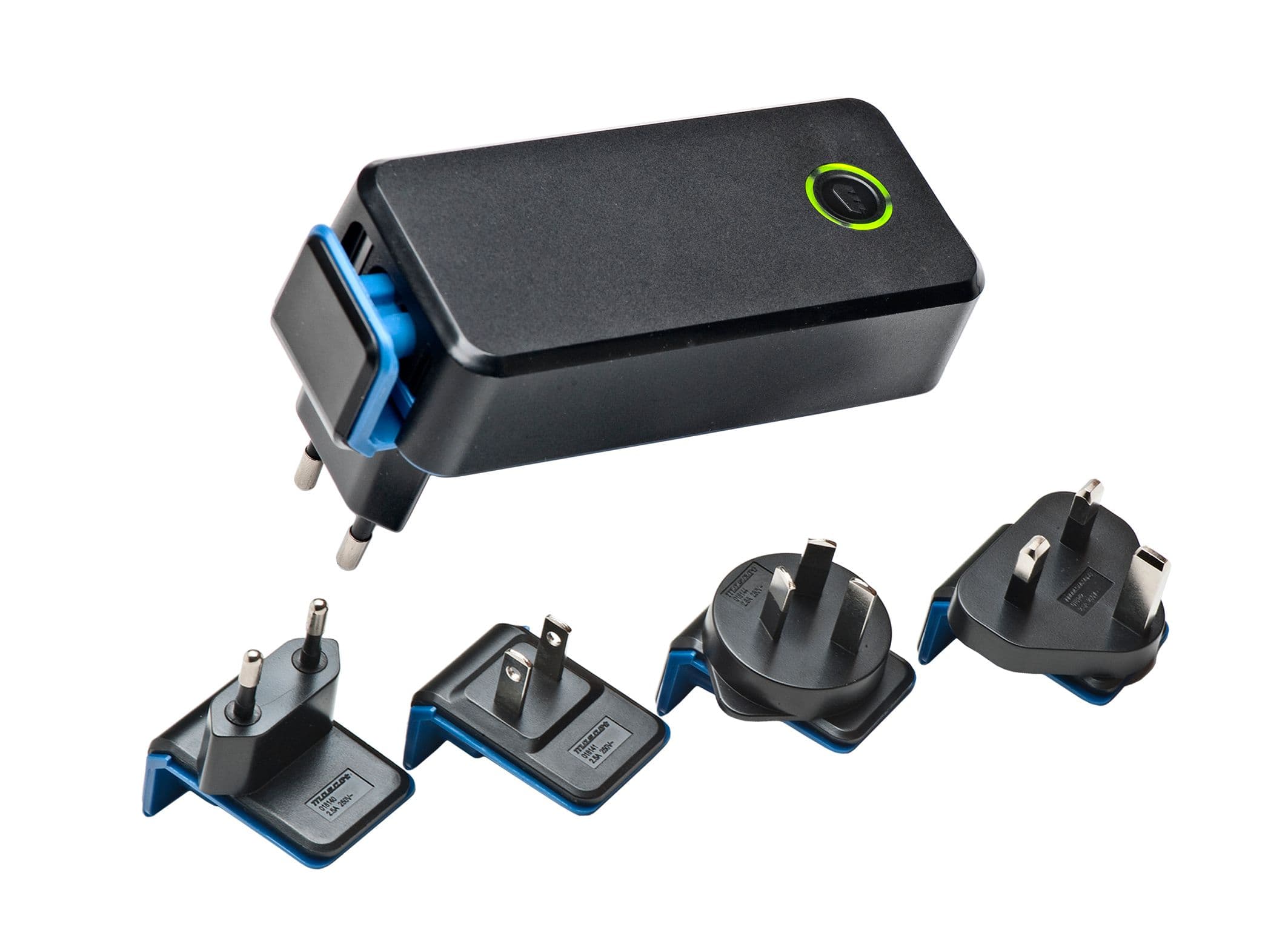

Exchangeable AC and DC plugs available
Standard DC output cord for exch. Plugs (2 cells) 1,2m 2x18AWG, Black Twin cable, UL2468
Standard DC output cord for exch. Plugs (3-20 cells) 1.8m twin 20AWG, EMI Core, UL2468
Mounting bracket available
Order plugs and mains cord separately
Animation showing charge error indications:
https://vimeo.com/679995332
