3546 LiFe

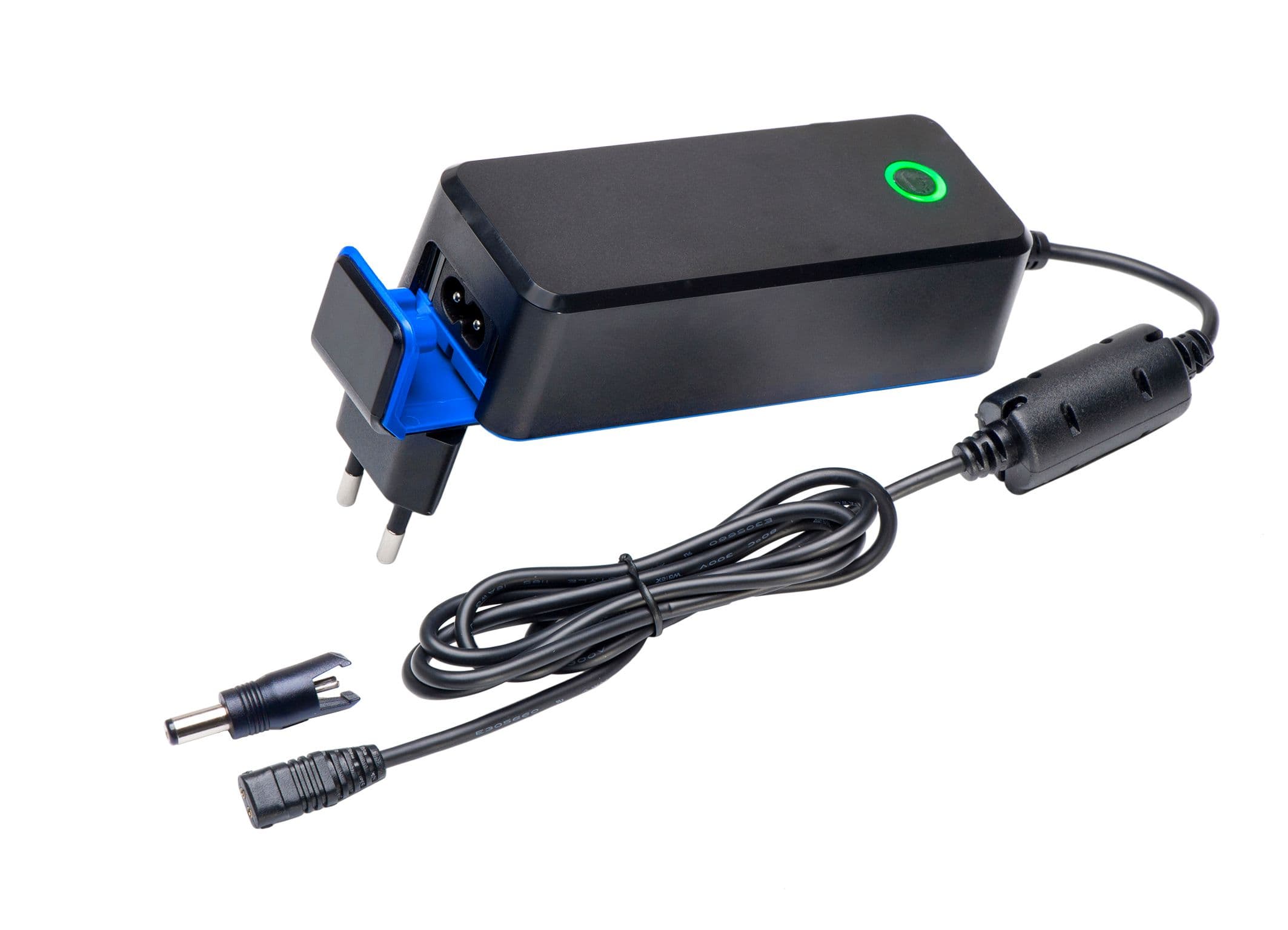

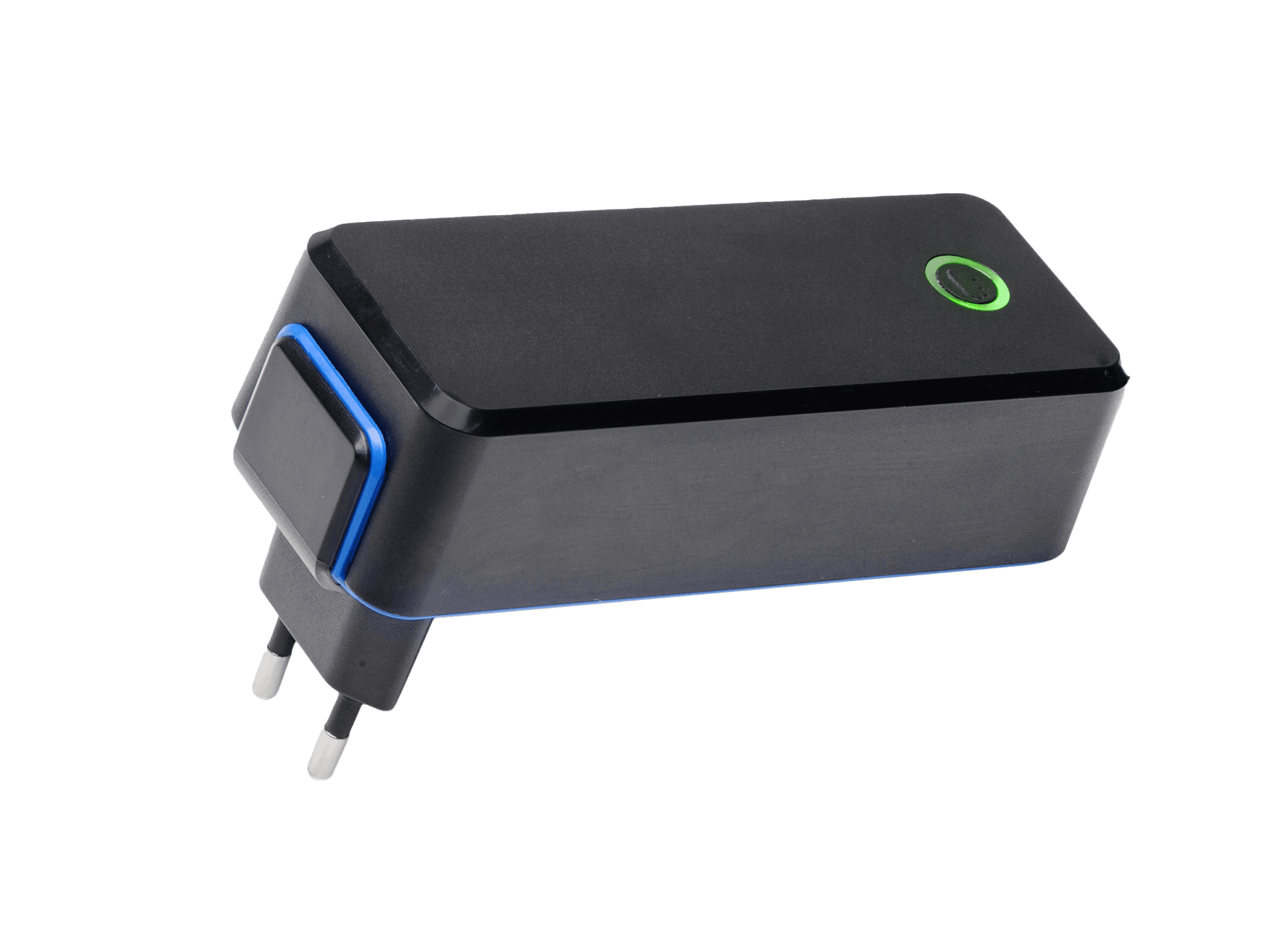

Plug-in charger LiFePO4 batteries max. 2A

Product Information

3-step charge control with current detection
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: Against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out

Approvals

Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
• Household safety, EN 60335-1 & -2-29
EMC:
• EN 60601-1-2 ed. 4

Custom specifications on request

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.

For more info, see: custom design page

Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings.
For more info, see: Mascot CBC Module LiFe

Request Quote

Available versions

4c LiFePO4
8c LiFePO4

Request Custom

Downloads

Tech Spec

Declaration of Conformity

Charger diagram

User Manual

Notes

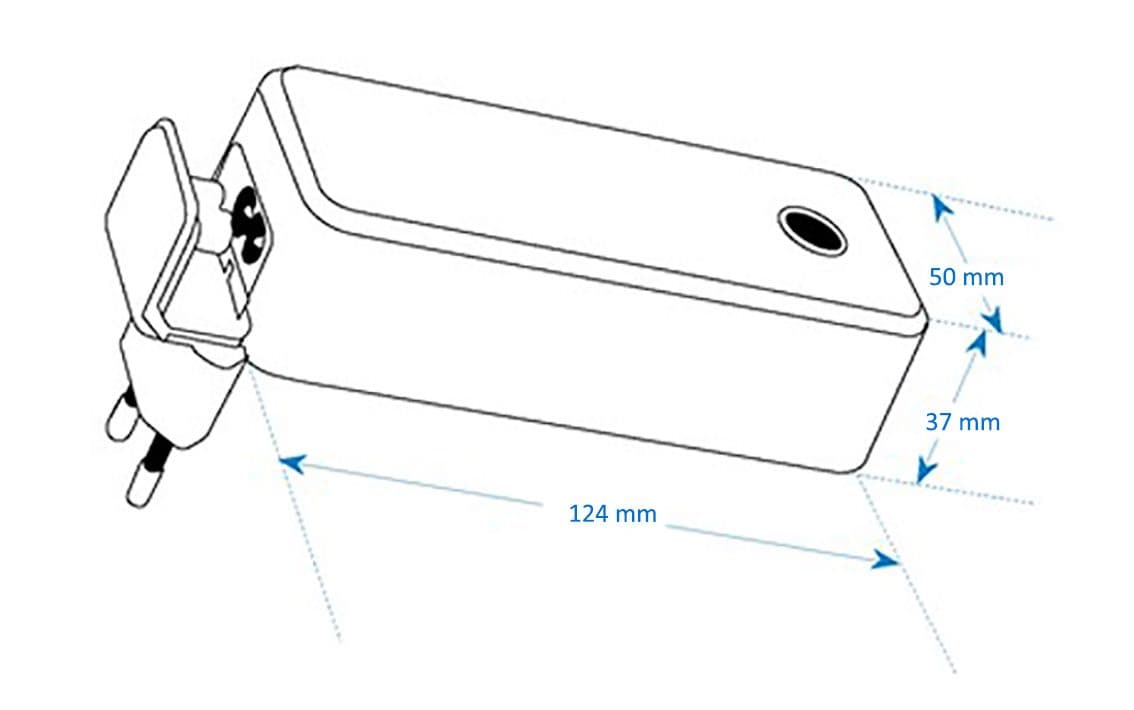

Plug-in/Desktop unit

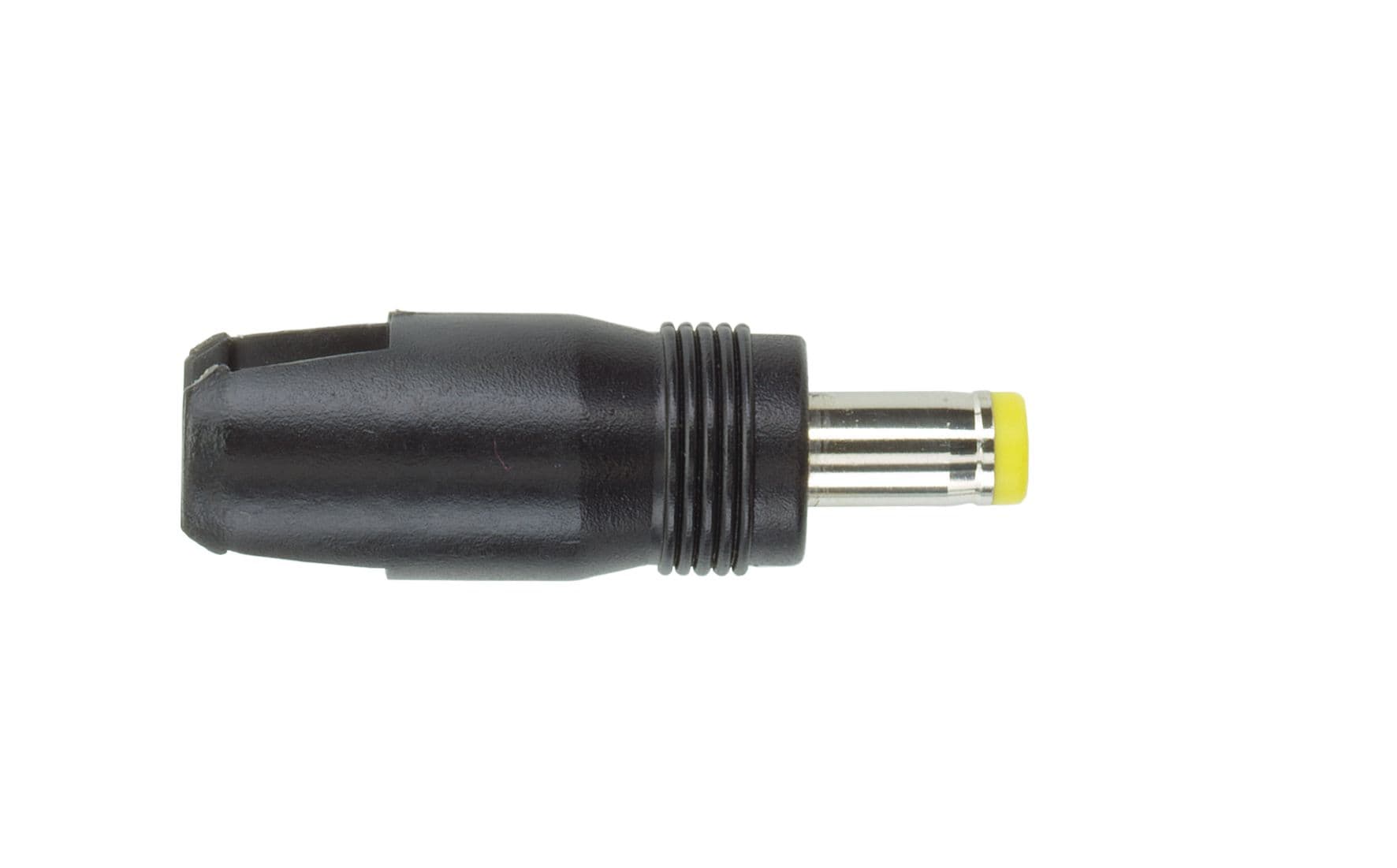

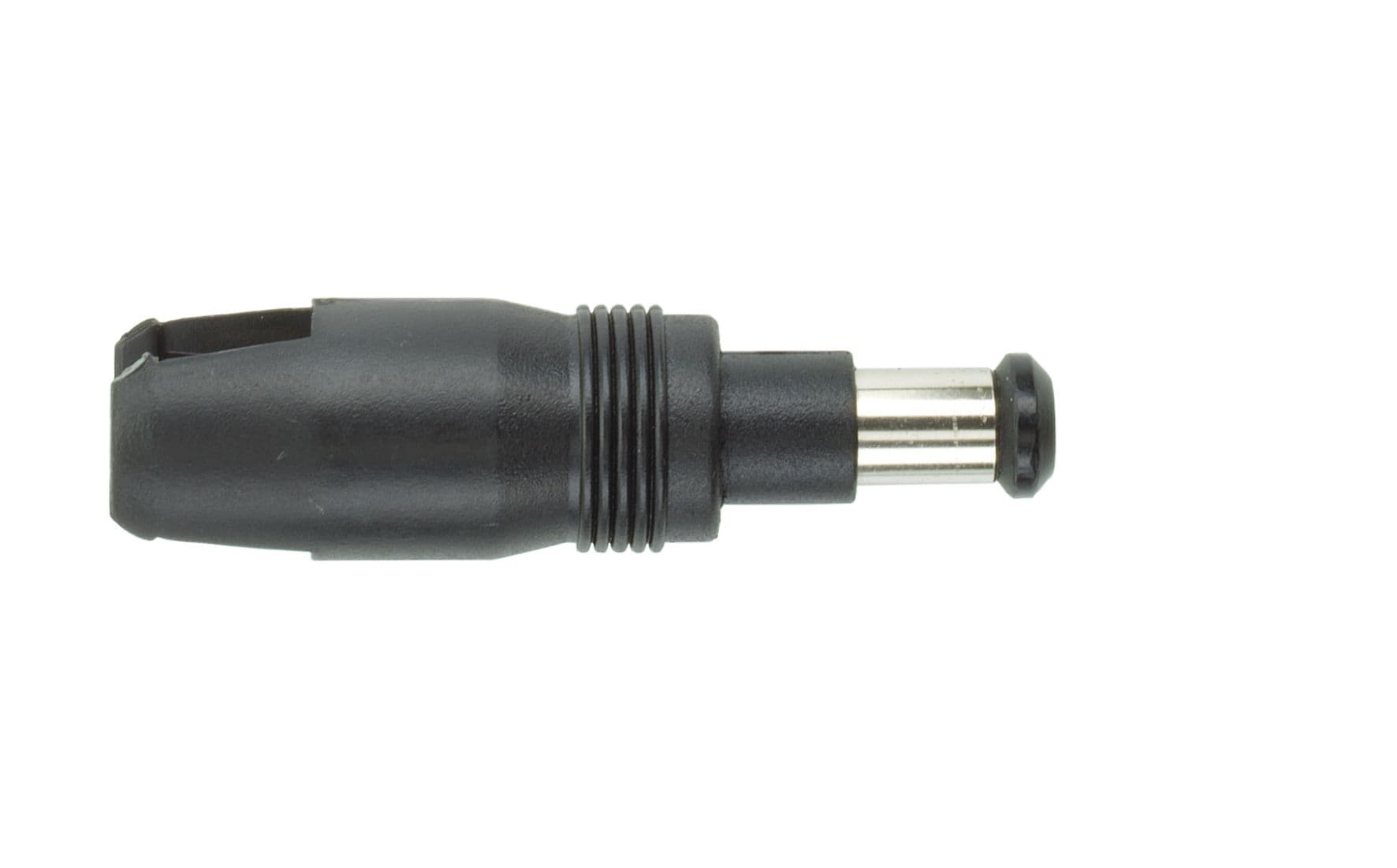

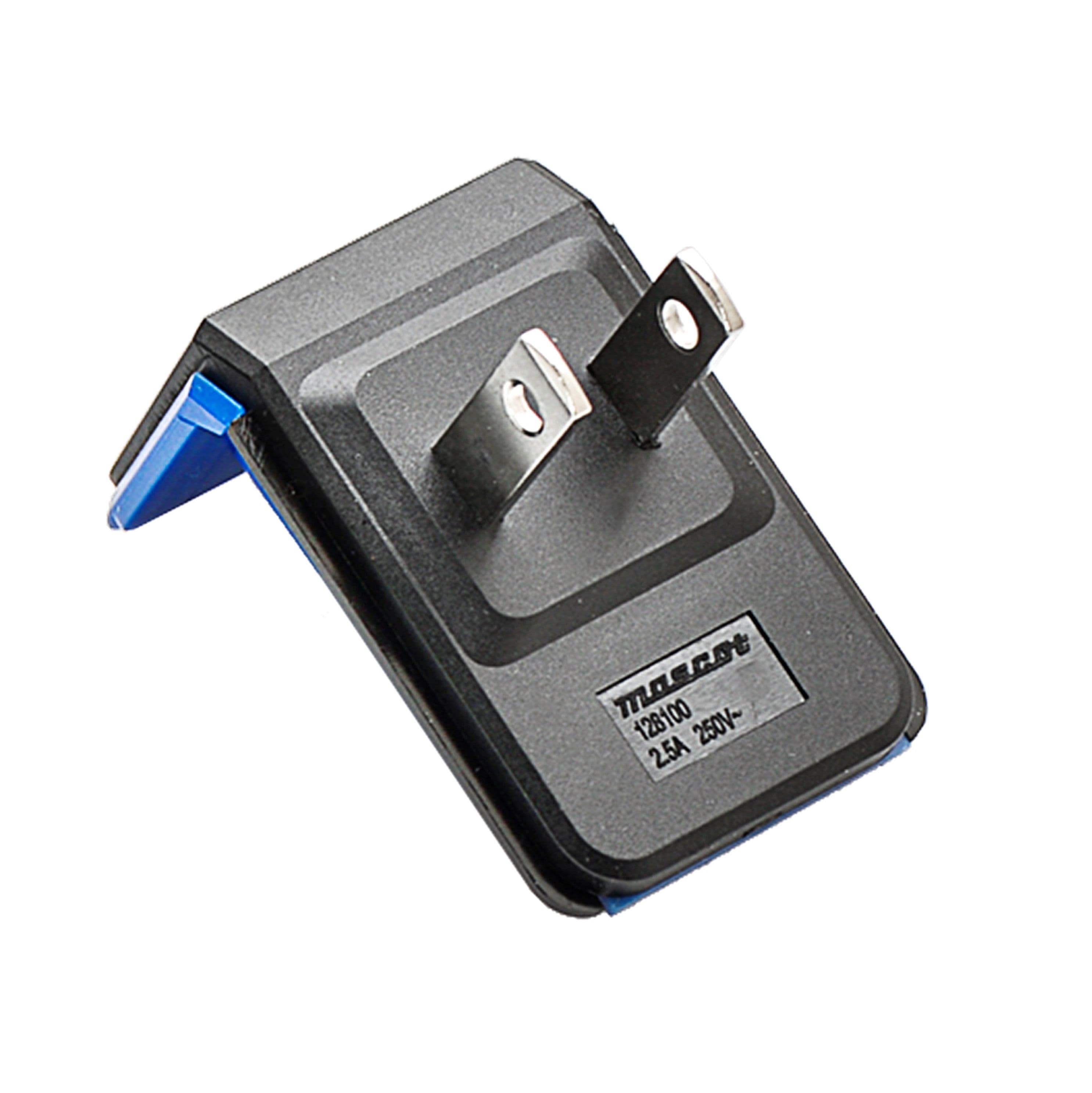

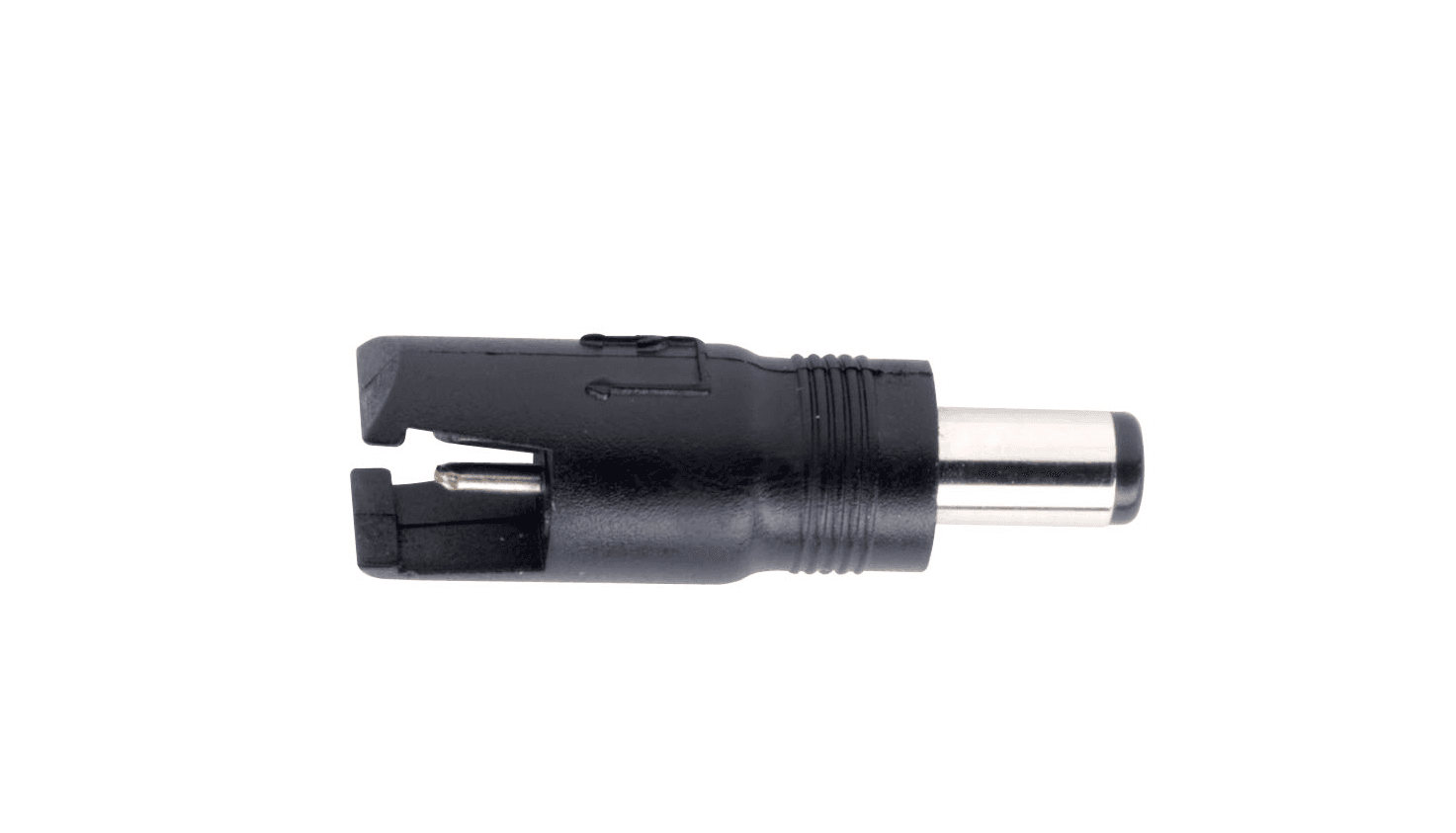

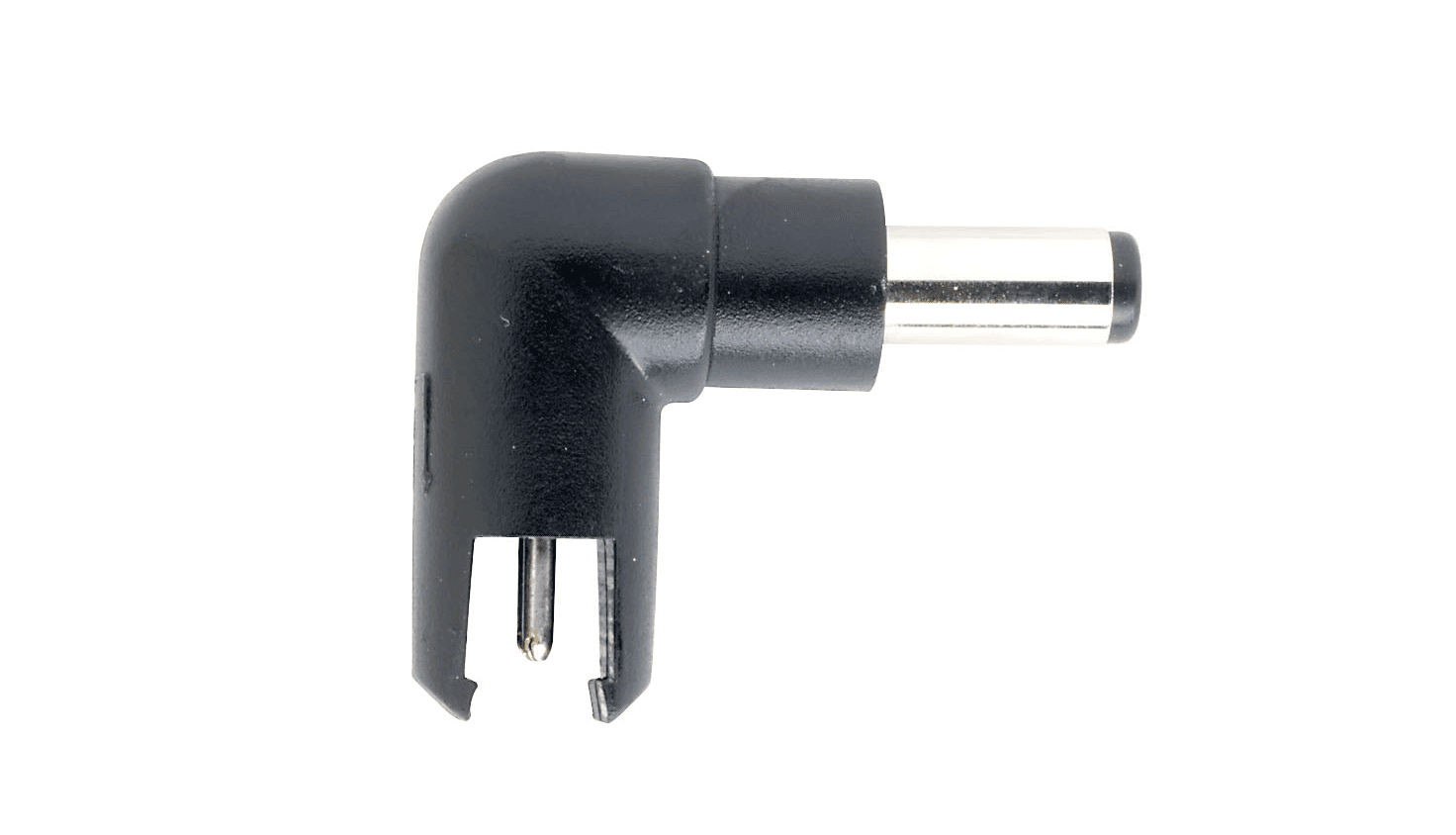

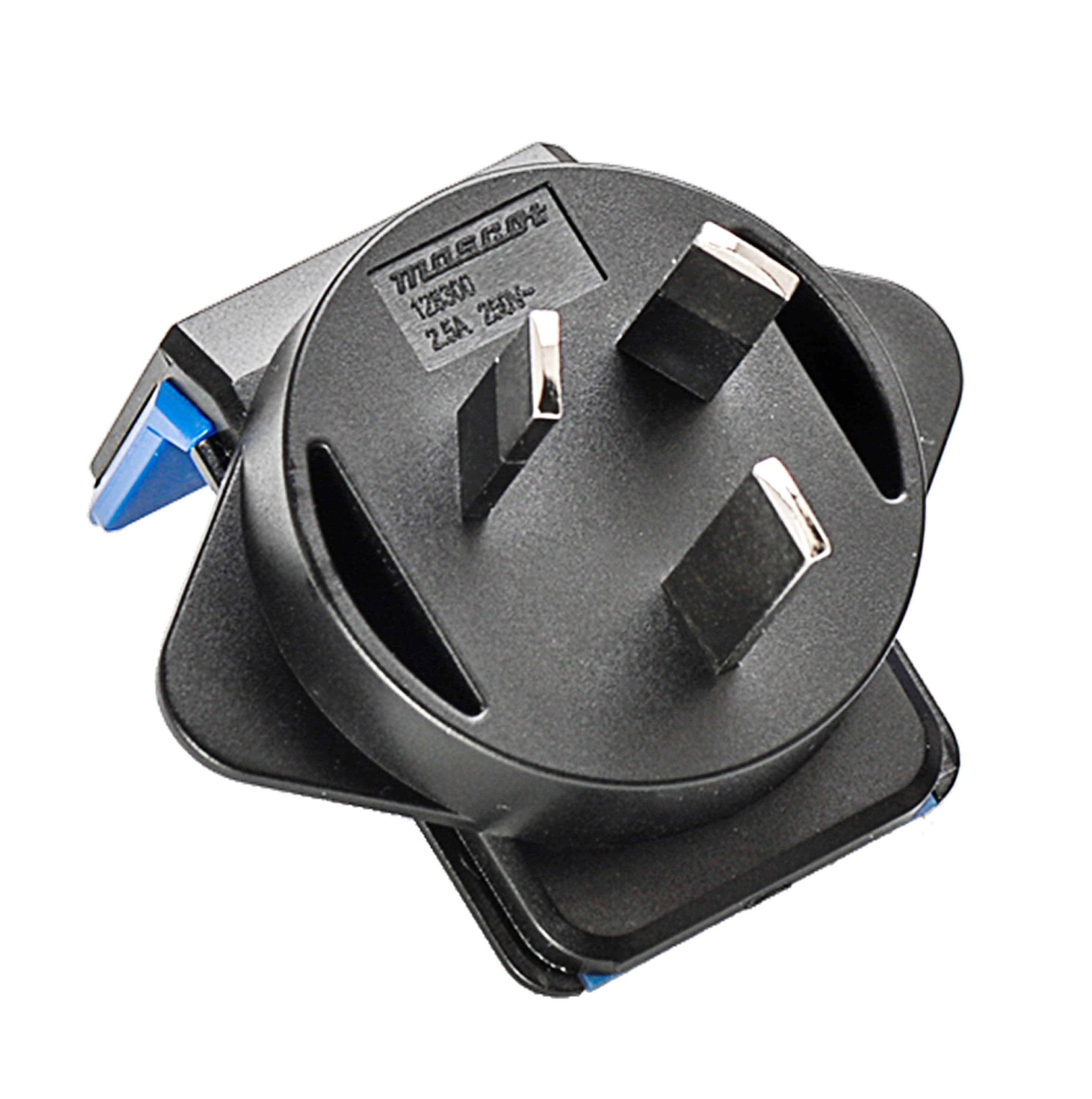

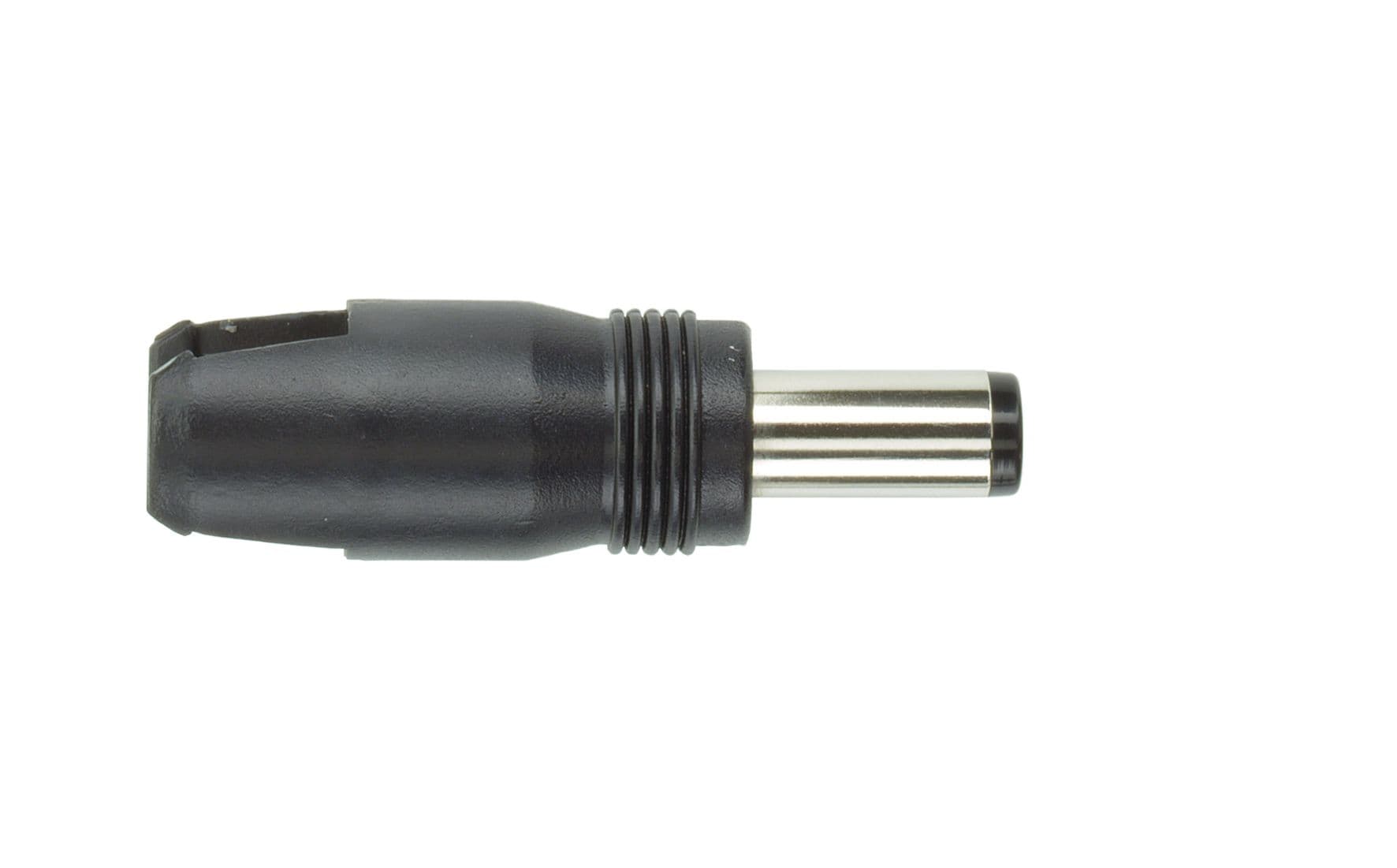

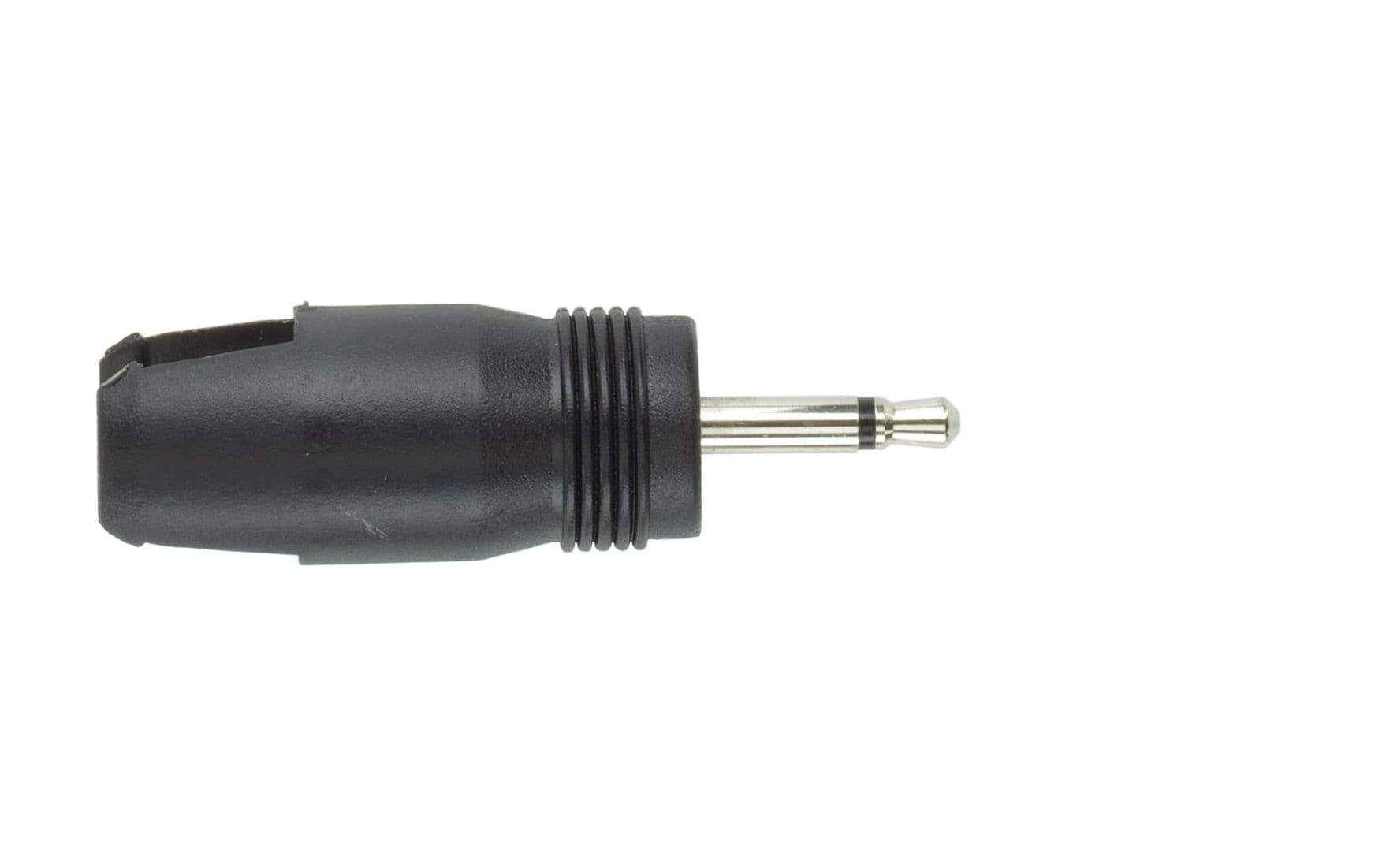

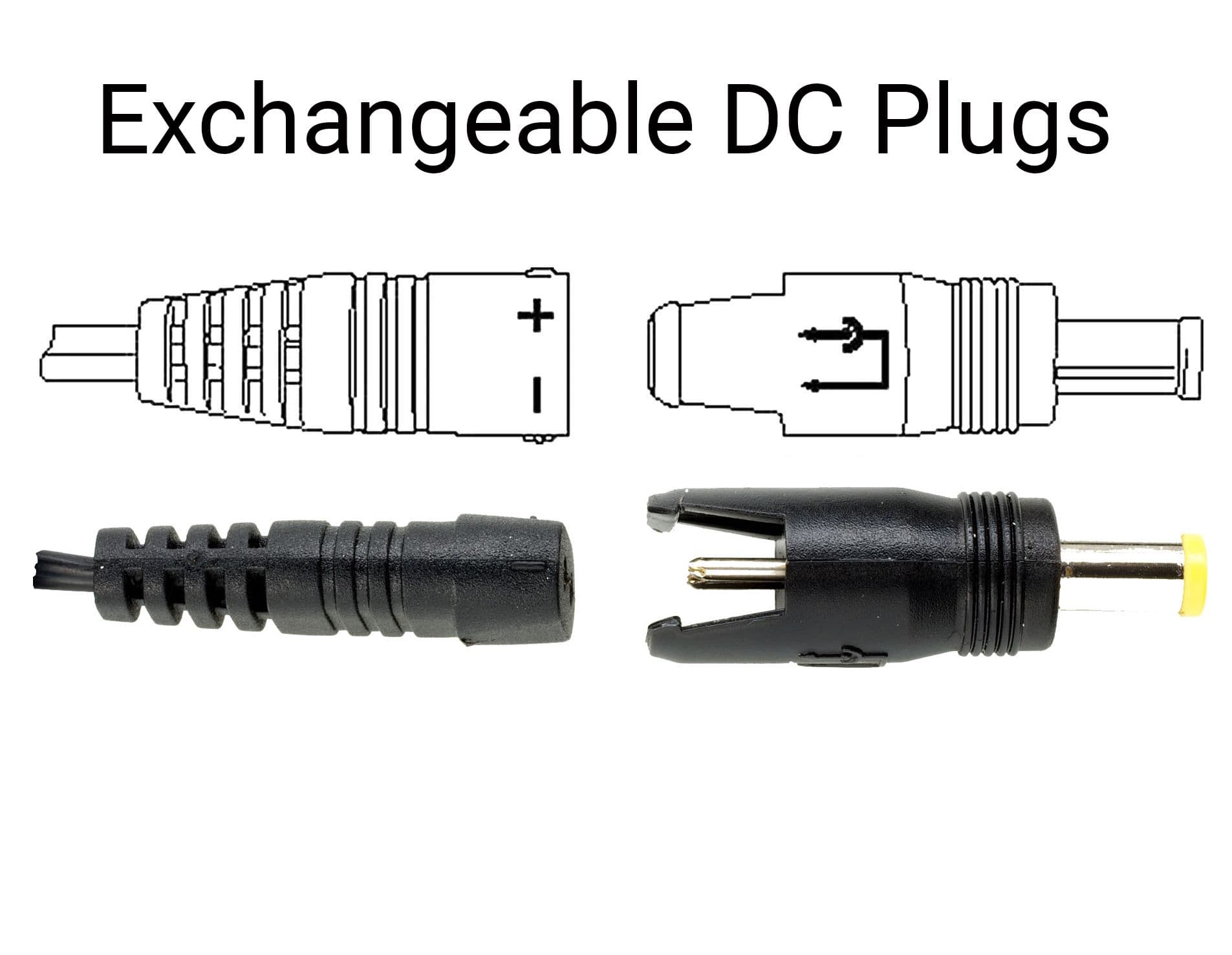

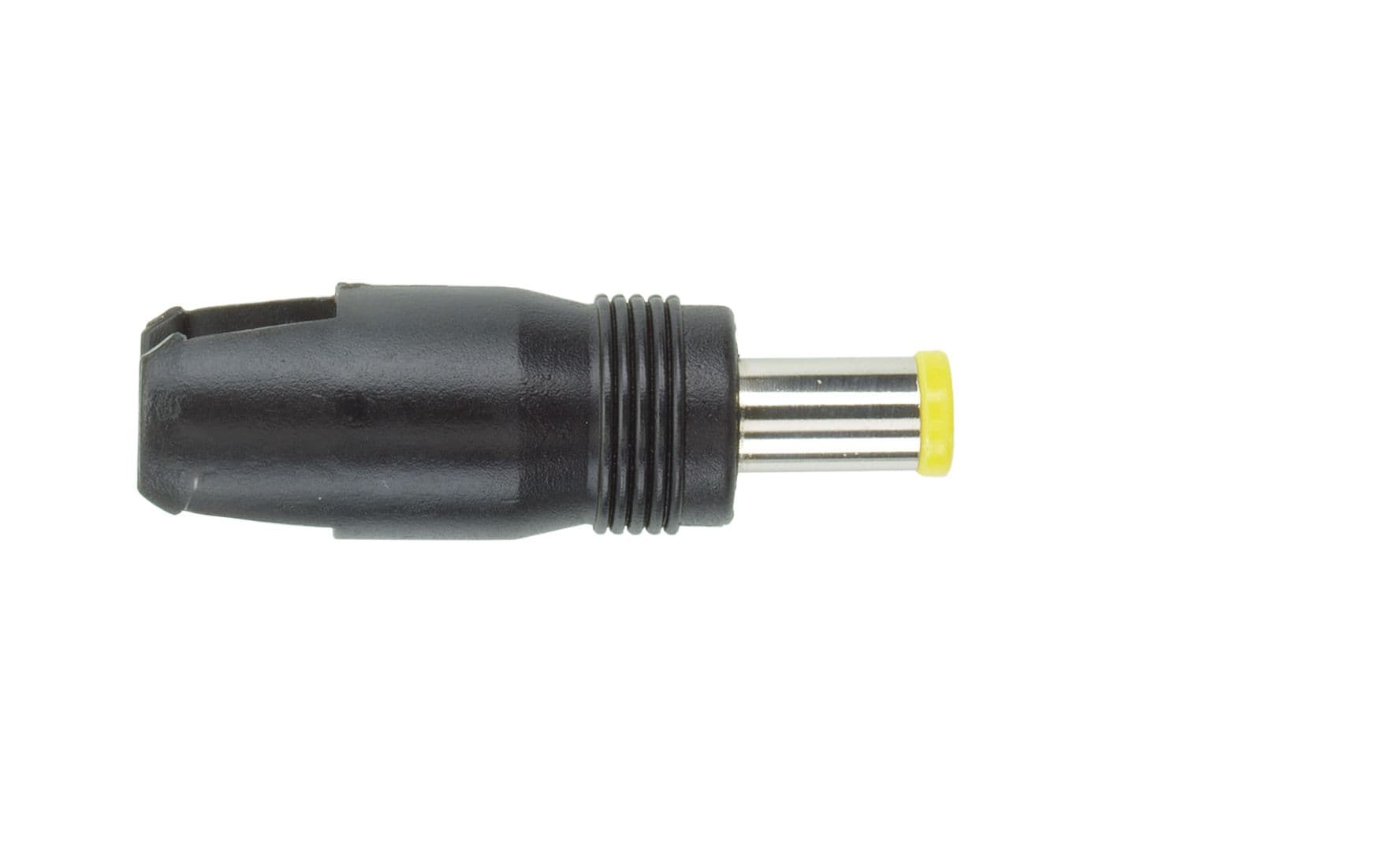

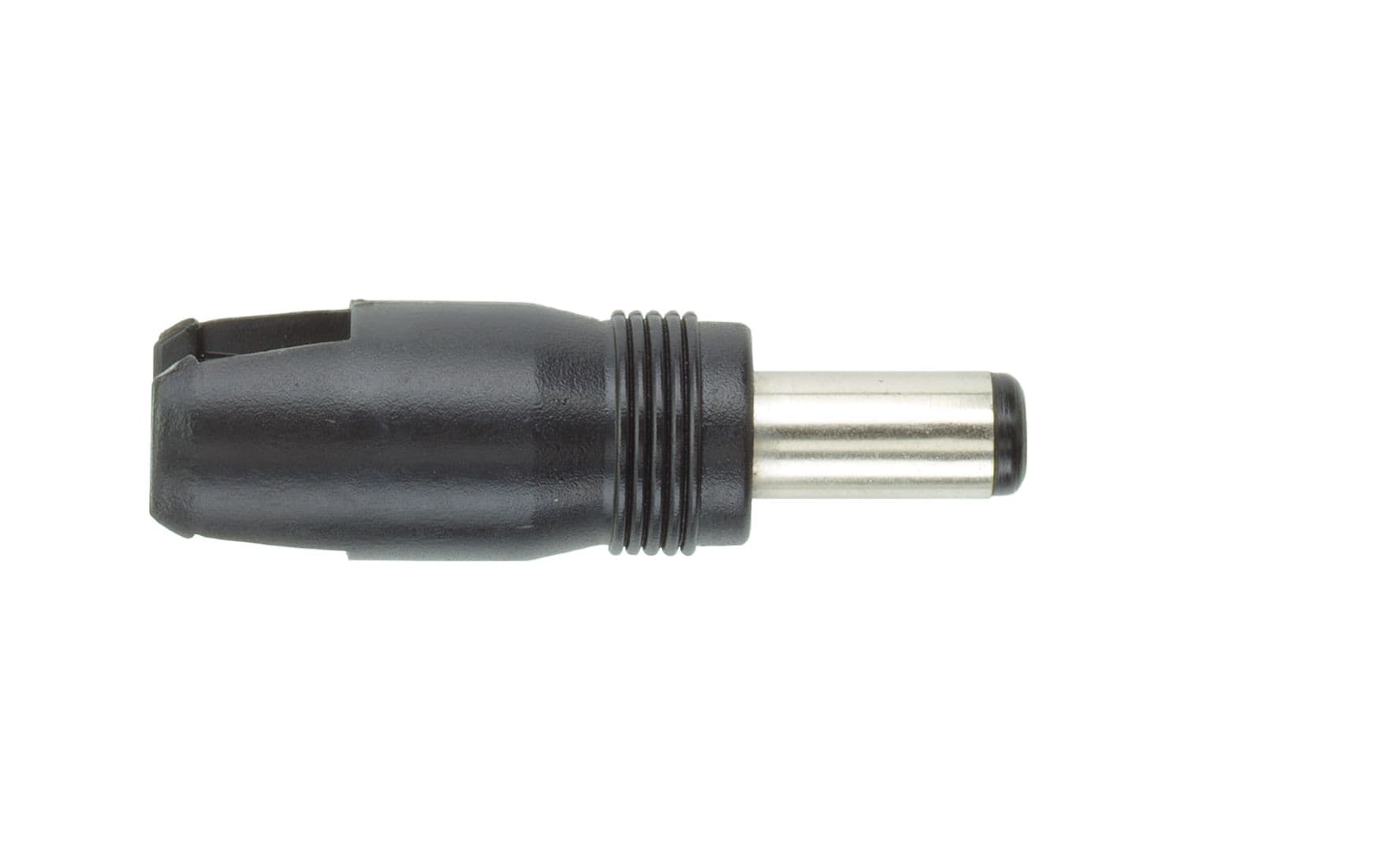

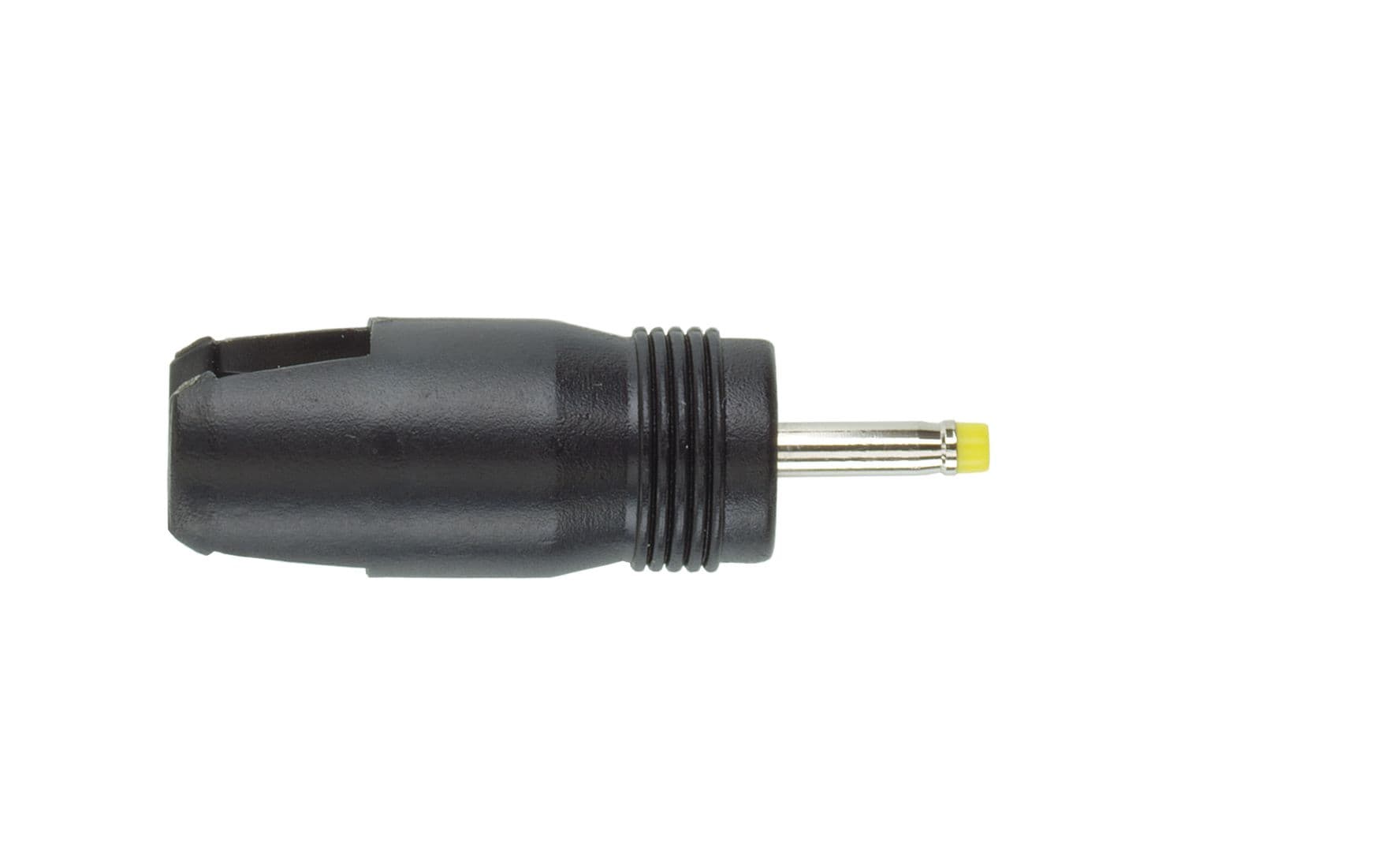

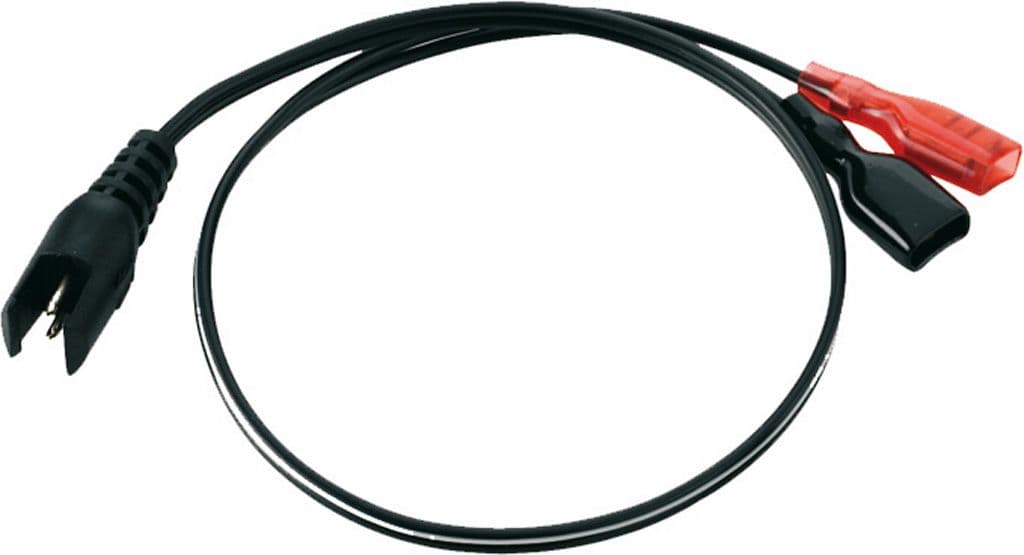

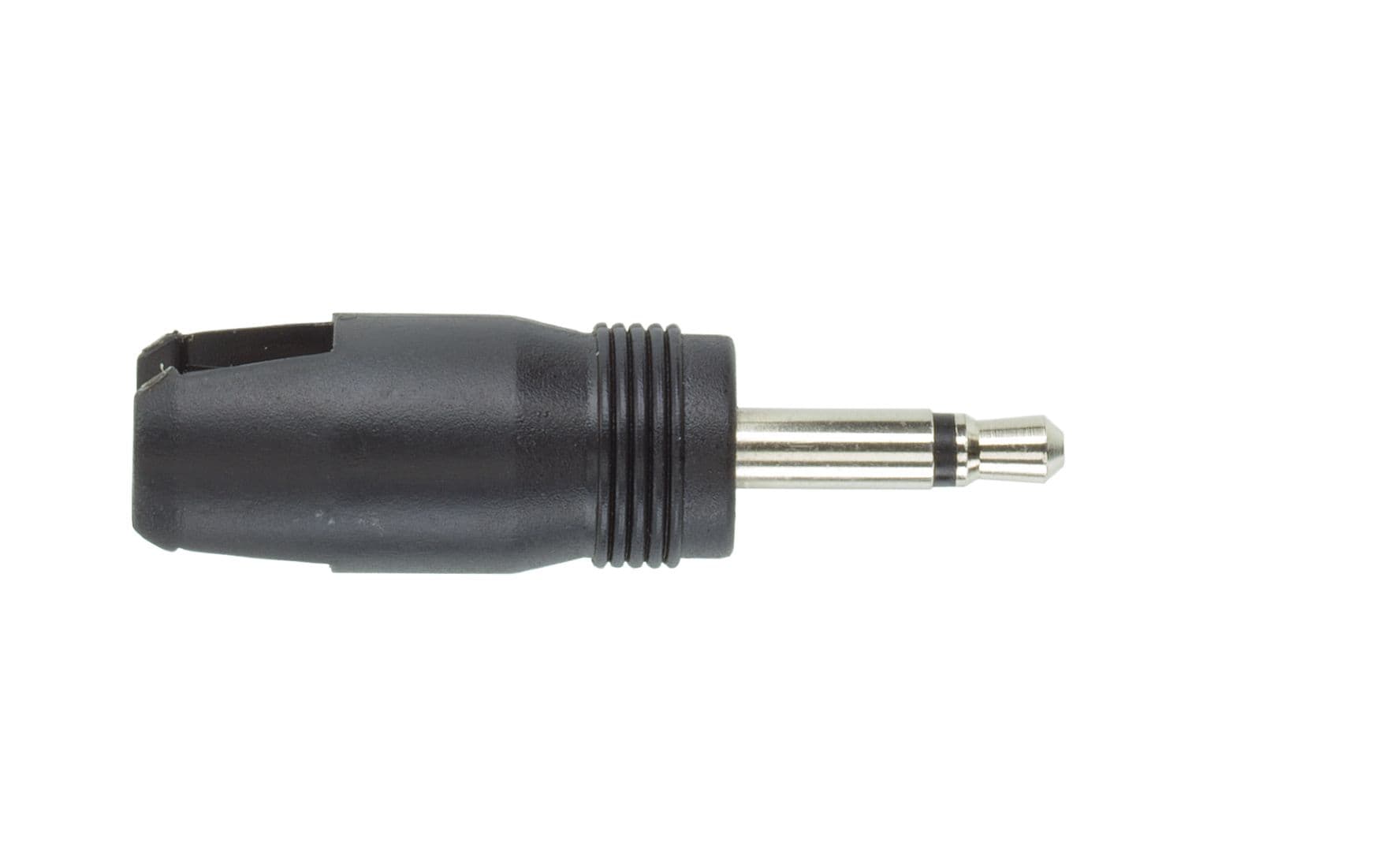

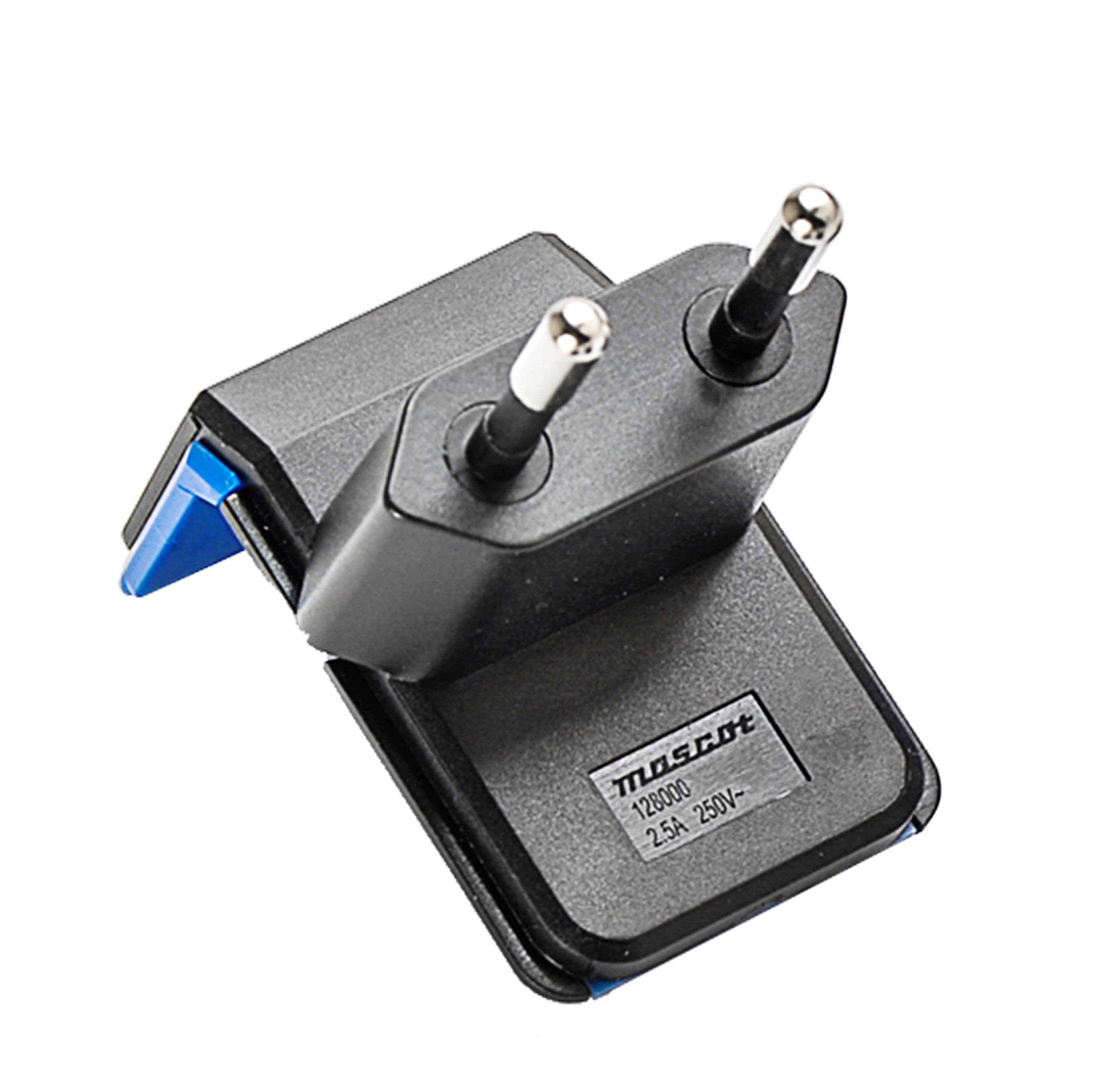

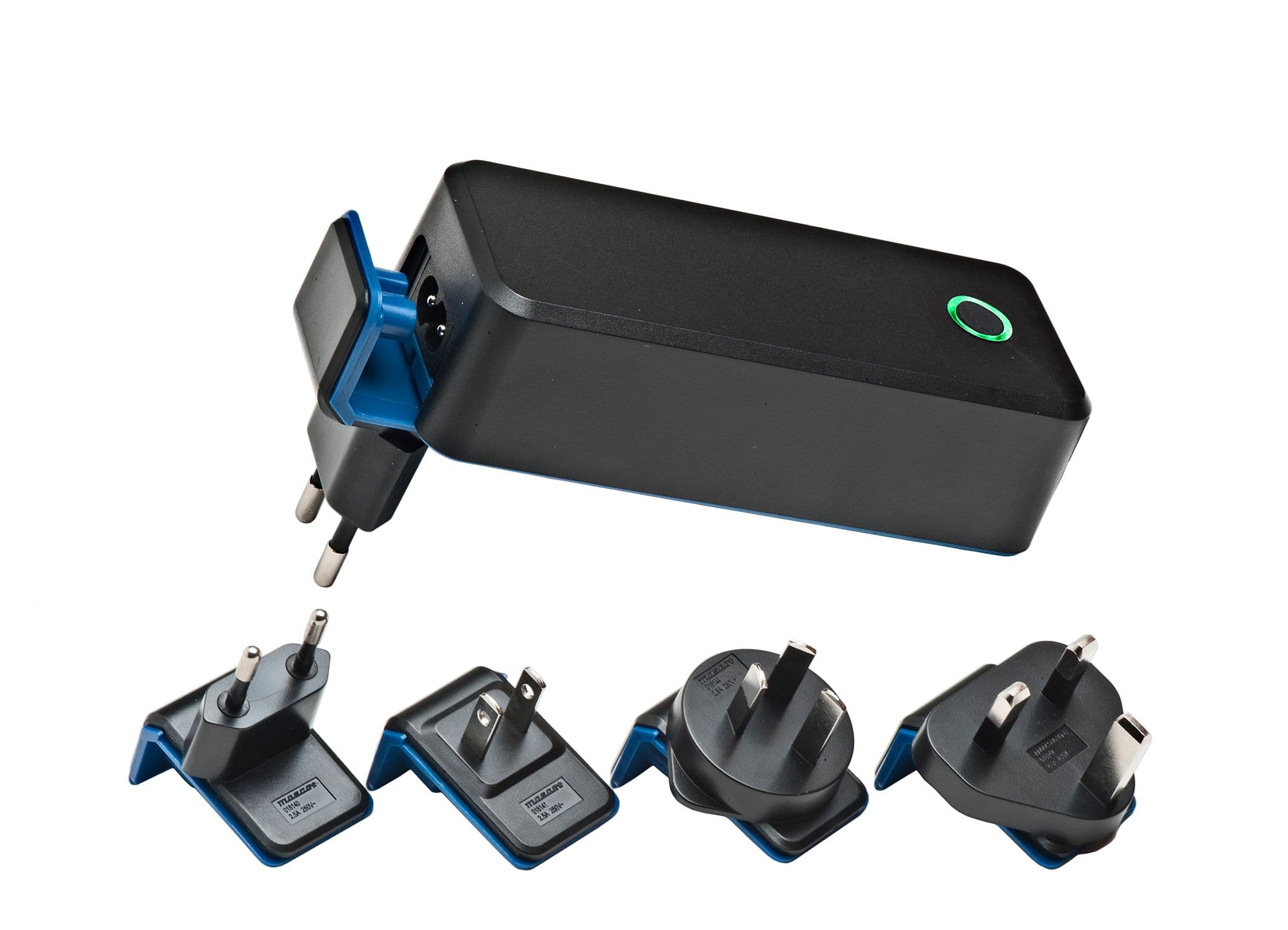

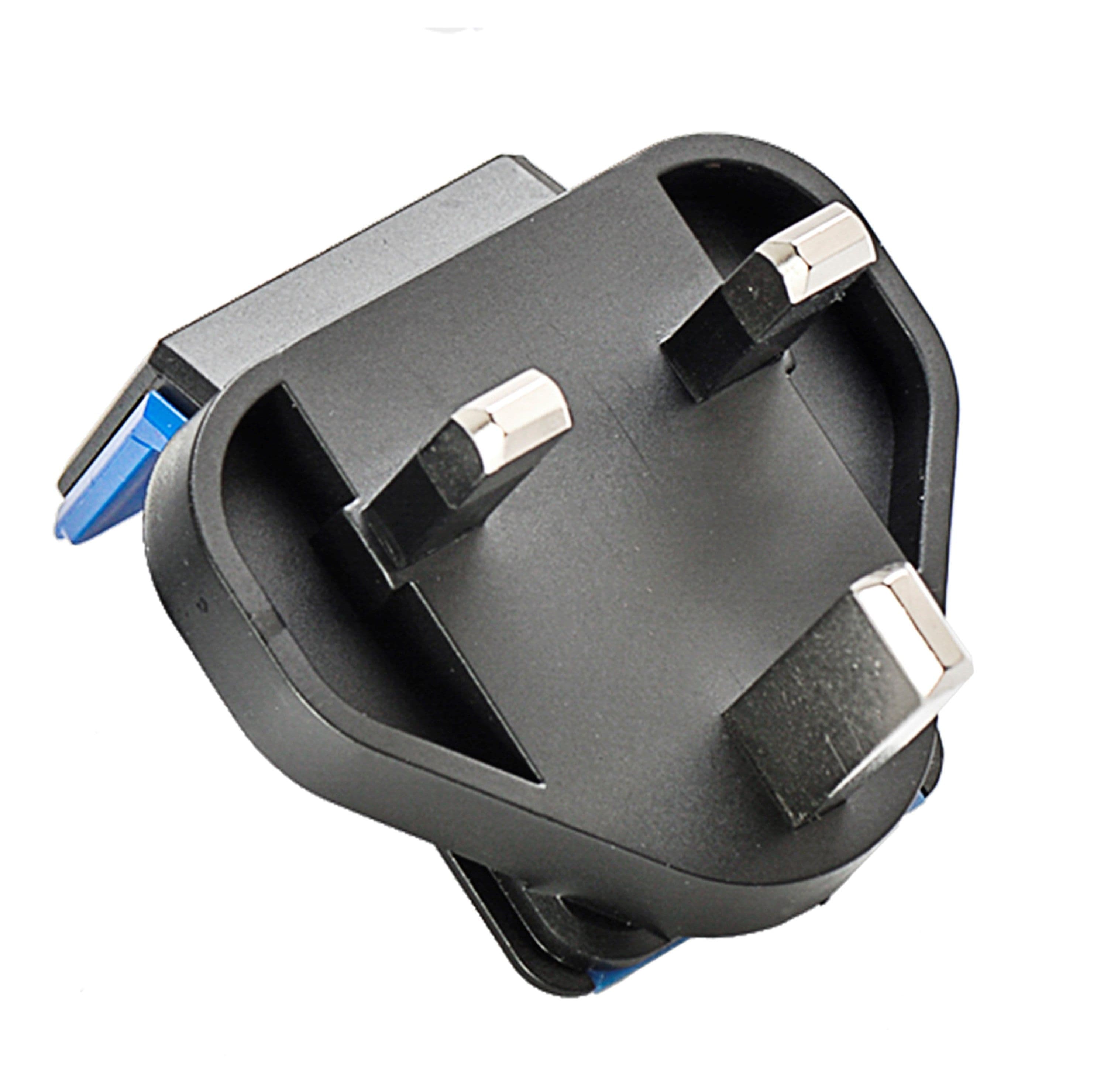

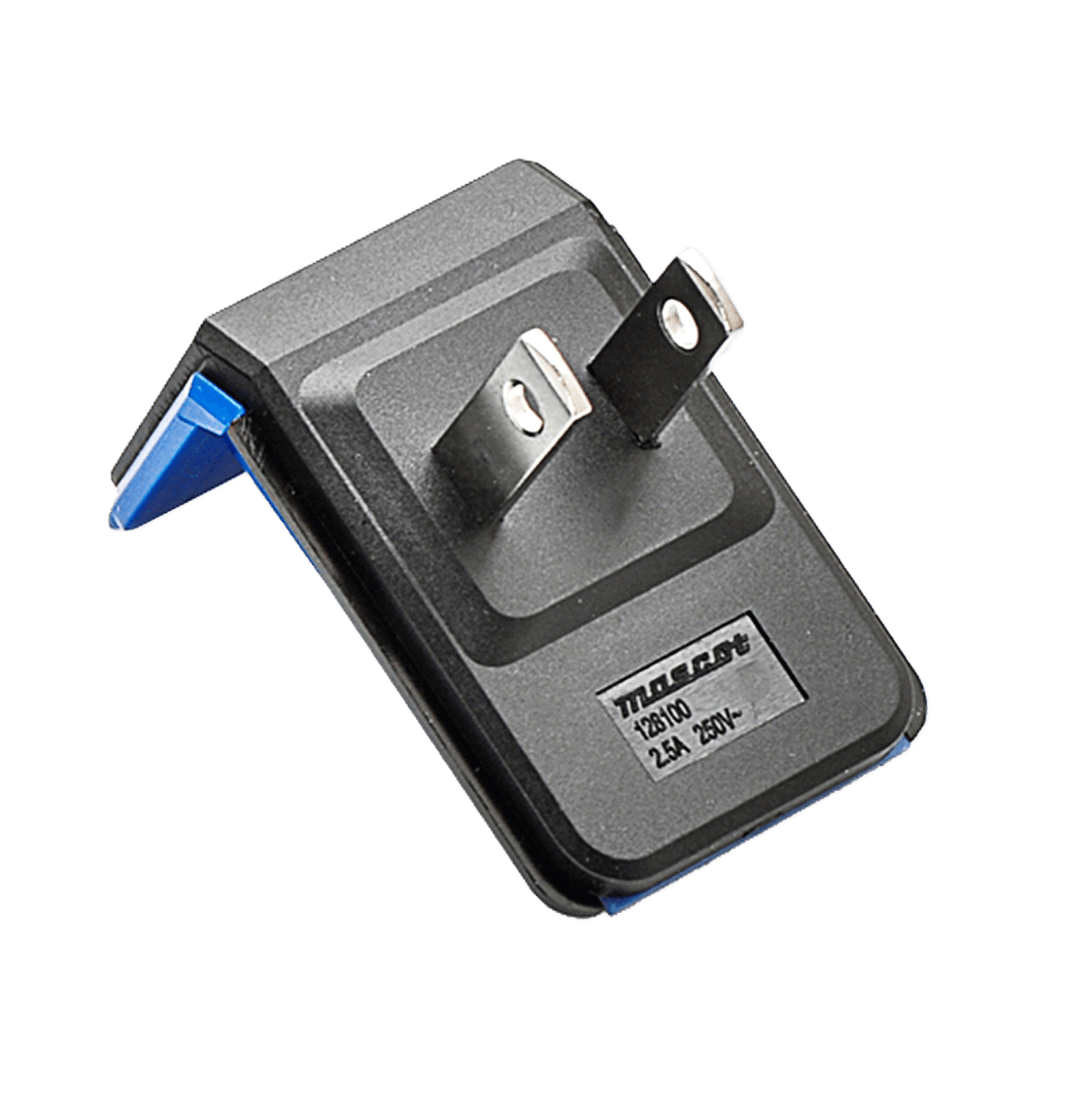

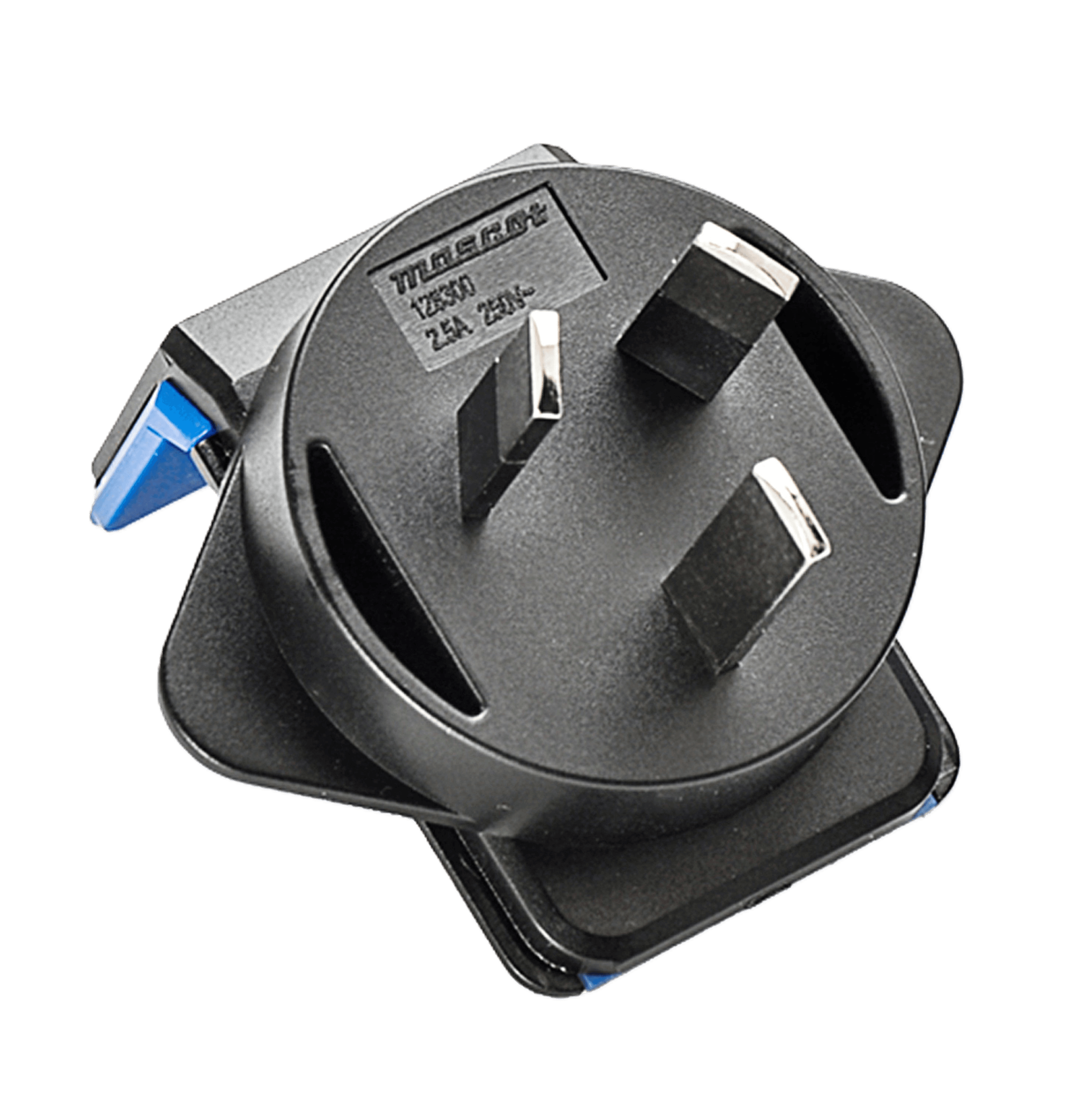

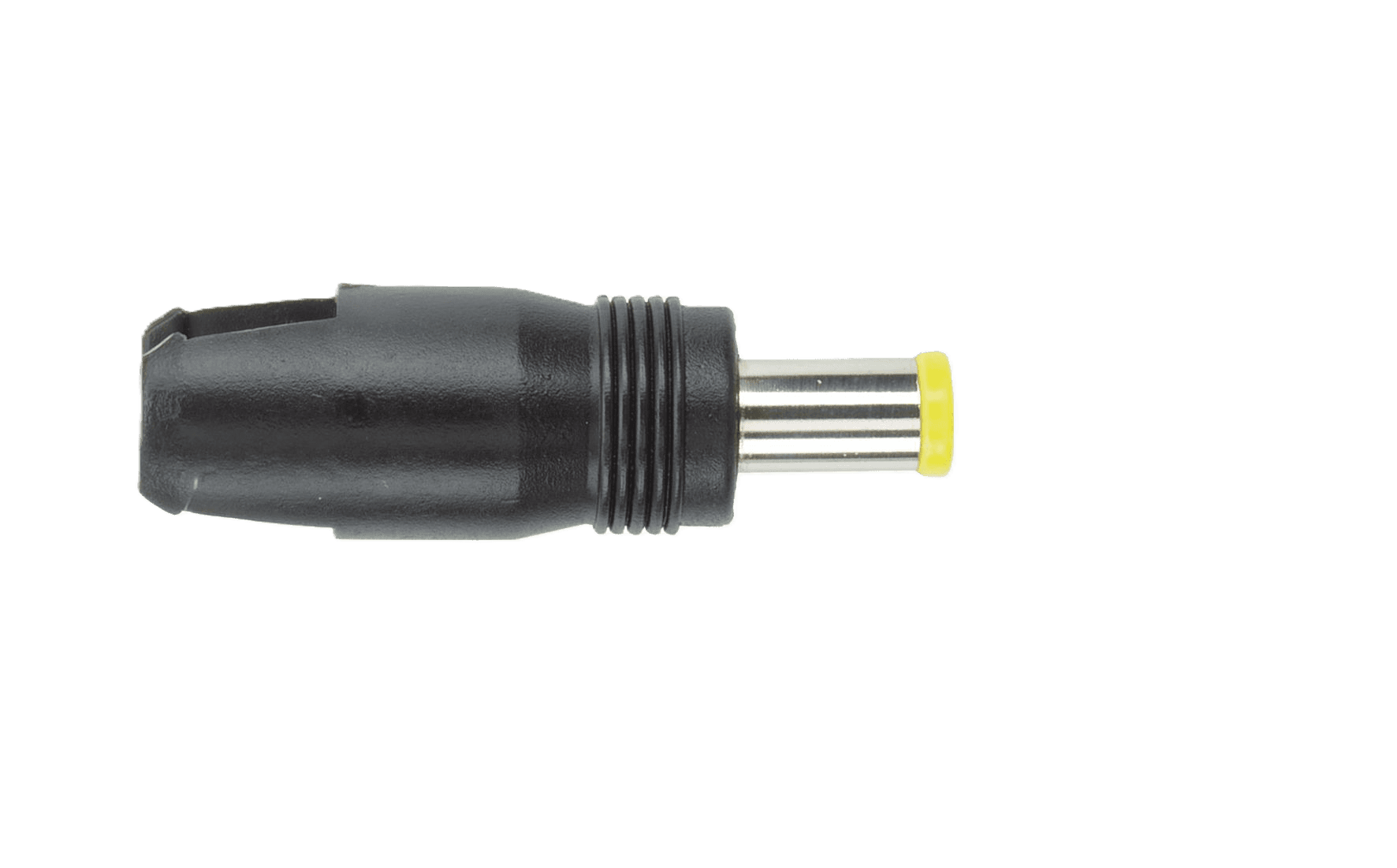

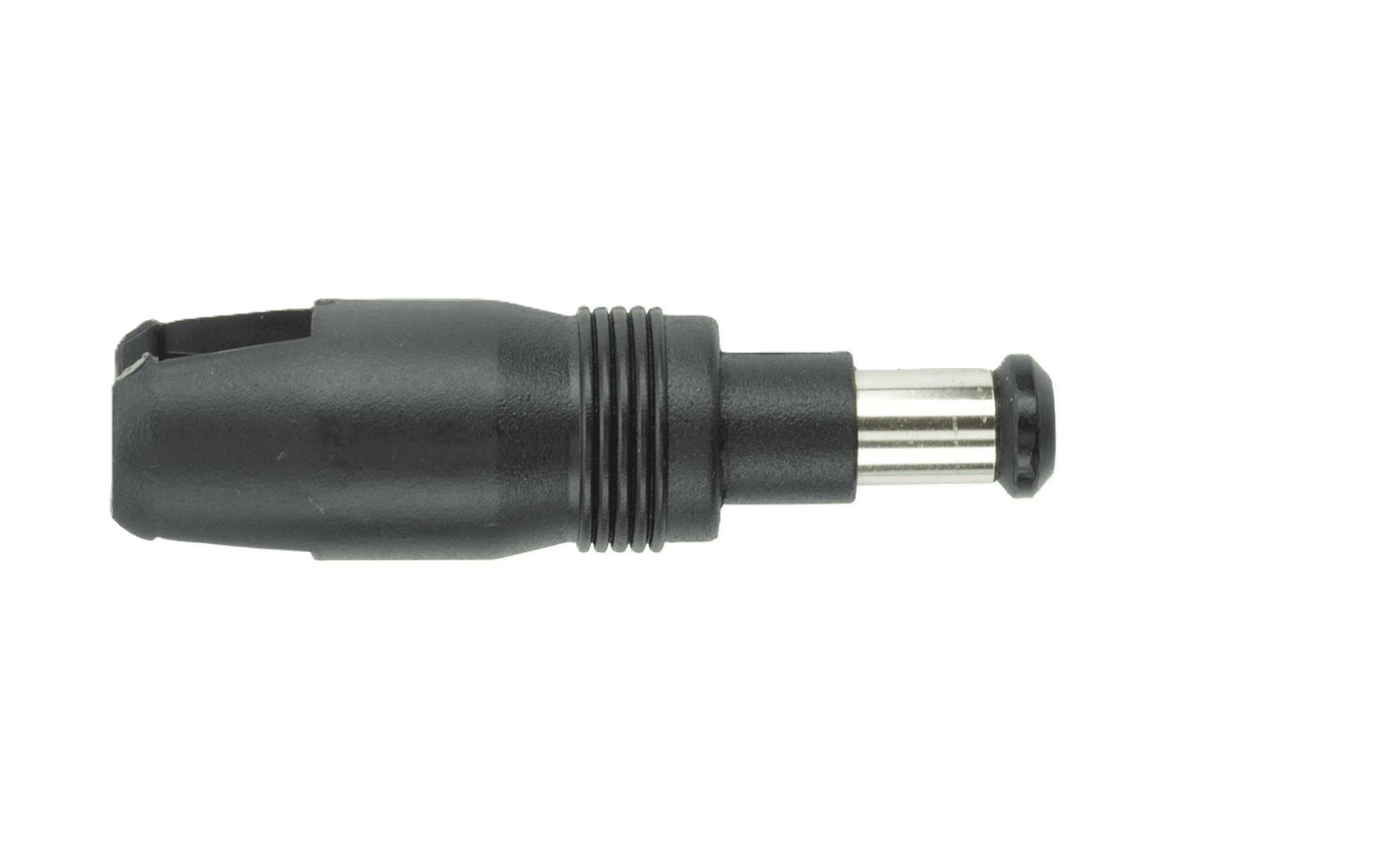

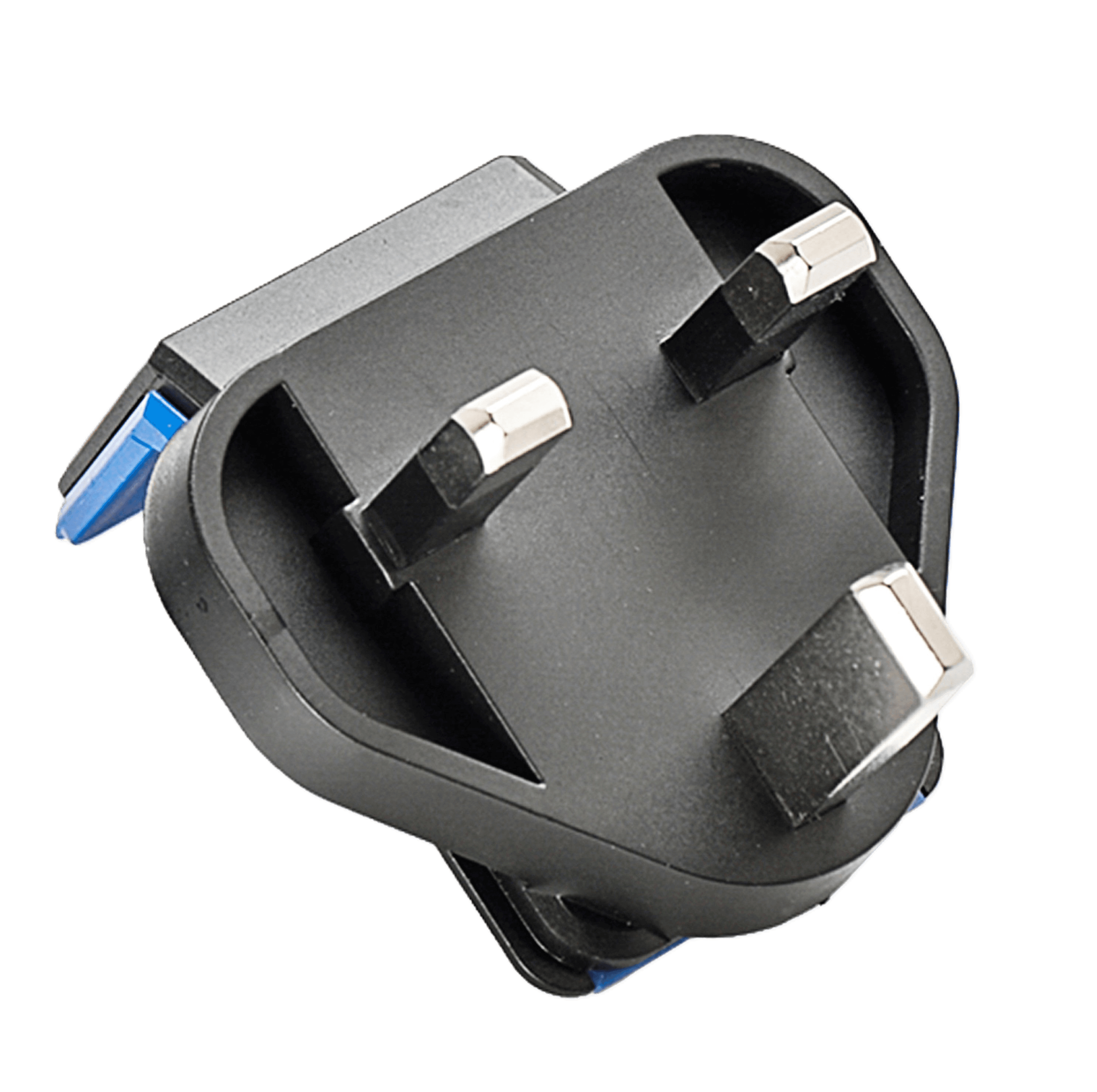

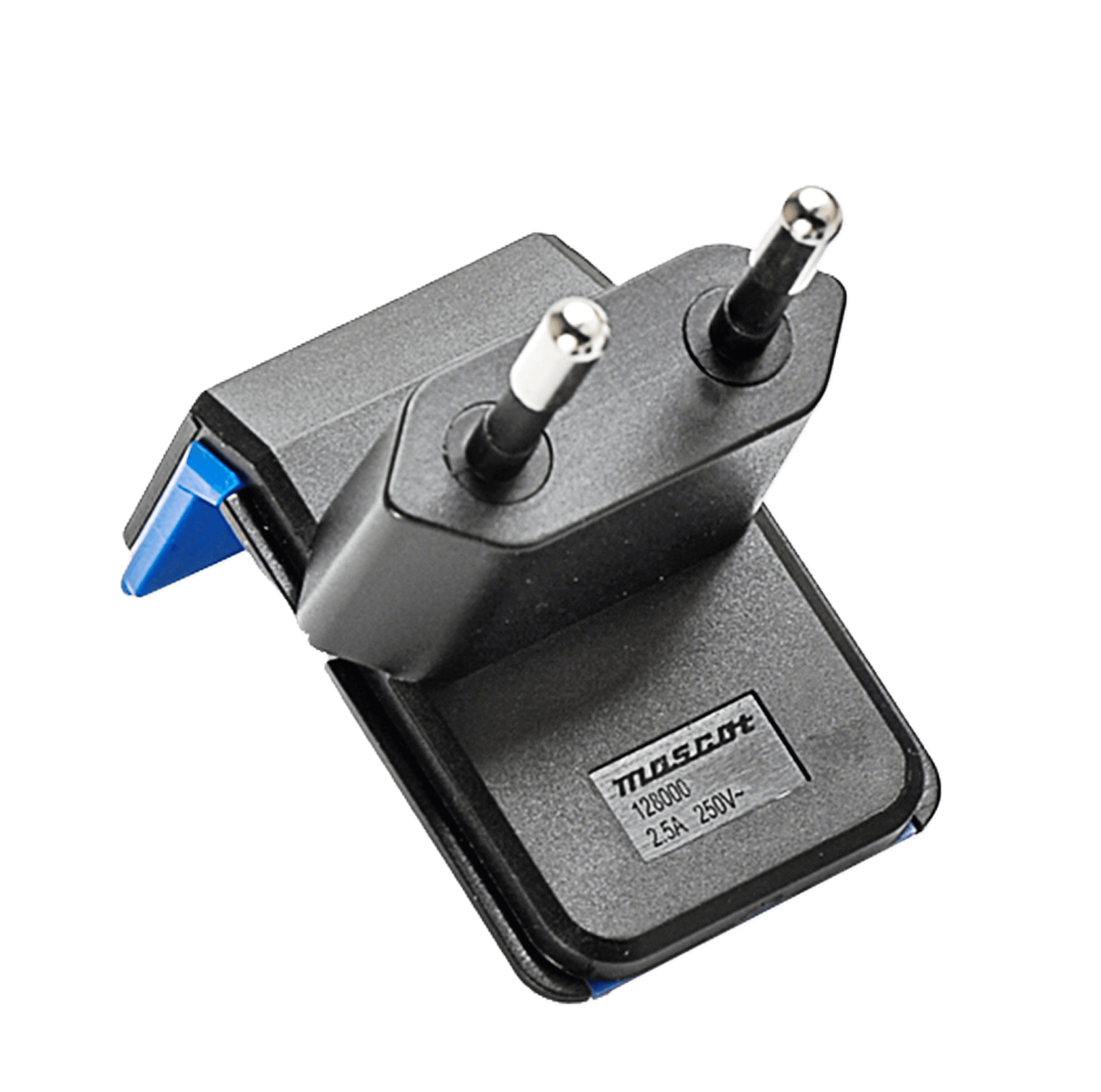

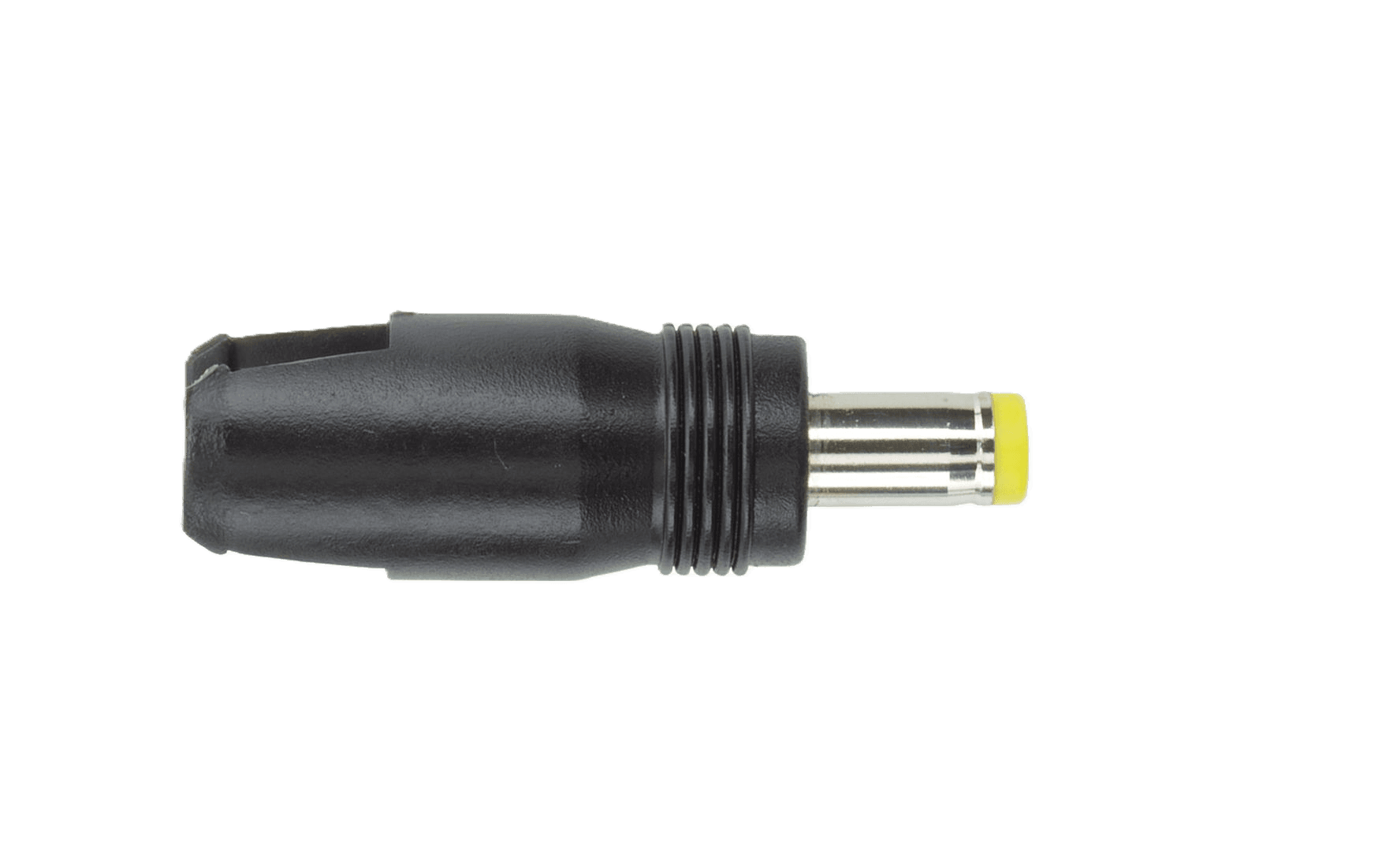

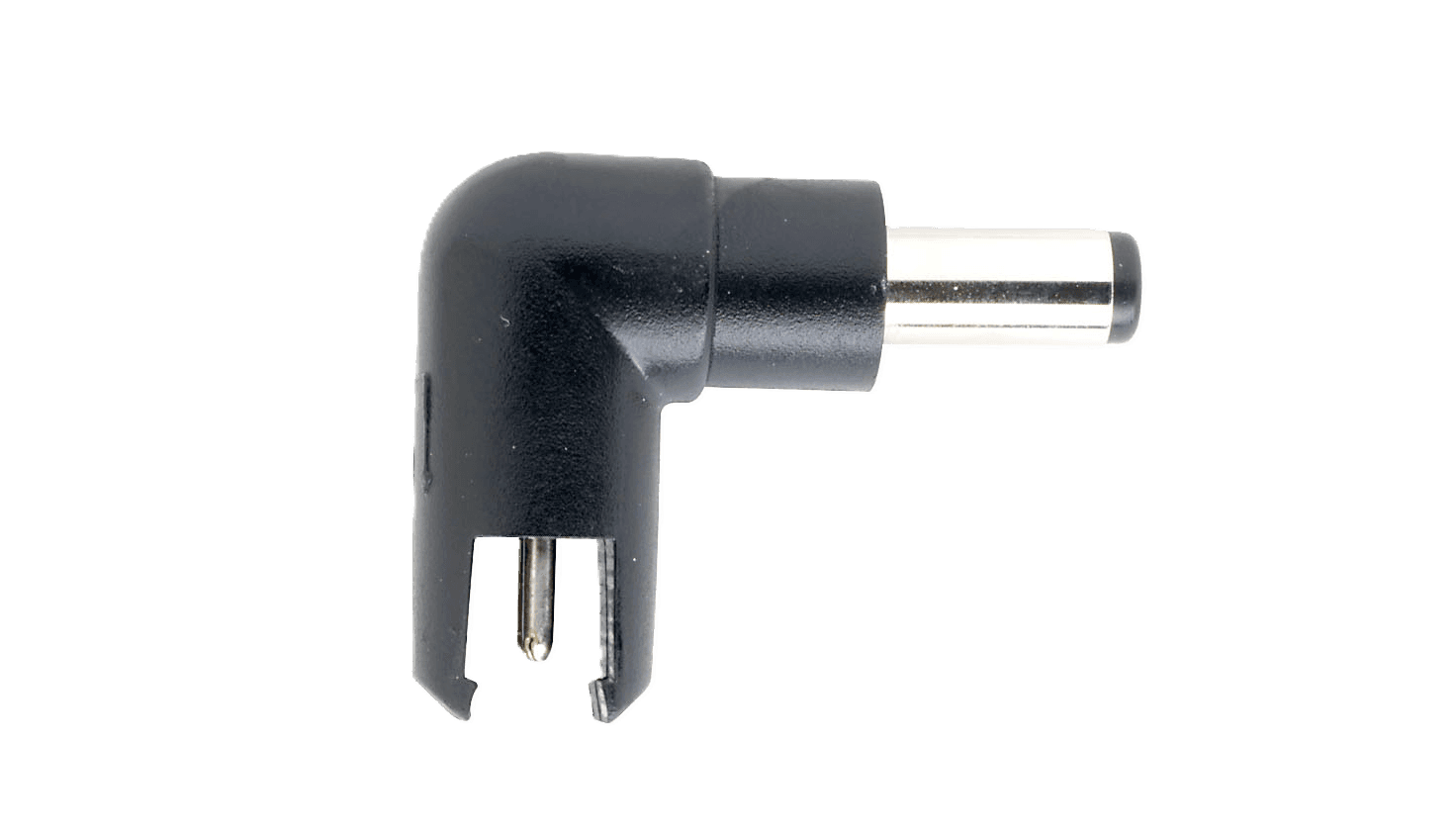

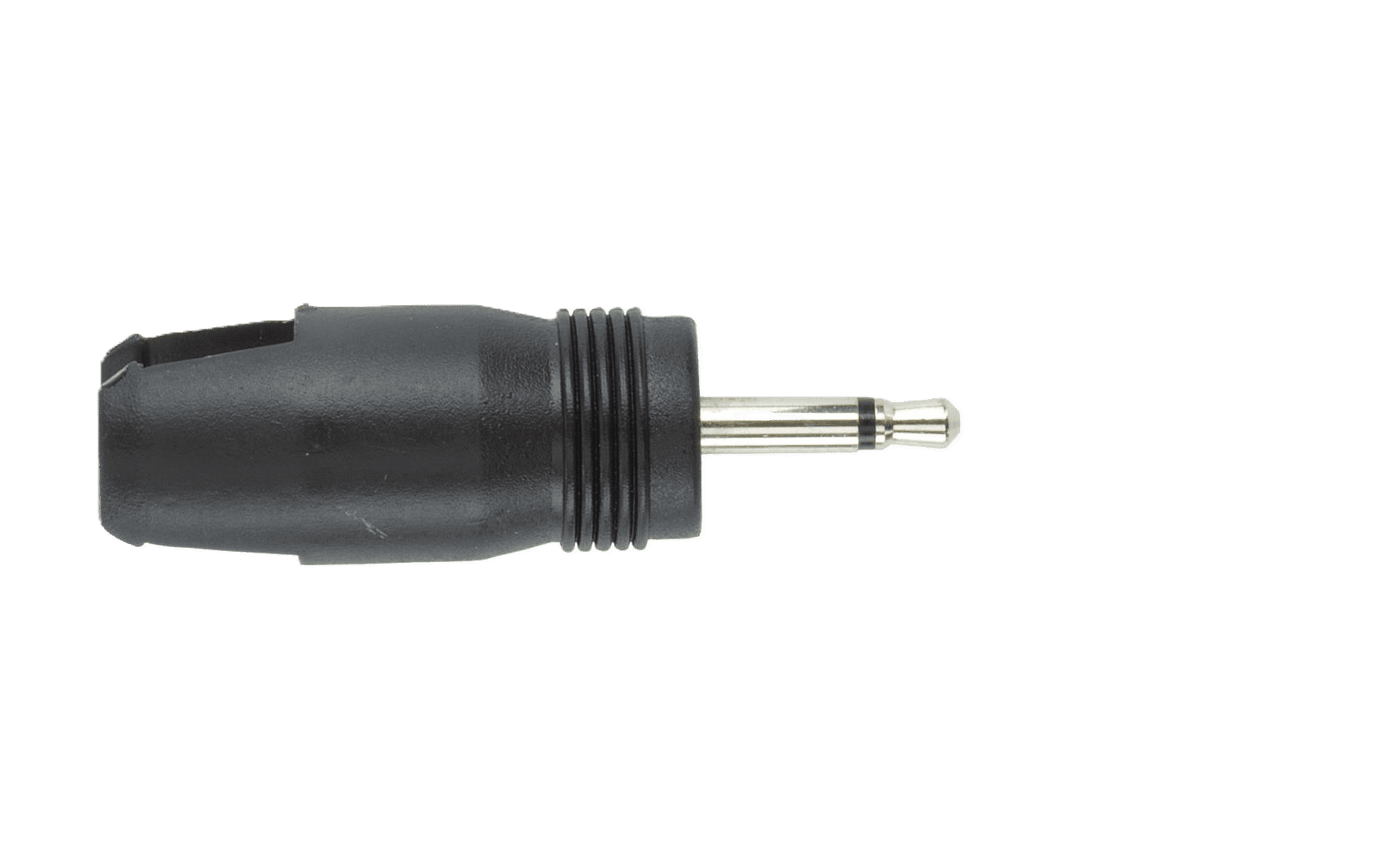

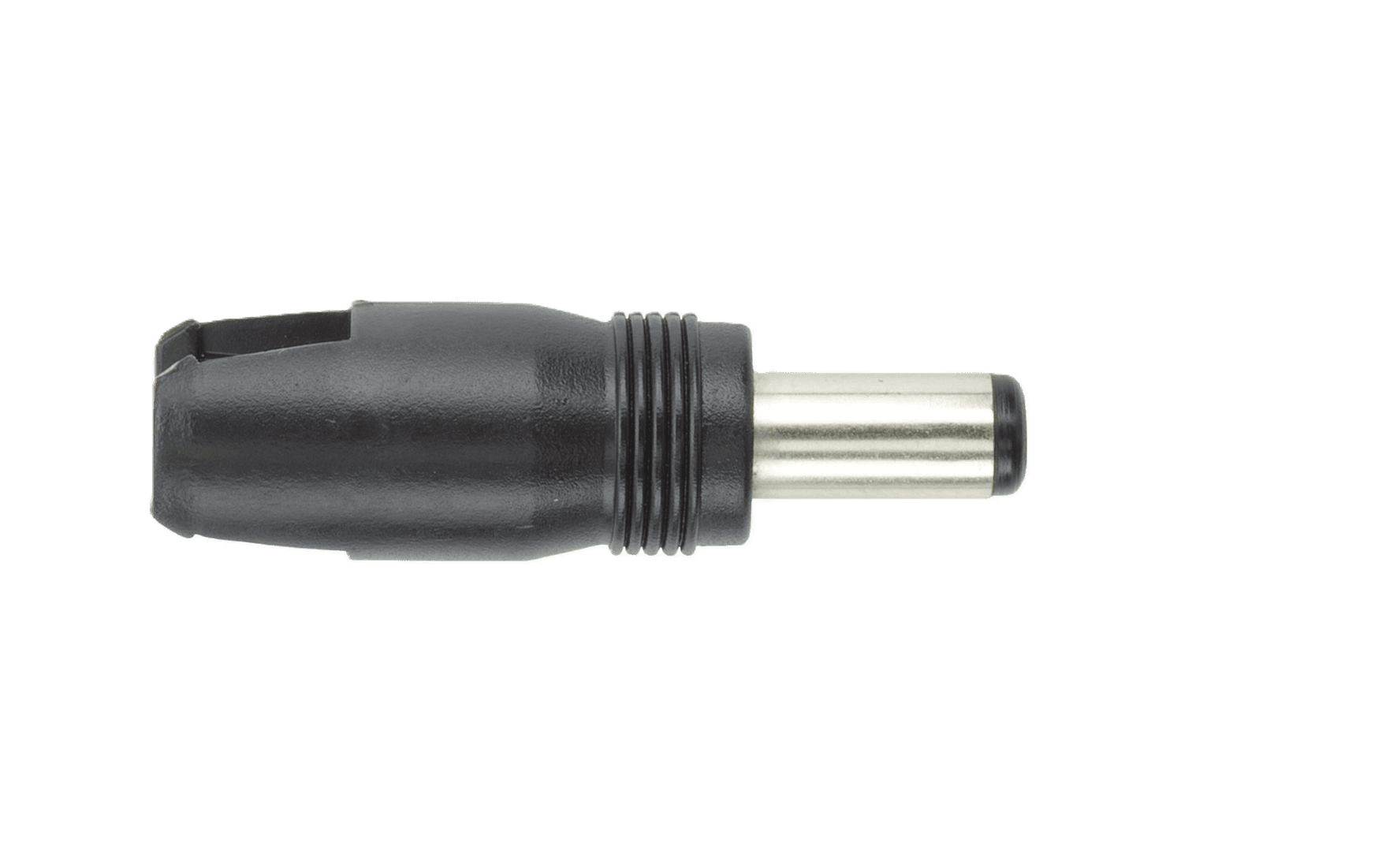

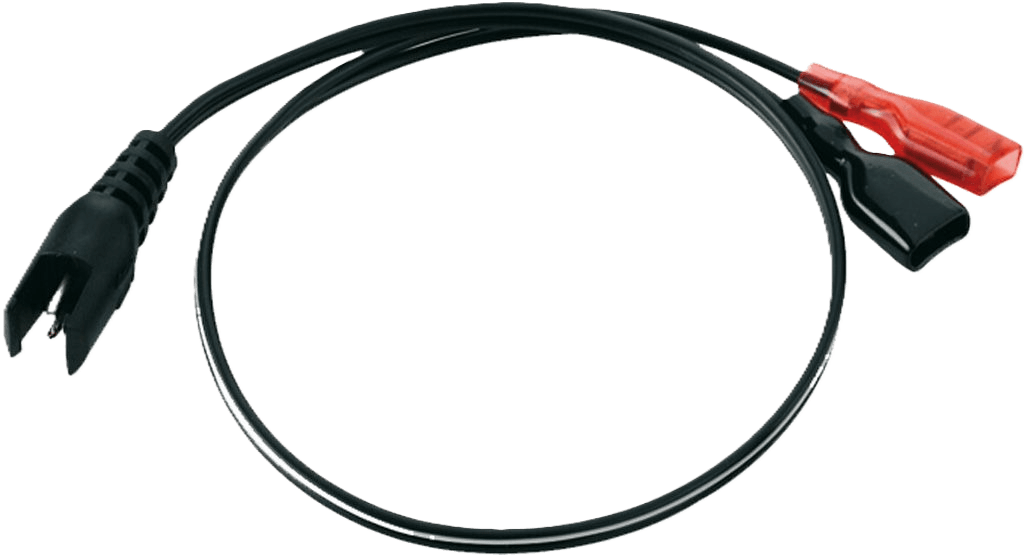

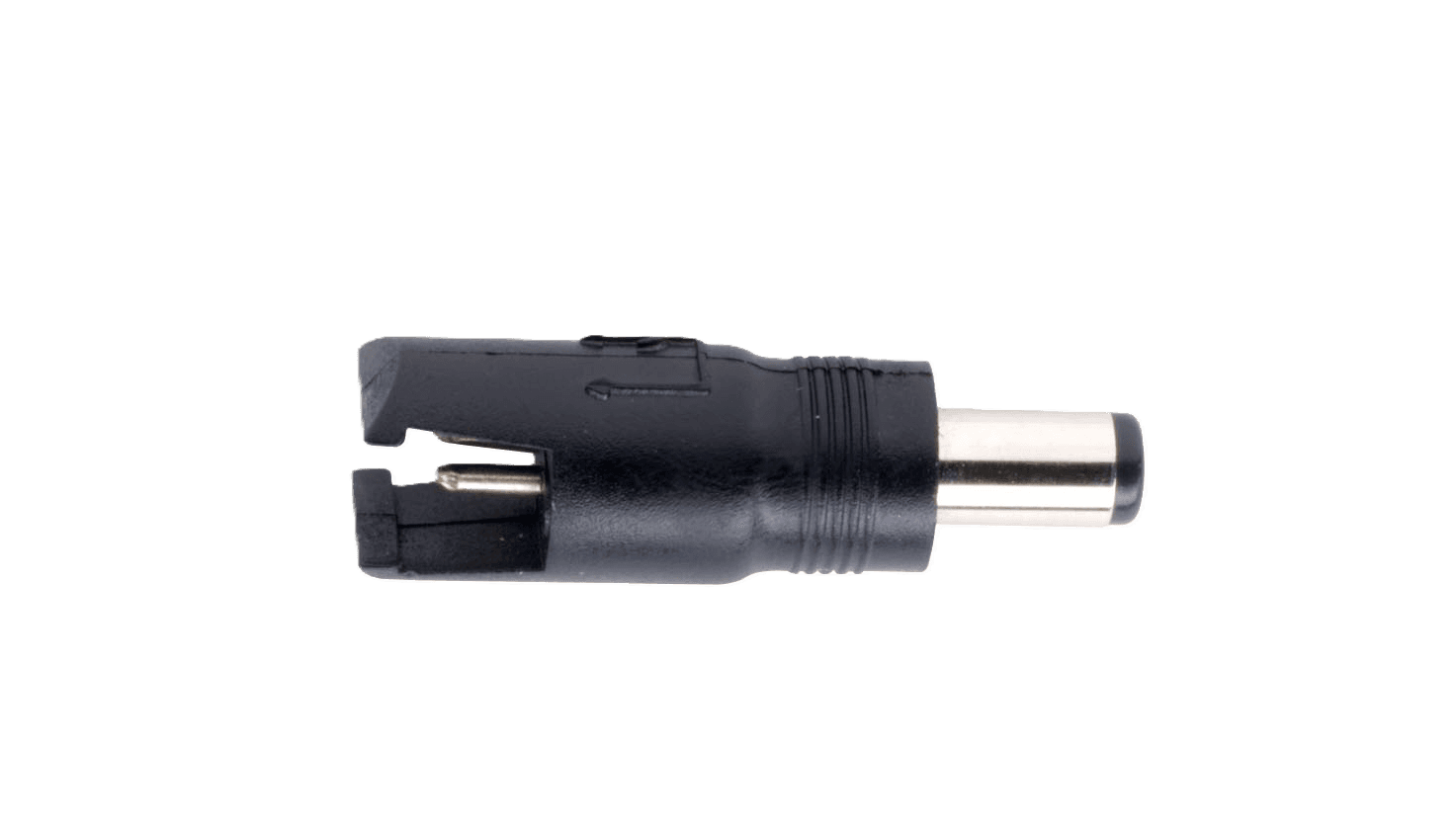

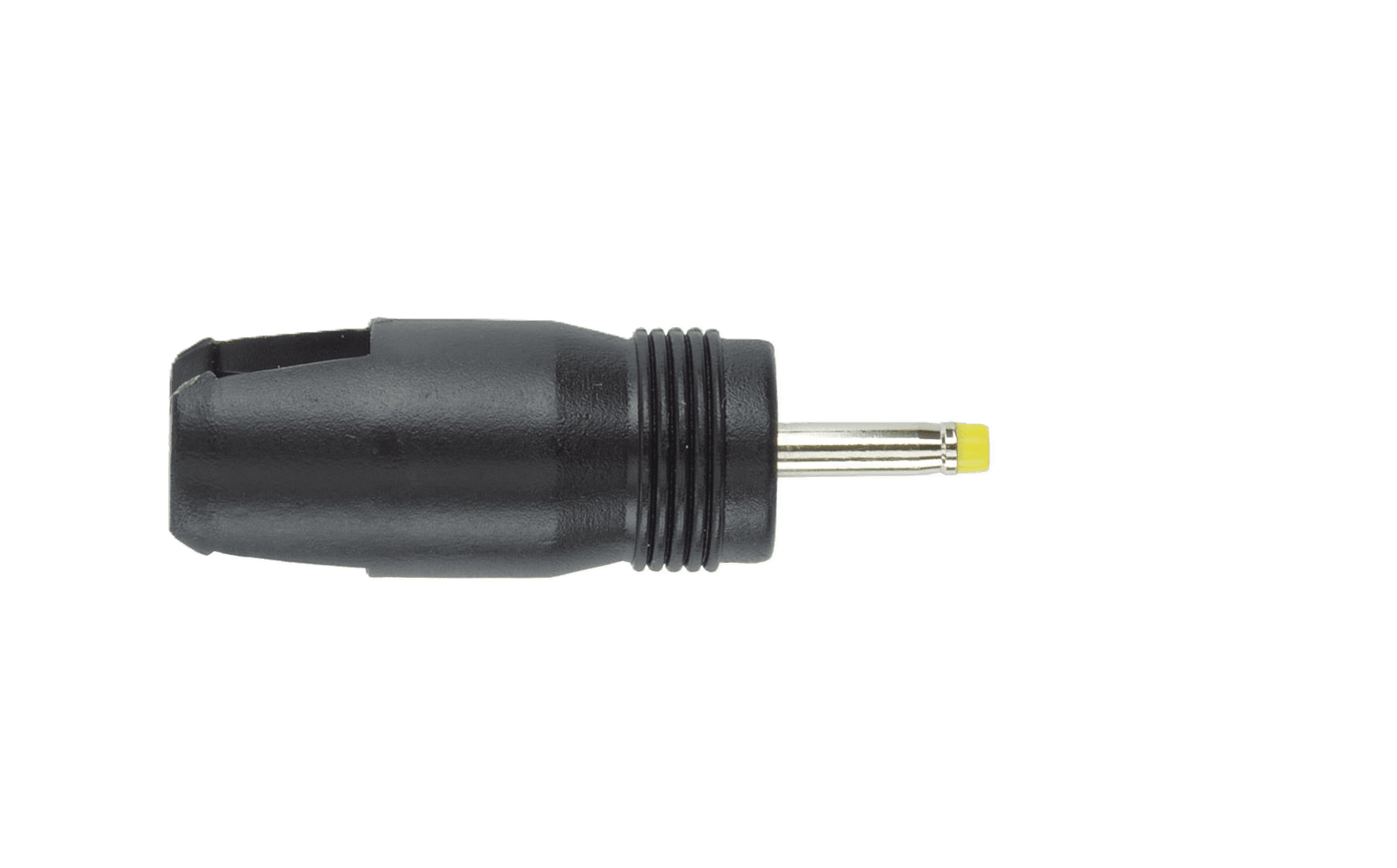

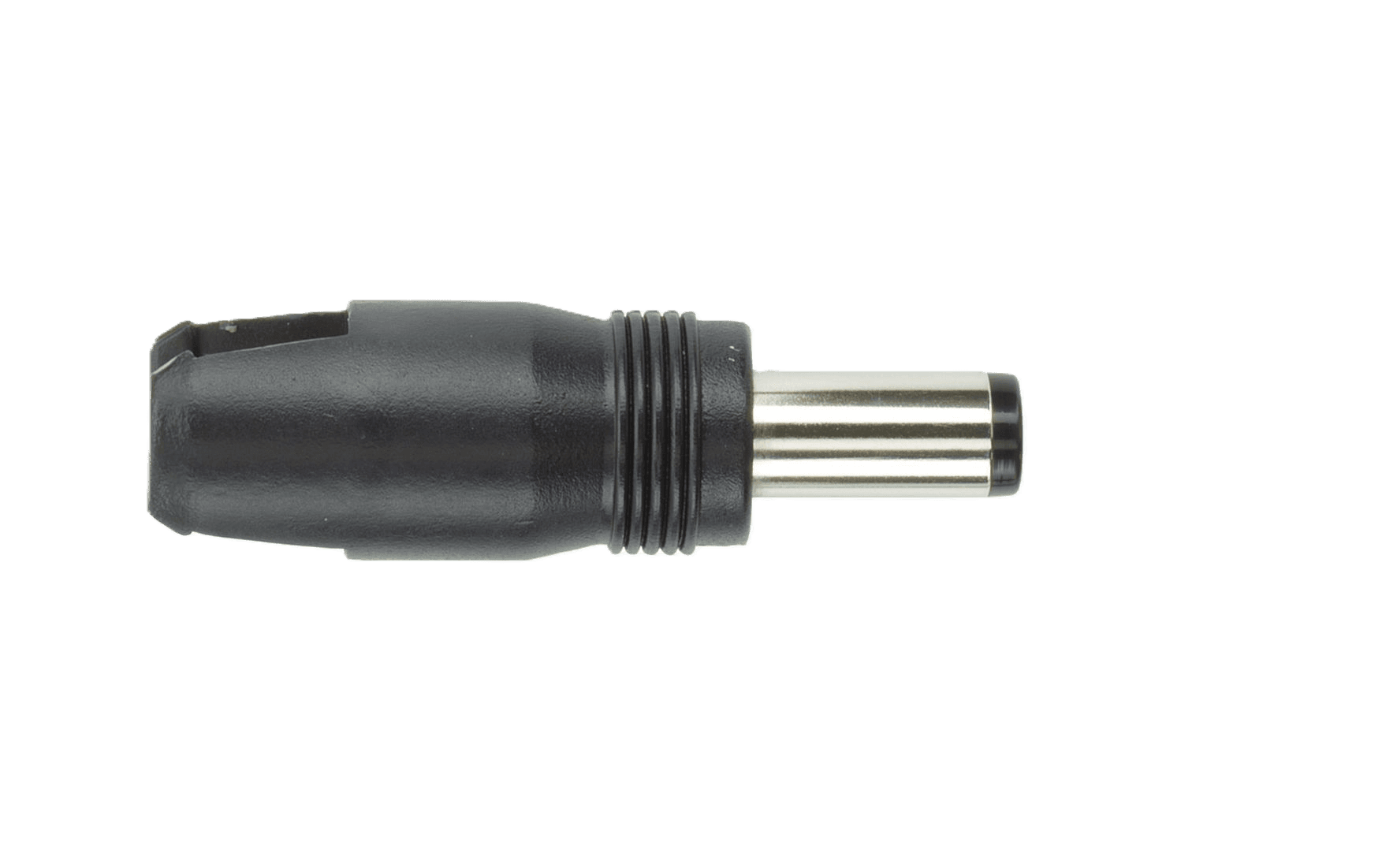

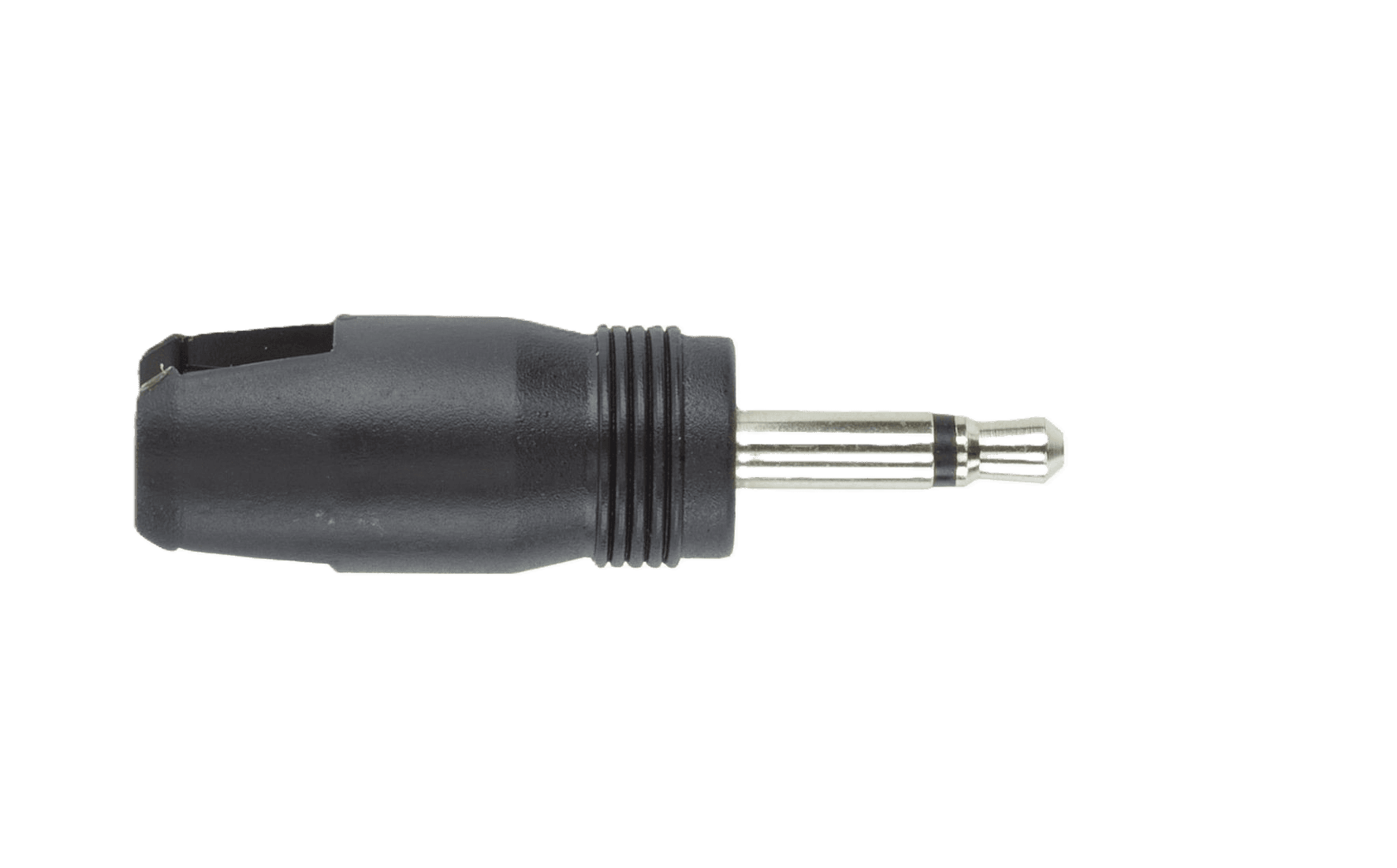

Exchangeable AC and DC plugs available

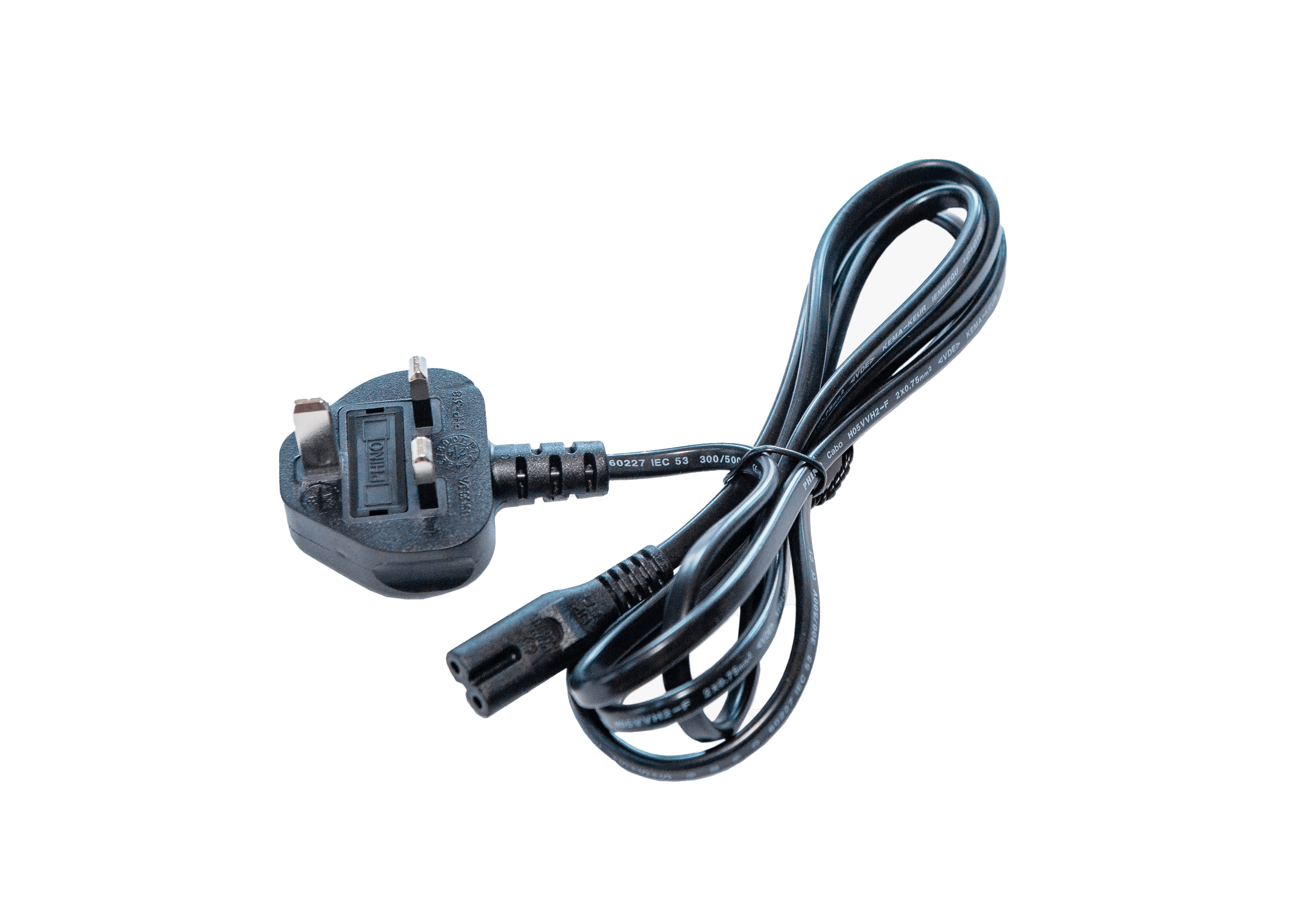

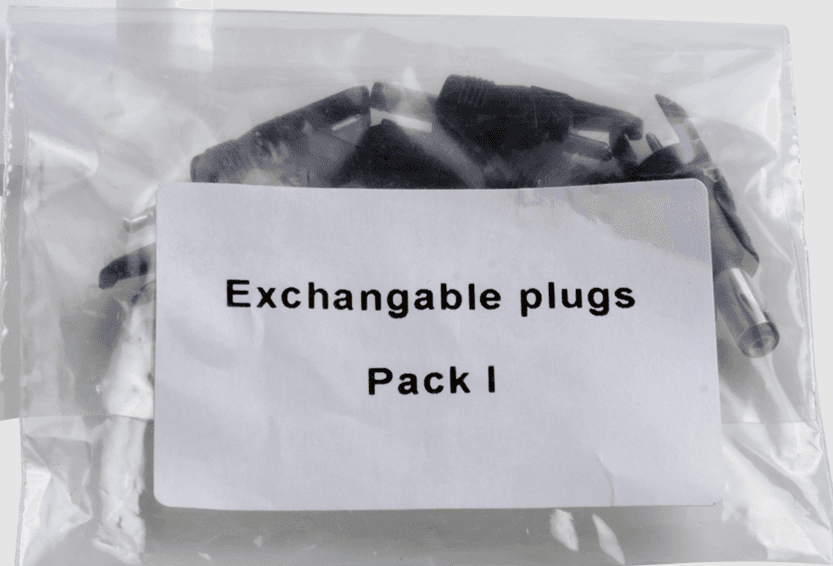

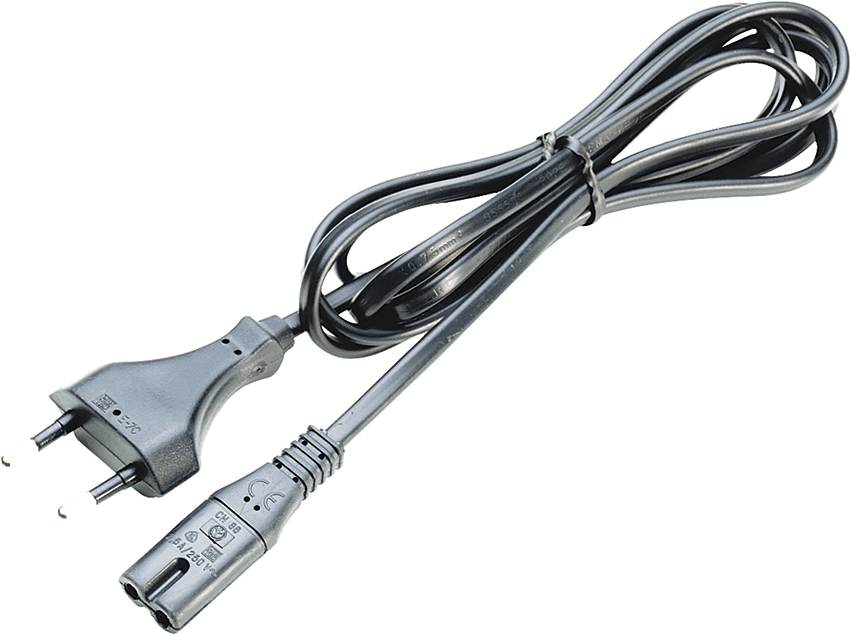

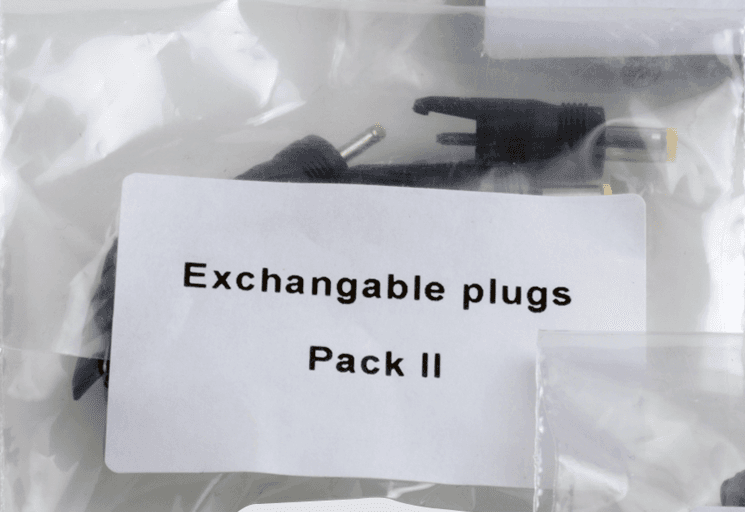

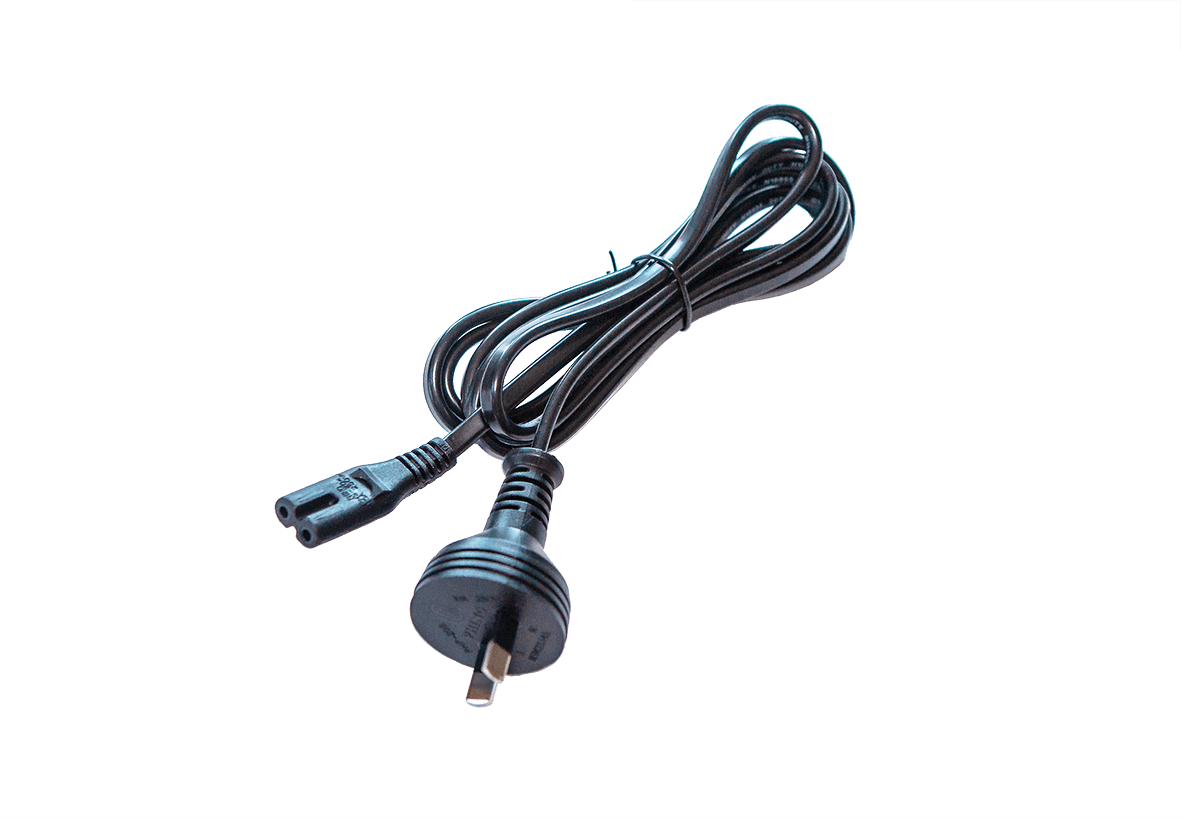

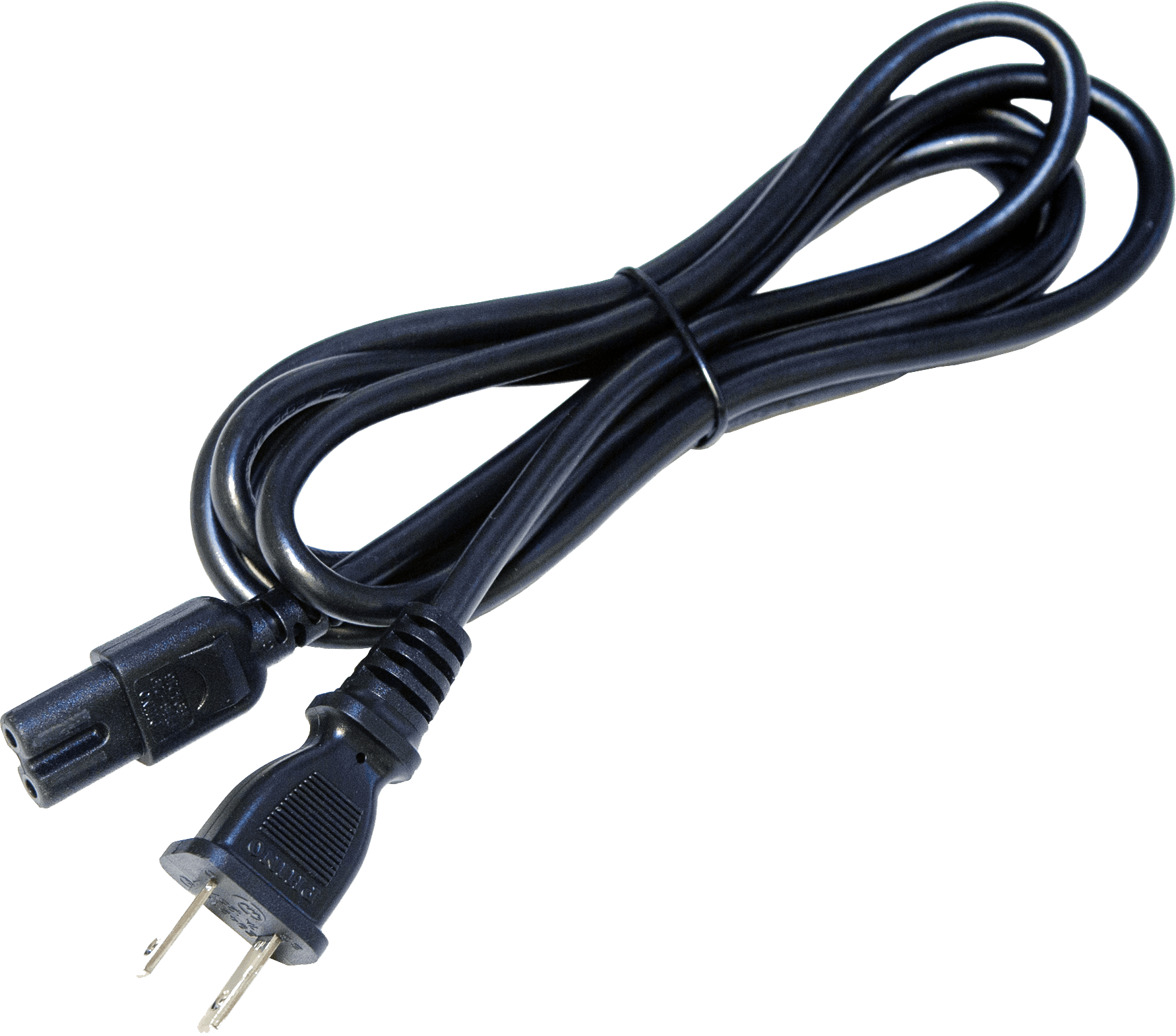

Order plugs & mains cord separately

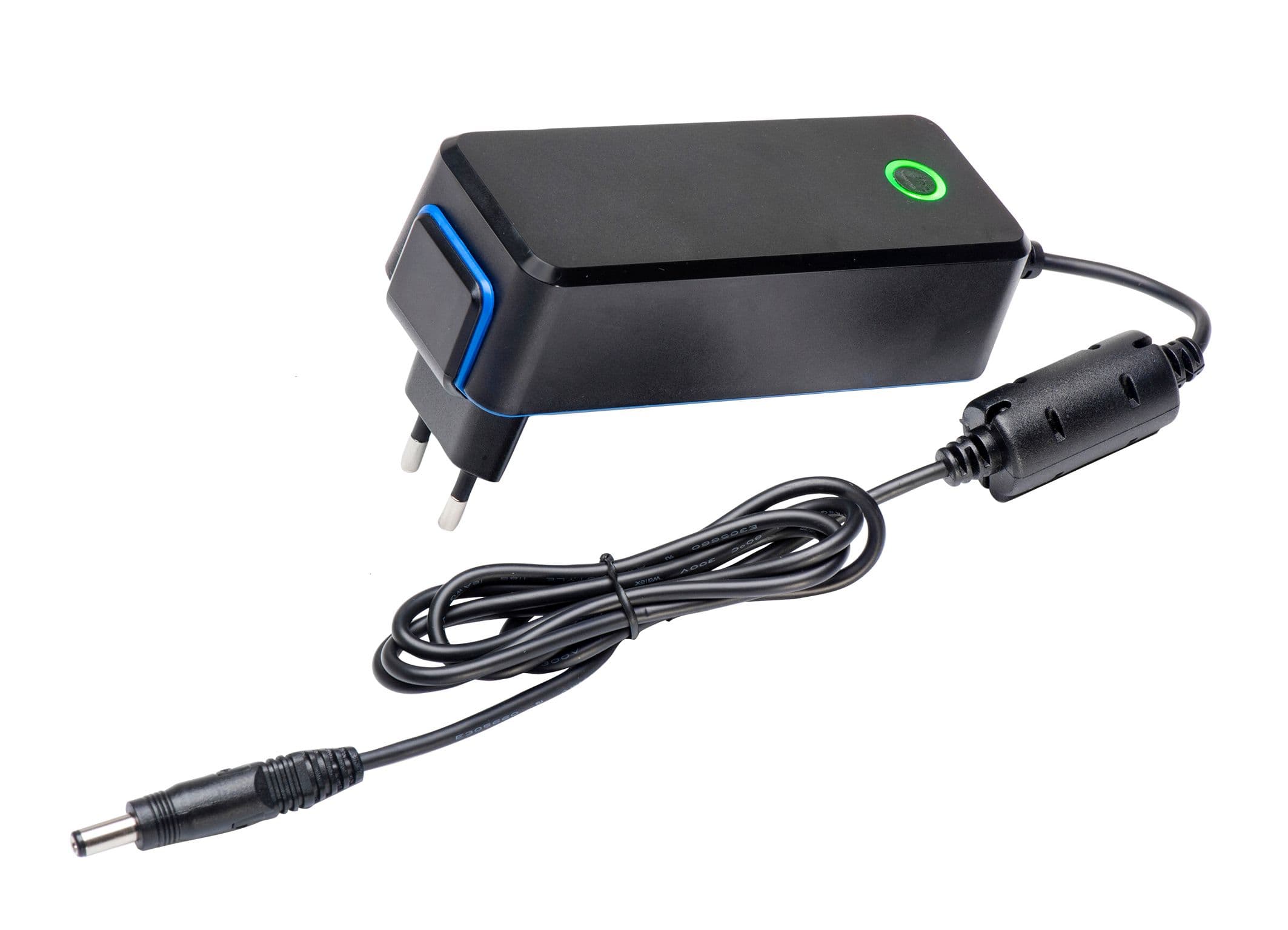

Standard DC output cord (for exch. plugs): 0,75m, EMI Core, Coax Inner=16AWG Outer=18AWG, UL1185
With NTC input on request
Animation showing charge error indications:
https://vimeo.com/679995332
