Charge guide Li-Ion method D
3540 LI

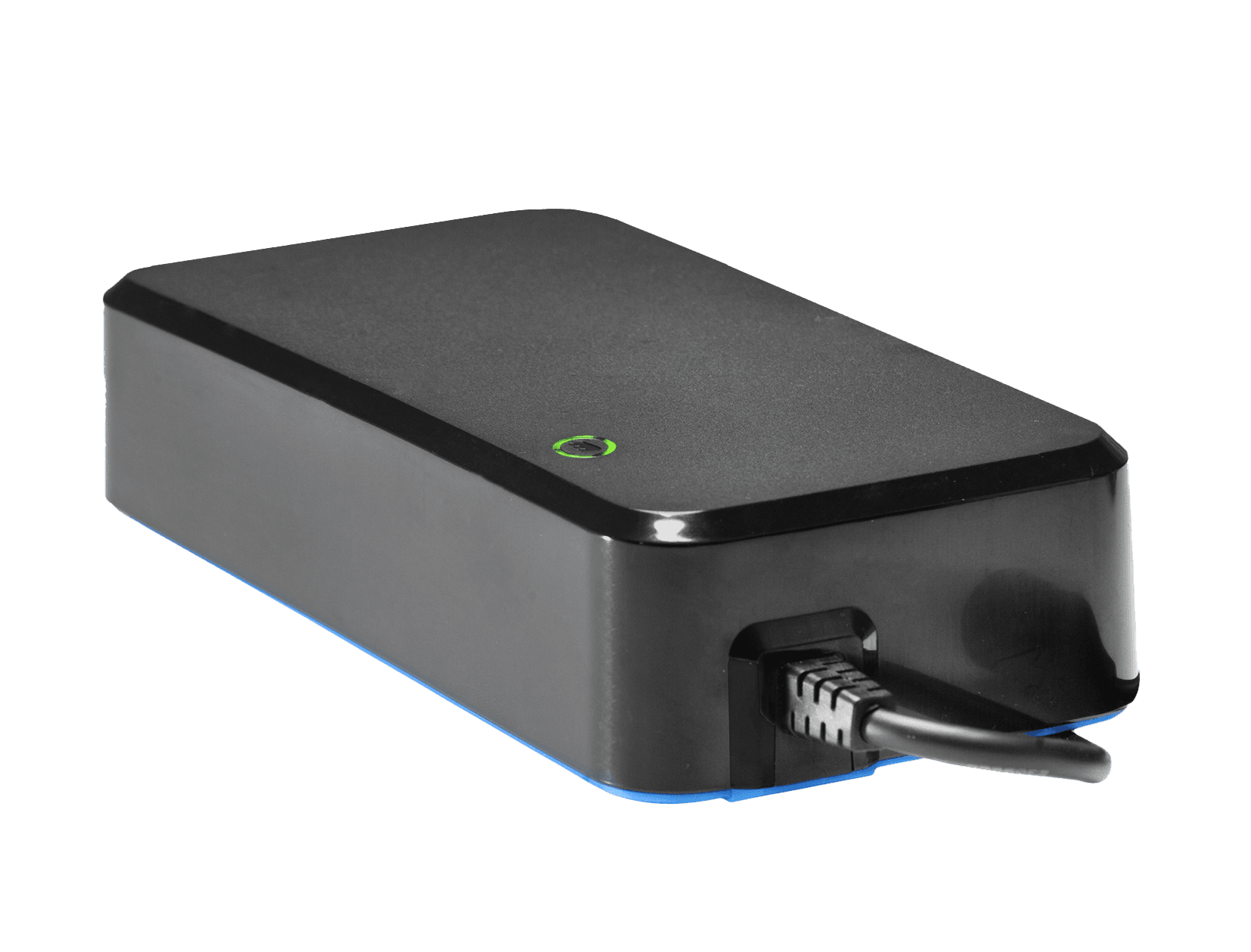

Desktop charger Li-Ion batt. max. 10 A
Product Information
3-step charge control with current detection
Input voltage 198-264 VAC. 115 VAC versions available.

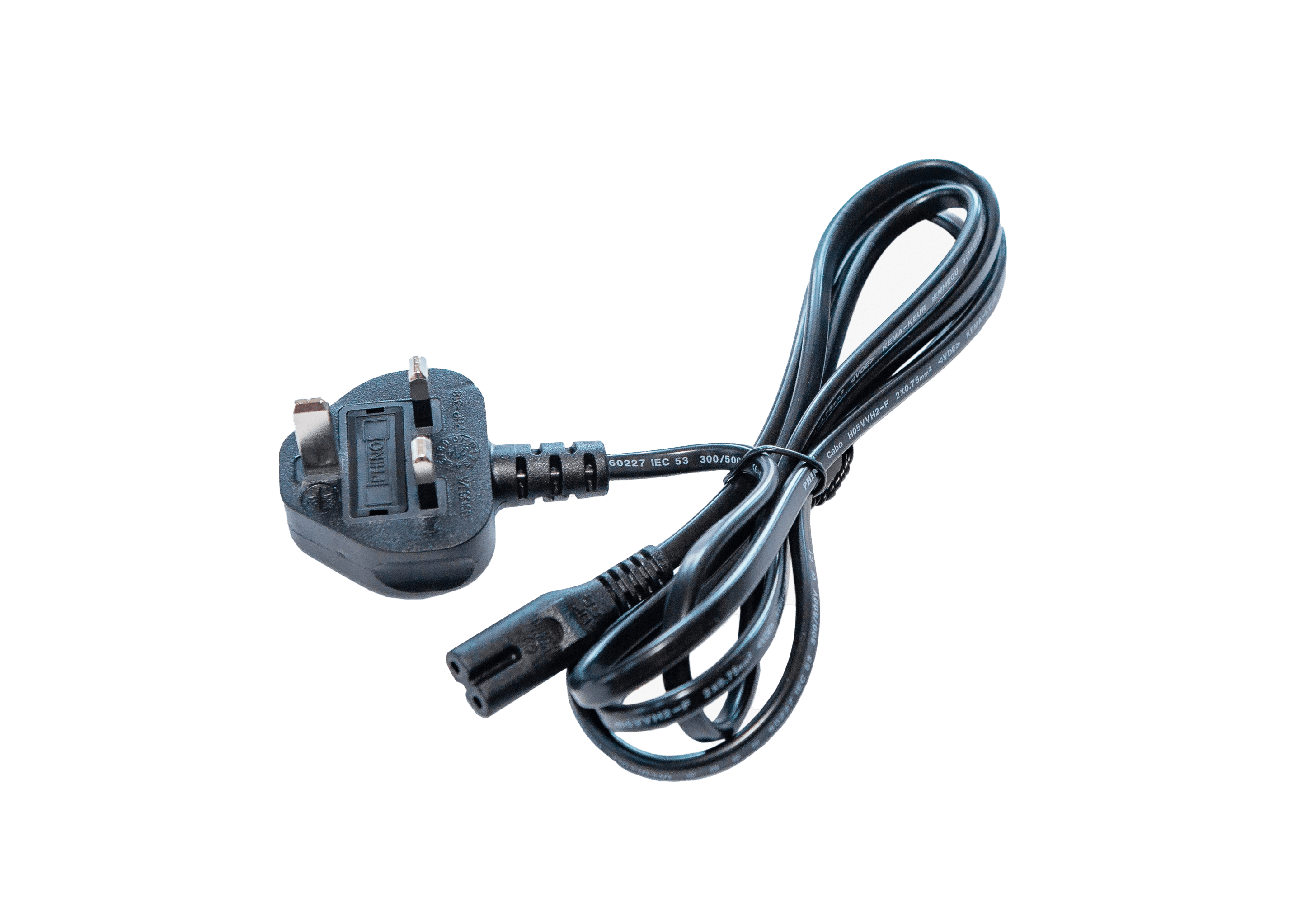

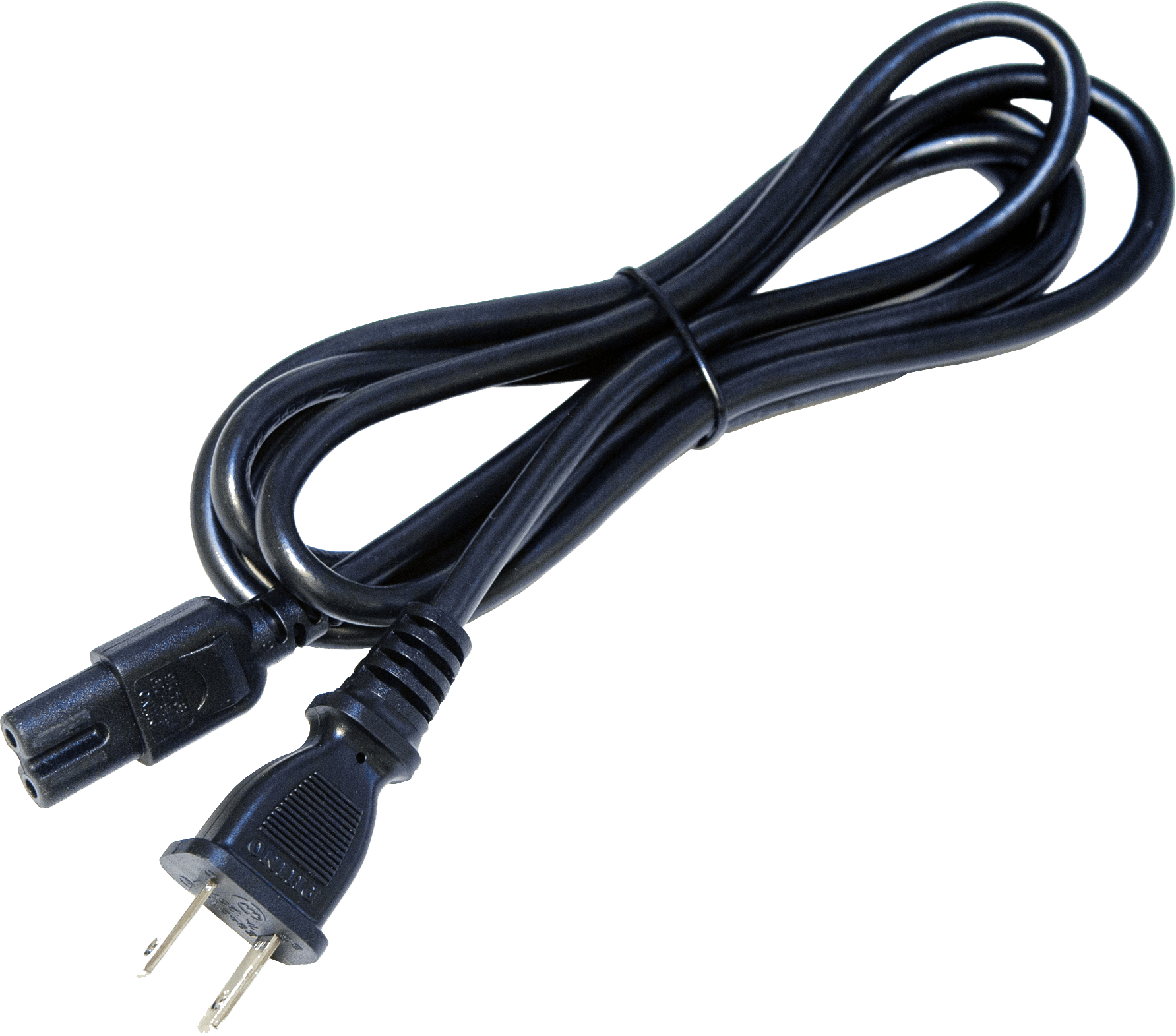

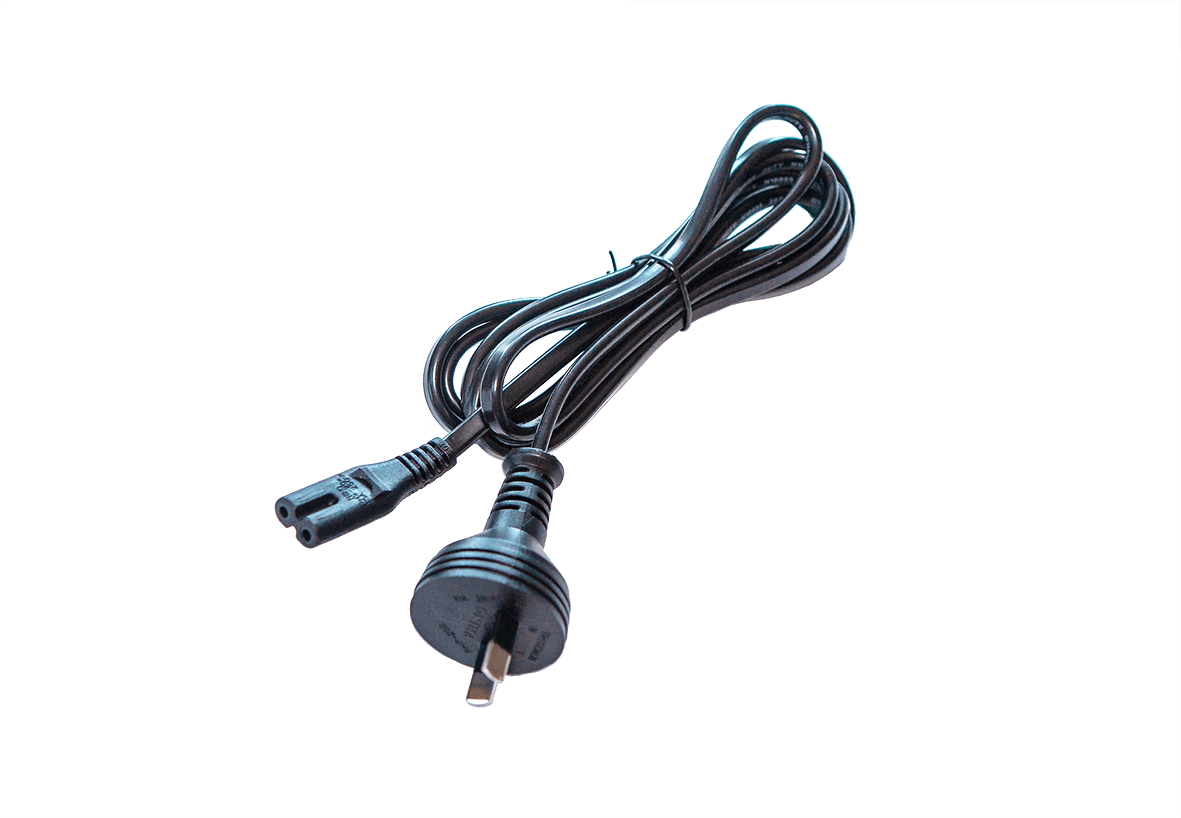

Fixed mains cable, 2-pin IEC 60320 available
Output terminal: cord w. open ends, XLR output plug for wheelchairs and scooters available
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Approvals
Medically certified
Safety: EN 60601-1 ed. 3.1
Home healthcare EN 60601-1-11 (fixed cord vers. only)
EMC: EN 60601-1-2 ed. 4
UL approved
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information: custom design info sheet
Available versions
- 3-cell
- 4-cell
- 6-cell
- 7-cell
- 8-cell
- 9-cell
- 10-cell
- 11-cell
- 12-cell
- 13-cell
- 14-cell
Notes
- Desktop unit

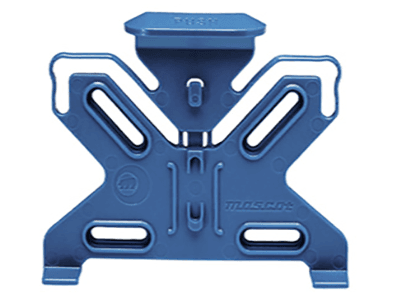

- Mounting bracket included
- With NTC input on request
- 2MOOP standard, 2MOPP available (3540P)
- Std. DC output cord:
- Open ends, L 1.1m, AWG 13, Black PVC, UL 1185
