Charge guide Lead Acid method D/E
3540 LA

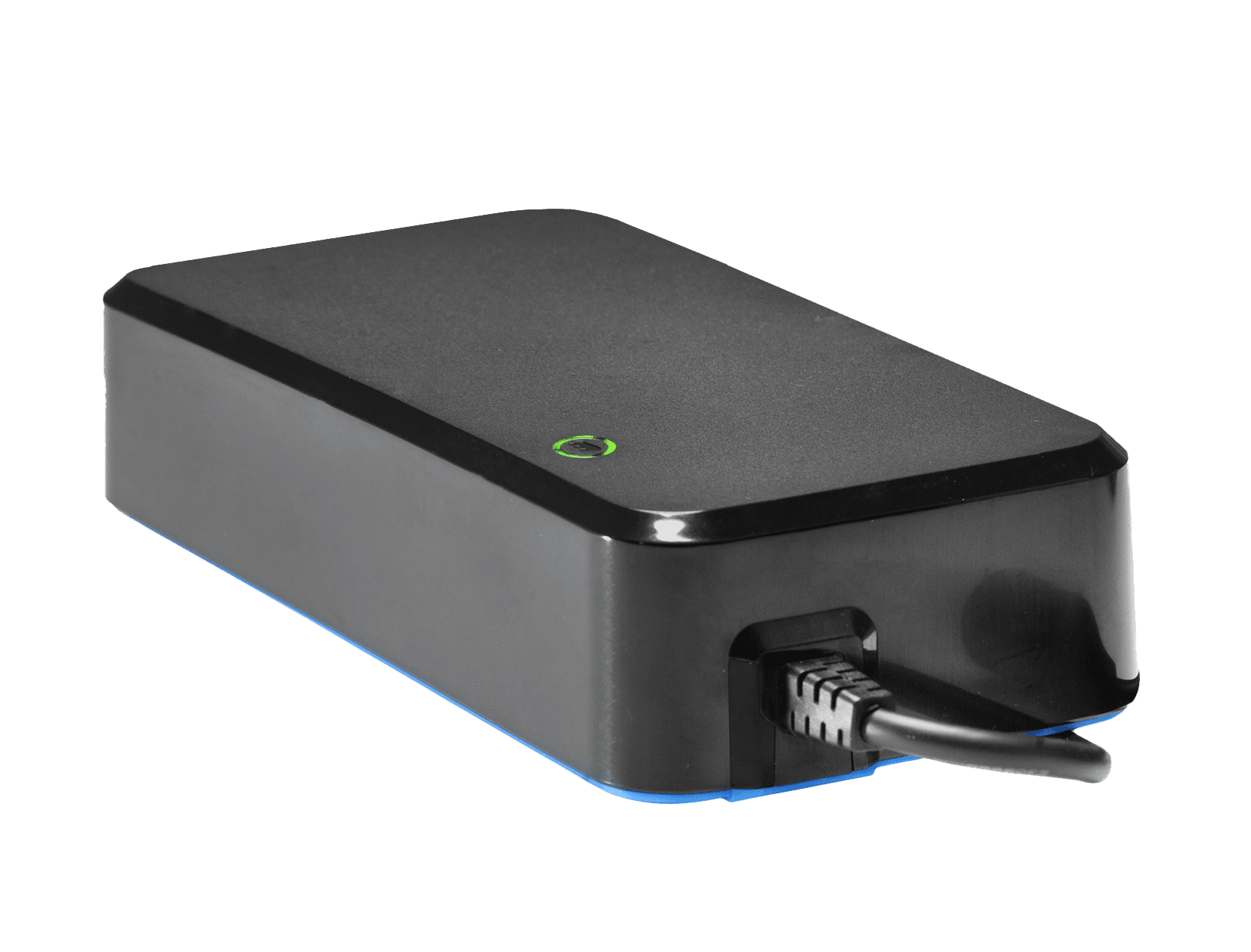

Desktop charger Lead Acid batt. max. 20A
Product Information
3-step charge control with current detection
XLR output plug for wheelchairs and scooters available
Input voltage 198-264 VAC. 115 VAC versions available.
Fixed mains cable, 2-pin IEC 60320 available
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Approvals
Medically certified
Safety: EN 60601-1 ed. 3.1
Home healthcare EN 60601-1-11 (fixed cord vers. only)
EMC: EN 60601-1-2 ed. 4
UL approved
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information: custom design info sheet
Notes
- Desktop unit
- Mounting bracket included
- 2MOOP standard, 2MOPP available (3540P)

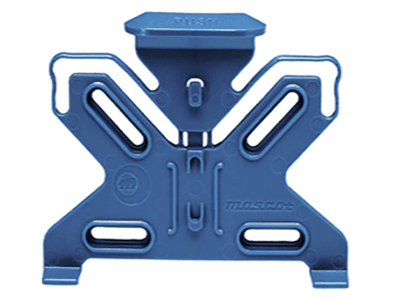

Wall Mount Bracket 205800
Art. no:
205800
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Cable Conn Cord from charger 131685
Art. no:
131685
Exch DC Cable Conn Cord to battery 131686
Art. no:
131686
Exch DC Cable Conn Cord to battery Ring 131687
Art. no:
131687
