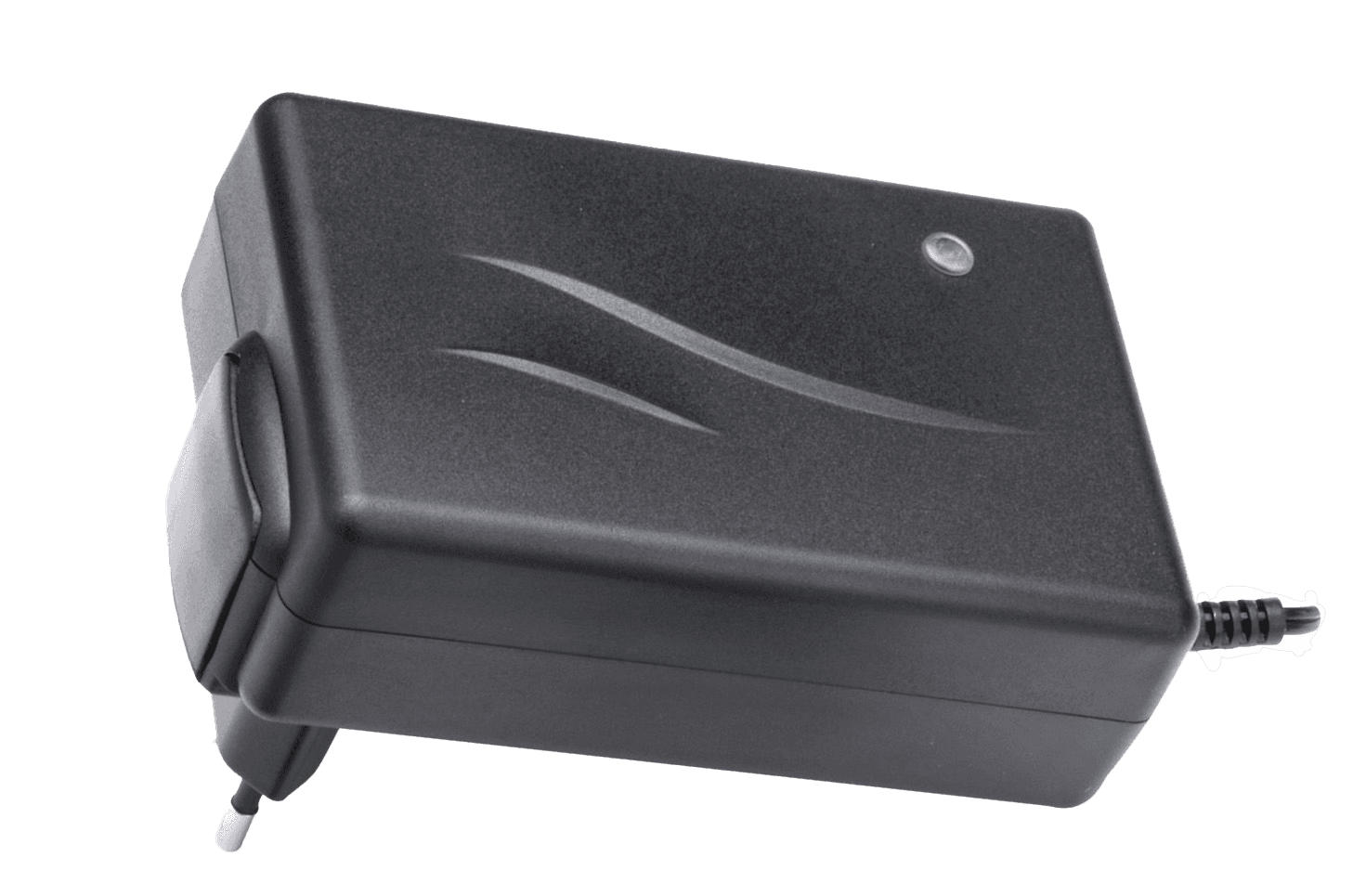

2542 LiFe
Plug-in charger LiFePO4 batt. max. 2,7A
Product Information
3-step charge control with current detection as charge termination
Universal input voltage (90-264 VAC)
Waterproof (IP67) version available
Approvals
Medically certified
Safety: EN 60601-1 ed. 3.1
EMC: EN 60601-1-2 ed. 4
UL approved
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information: custom design info sheet
Available versions
* On request- 1 Cell *
- 2 Cells *
- 3 Cells *
- 4 Cells *
- 5 Cells *
- 6 Cells *
- 7 Cells *
- 8 Cells *
- 9-cell *
- 10-cell *
- 11-cell *
- 12-cell *
- 13-cell *
- 14-cell *
- 15-cell *
- 16-cell *
Notes
- Plug-in unit (desktop unit available - 2541)
- Exchangeable AC and DC plugs available
- Standard DC output cord (exch. DC plugs):
- Female connector L 1.8m, AWG 18, OD: 2.7 X 5.4 Black w. white line, UL 2468
- Order plugs and mains cord separately
- Mounting bracket available
Accessories

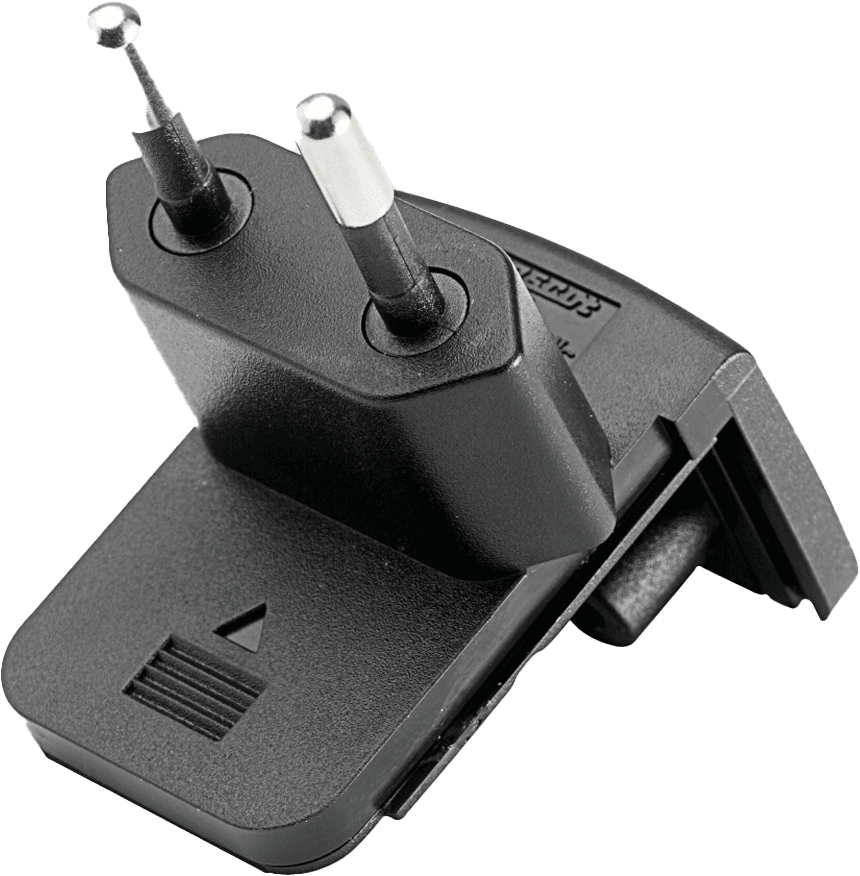

Exch AC Plug EU 018110
Art. no:
018110

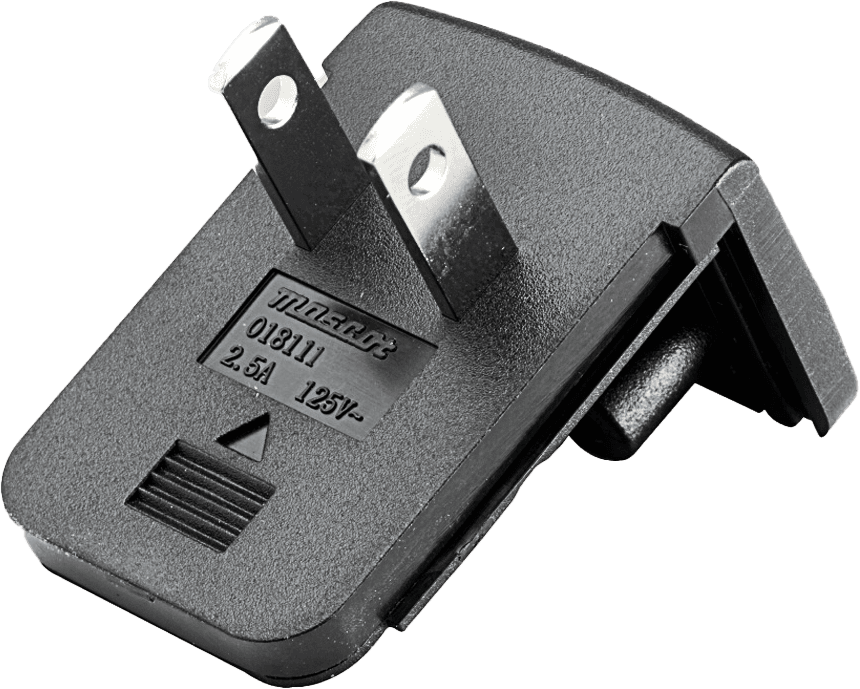

Exch AC Plug US 018111
Art. no:
018111

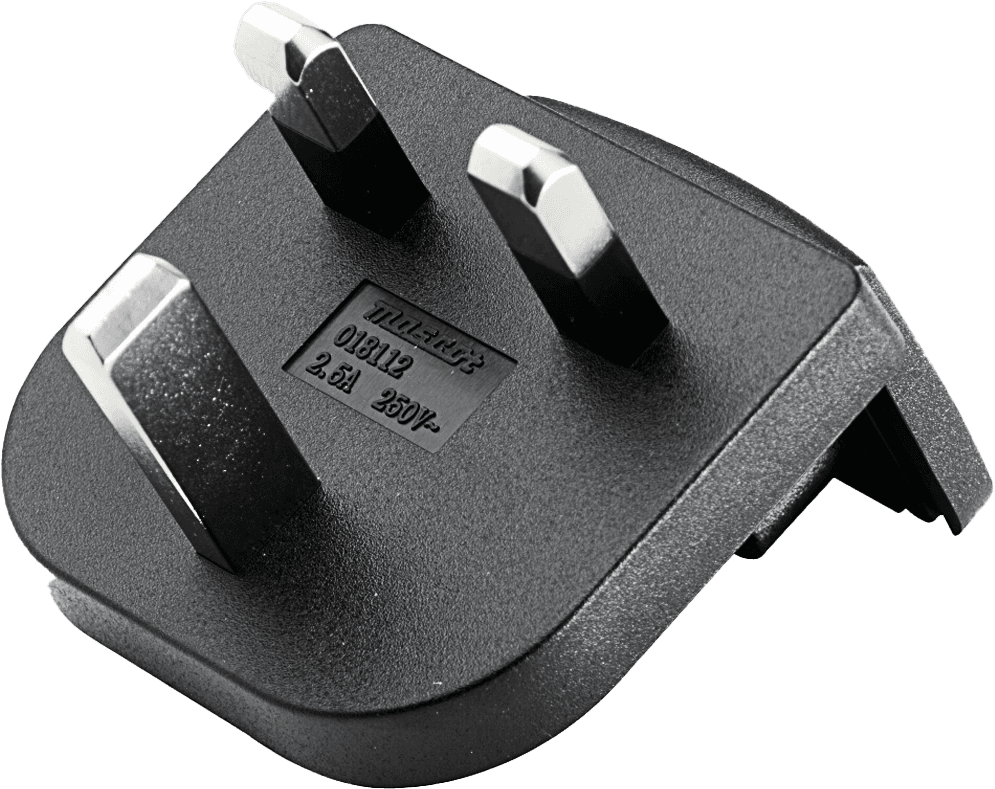

Exch AC Plug UK 018112
Art. no:
018112

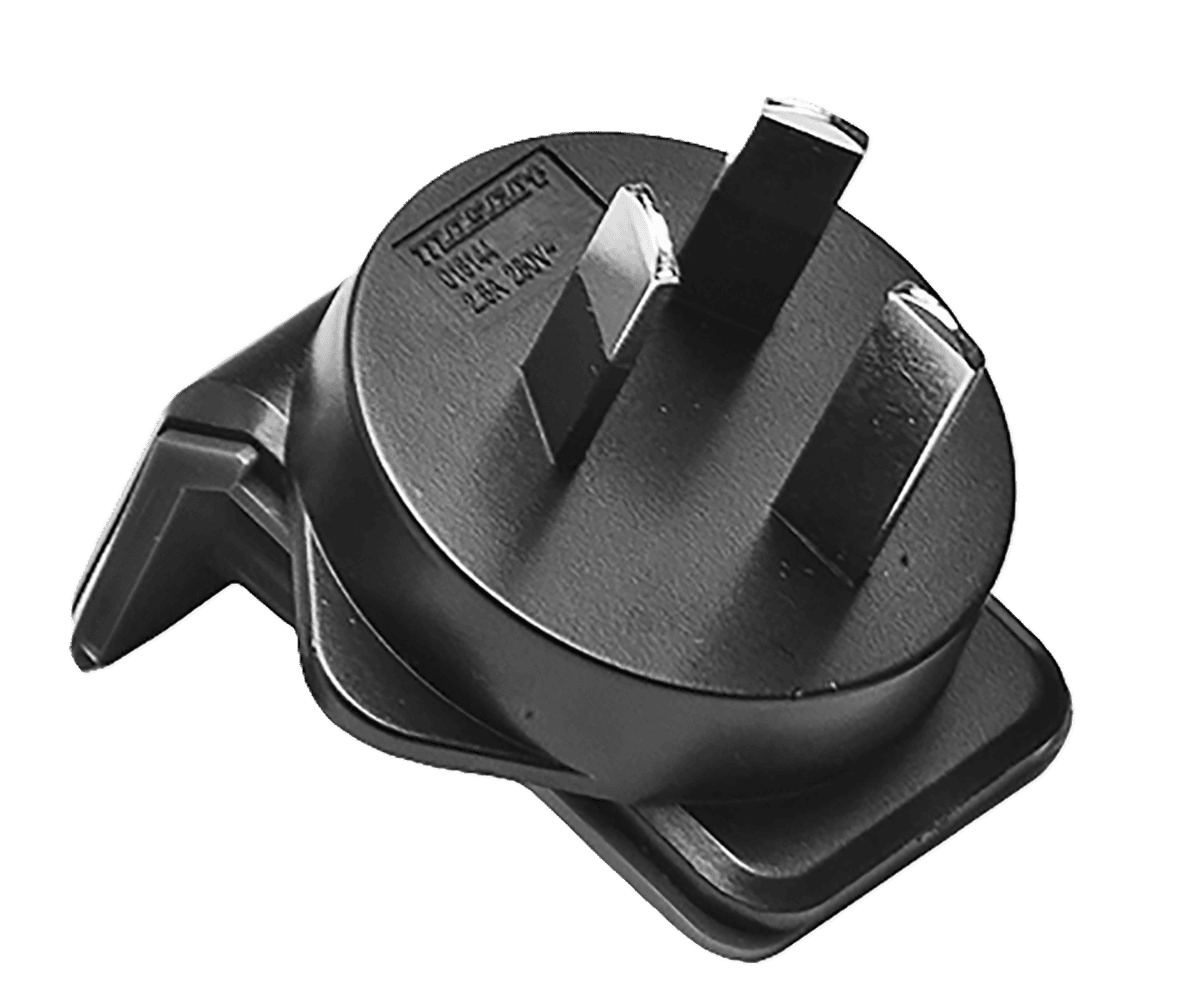

Exch AC Plug AUS 018114
Art. no:
018114
Wall Mount Bracket Type M 201565
Art. no:
201565
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131119
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
