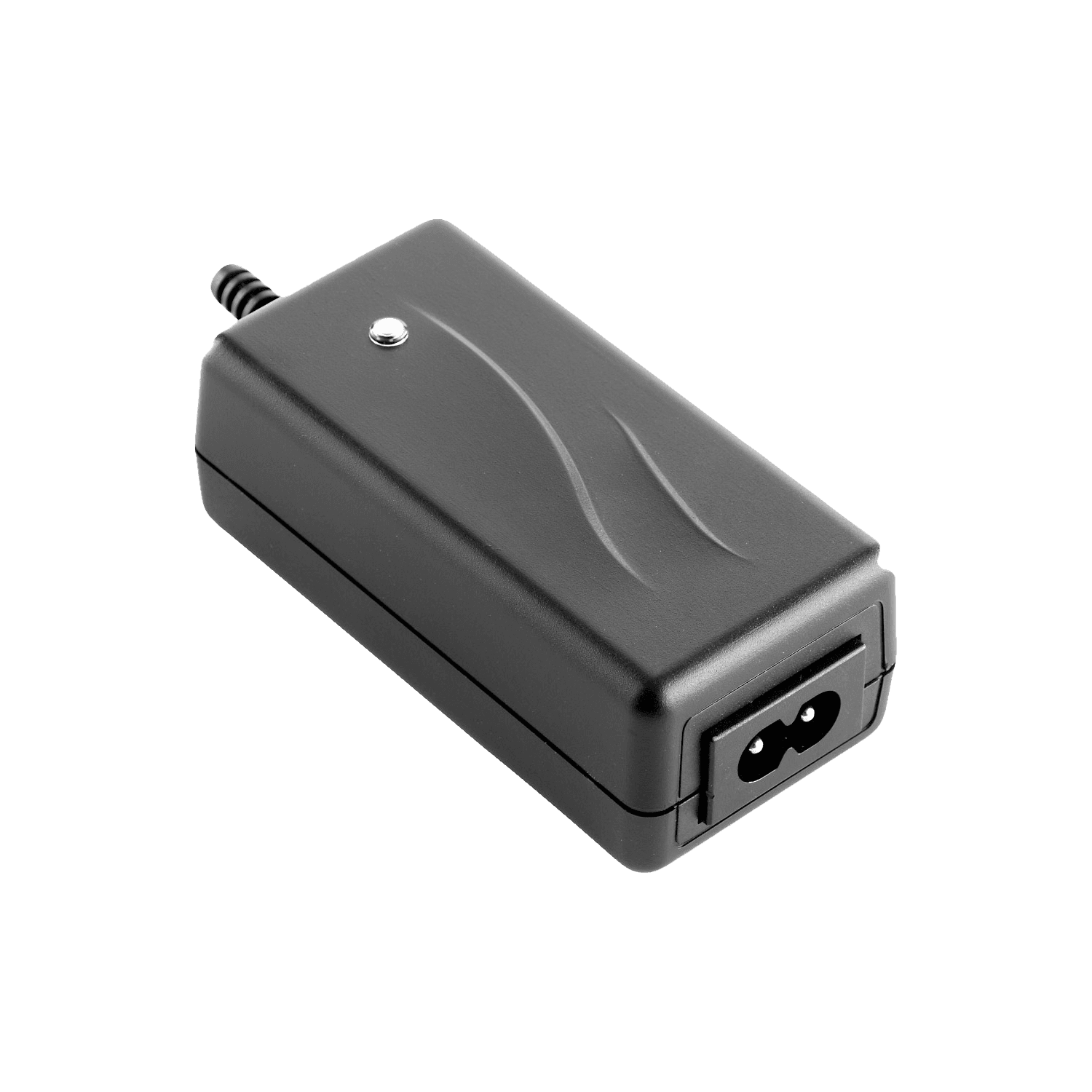

2115 NiMH
Desktop charger NiMH batt. max. 16W
Product Information
Universal input voltage (90-264 VAC)
Approvals:
Medically certified EN60601 3ed
Computer Programmable Microprocessor (CPM)
CPM offers the following charge detection options (one or more):
dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold,
Temperature gradient adjustment
Approvals
Medically certified
Safety: EN 60601 3ed
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information: custom design info sheet
Notes
- Notes:
- Desktop unit
- Exchangeable DC plugs available
- Standard DC output cord (exch DC plugs):
- Female conn. L 1,8m, AWG 20,UL 2468
- Mounting bracket available
- Order plugs and mains cord separately
Accessories

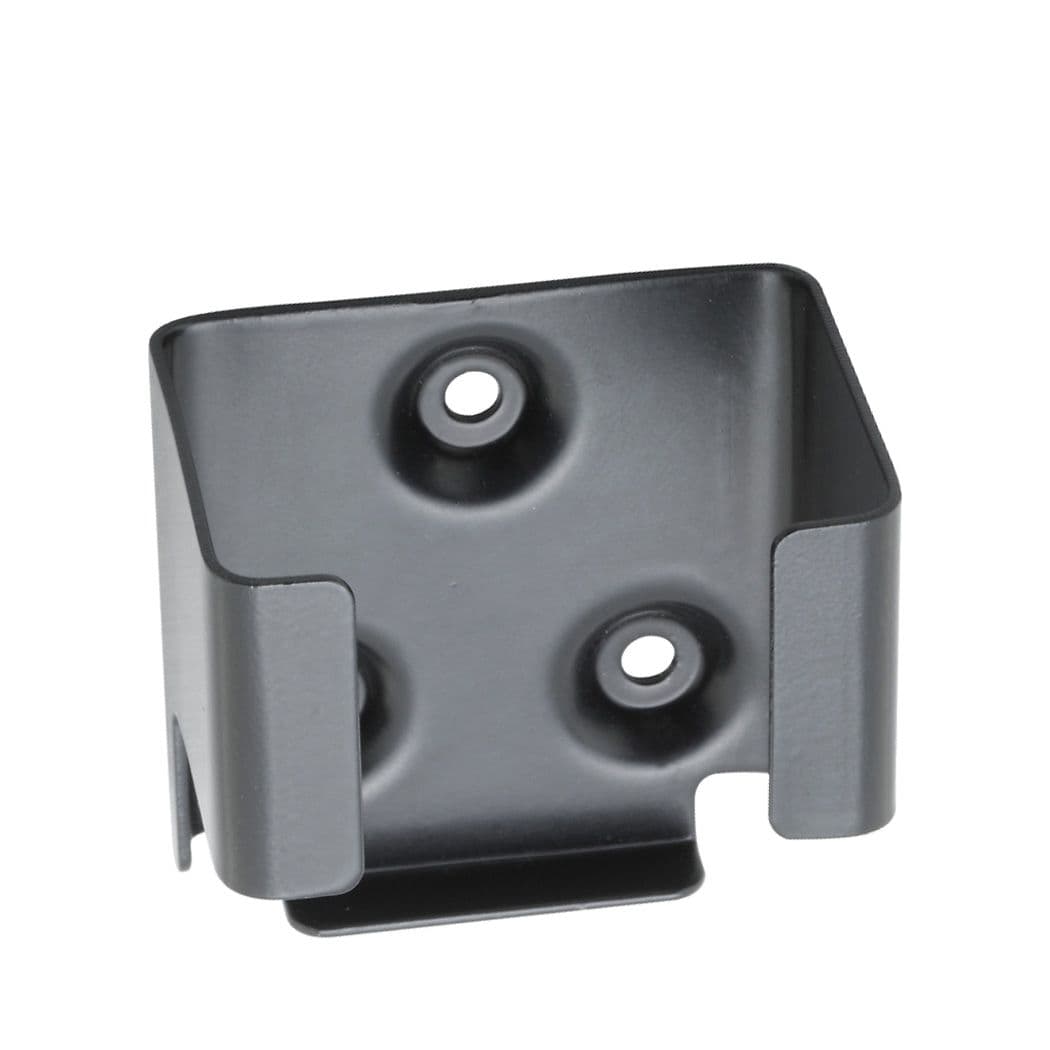

Wall Mount Bracket Type S 202906
Art. no:
202906
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131119
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
