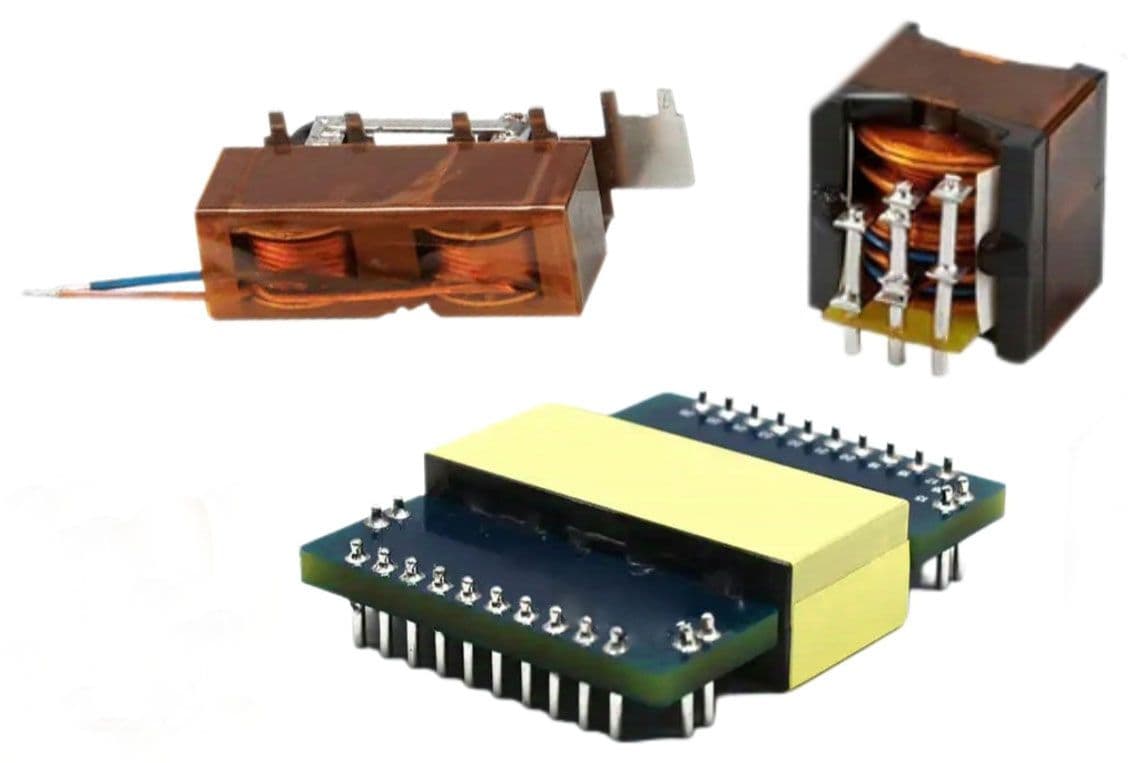

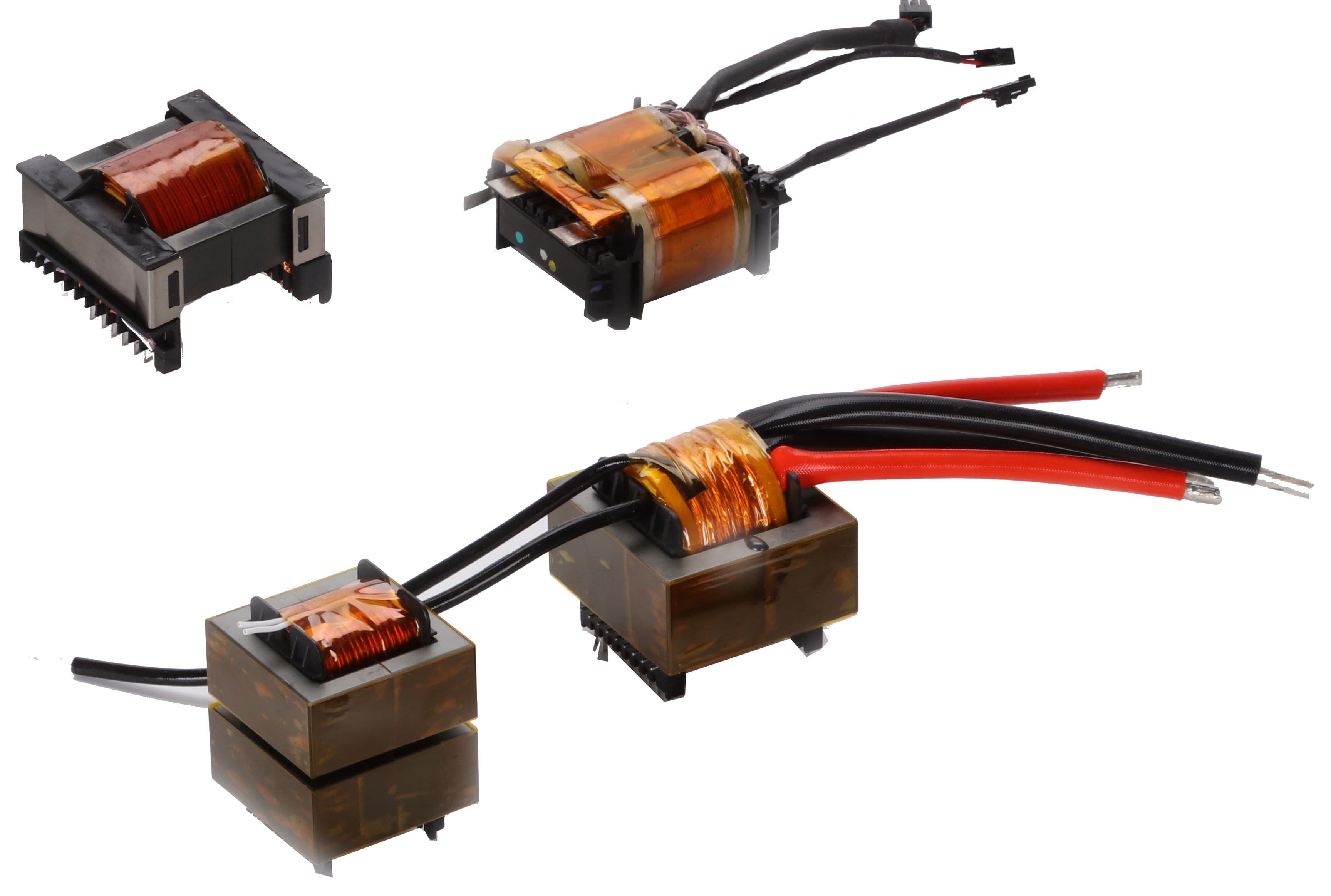

Transformers
Working together with ferrite coil customers, bobbin and ferrite core suppliers, Mascot transformers can be manufactured from various ferrite cores shapes and sizes, including a bobbin as part of the structure. In addition, we have broad experience in developing and manufacturing transformers designed from customer’s own specifications.
| Max out | Model number | Thumbnail | Notes |
Available Versions
On request
|
|---|---|---|---|---|
| 28W | EFD20 |
|
Application Flyback Mount type: THT Input voltage:90-264V Number of Outputs: 1 - 3 Secondary voltage rating: 4.2V - 54.6V Inductance 1.85mH/800uH |
1.85mH / 6.3W
800mH / 28W
|
| 28W | EFD25 |
|
Application: Flyback Mount type: THT Input voltage:90-264V Number of Outputs: 1 - 3 Secondary voltage rating: 4.2V - 54.6V Inductance: 1.25mH |
1.25mH / 6W
1.25mH / 6.3W
1.25mH / 12W
1.25mH / 12.6W
1.25mH / 16.8W
|
| 42W | PQ2620 |
|
Application: Flyback Mount type: THT Input voltage: 90-264V Number of Outputs: 1- 2 Secondary voltage rating: 5.0V - 28V Inductance: 450uH/1050uH |
1050uH / 28W
450uH / 42W
|
| 42W | PQ3220 |
|
Application: Flyback Mount type: THT Input voltage: 90-264V Number of Outputs: 1 - 2 Secondary voltage rating: 5.0V - 24V Inductance: 950uH |
950uh / 42W
|
