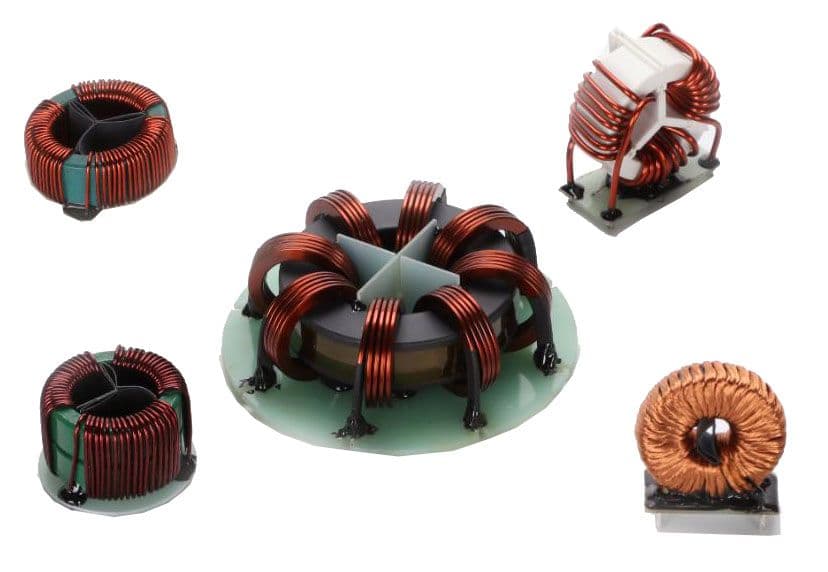

Model CV360F

12A max out

  • The core is made of Ferrite
  • Decrease the noise by using at 10kHz to 200MHz
  • It is mainly applied in AC inductor, converter, switch power supplies, EMC filter, wind power,householding appliances
  • Working at -40℃ to +125℃
Request for quote ›

Core material: Ferrite

Inductance: 1.0mH-10.0mH

DC resistance(mΩ): 5.0-150.0

PCB Hole(mm): ø0.7/ø0.8/ø1.0/ø1.2/ø1.5/ø1.8

Operating temp: -40℃ to +125℃

Available versions

1mH / 12A
1.5mH / 8A
3mH / 5A
5mH / 3A
6mH / 2A
10mH / 1A
