Chokes

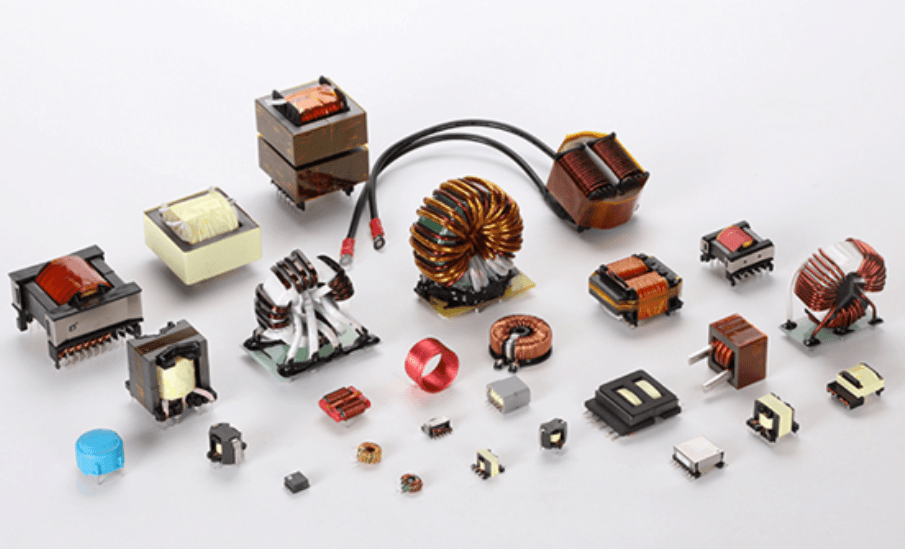

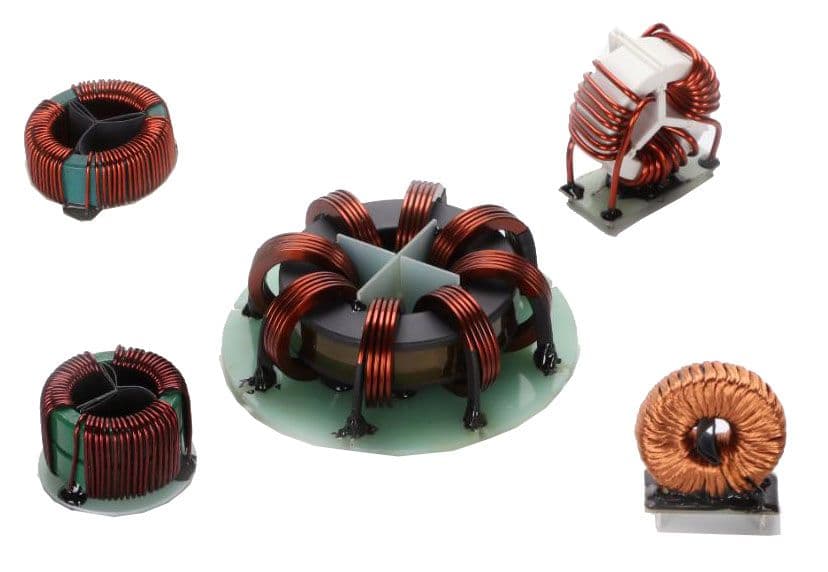

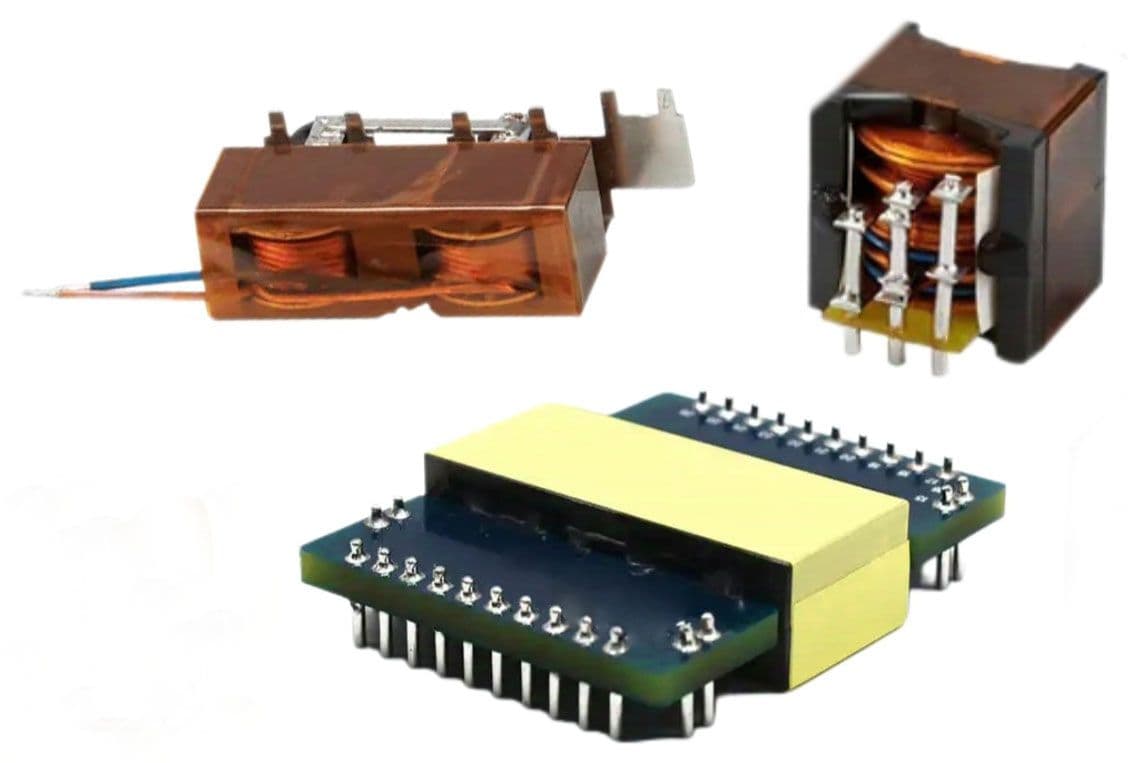

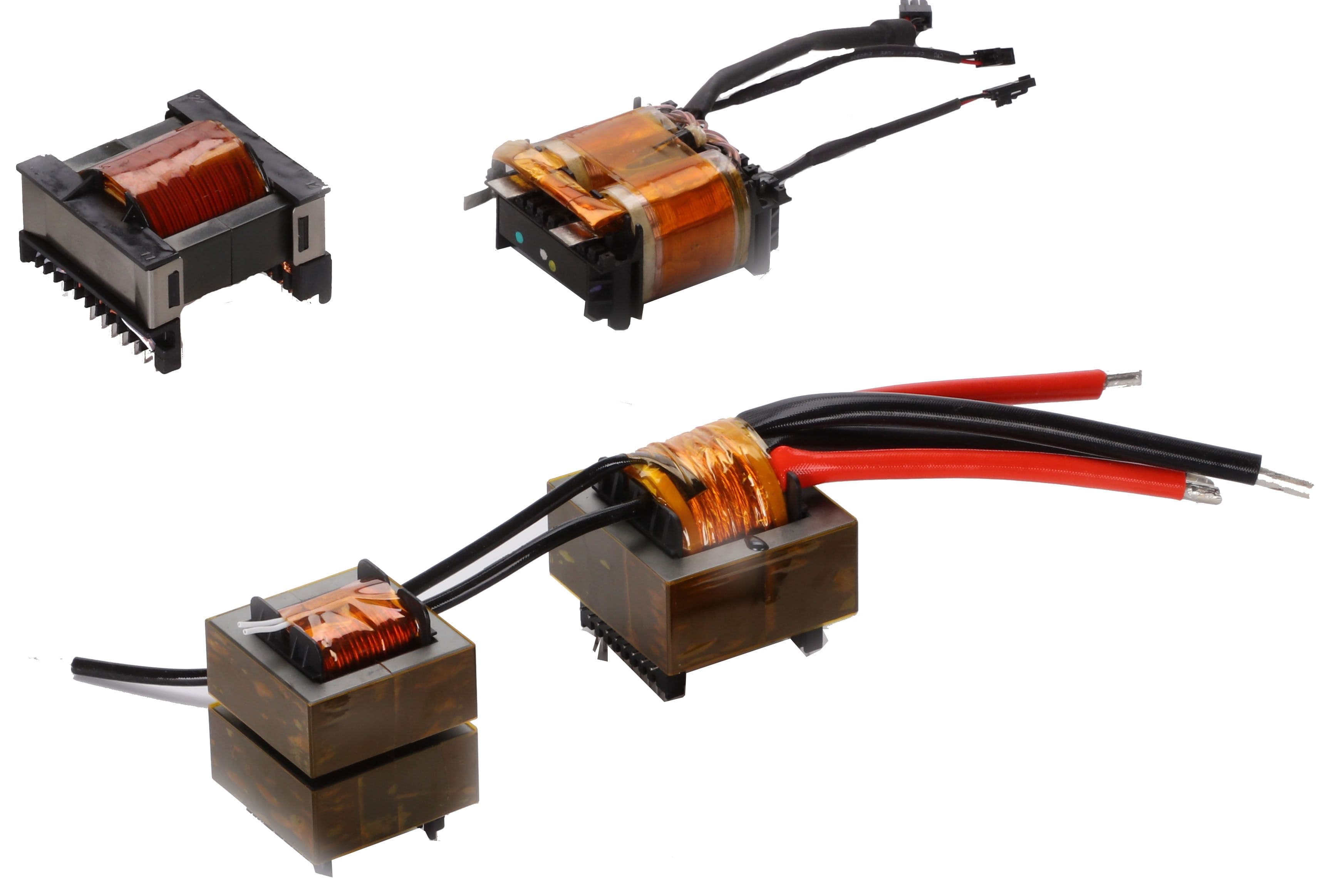

Mascot has over 50 year’s experience in designing and manufacturing wound components. Here are the Mascot Choke and Inductor Series. Choose from one of our standard types or ask for a custom type designed from your specifications.

Model CV148F

1,39A Max out

Core material: Mn-Zn Ni-Zn

Inductance: 2.2mH-68.0mH

PCB Hole(mm): Ø1.0

Operating temp: -40°C to +125°C

Common mode choke

More

Model CV100F

6,4A Max out

Core material Mn-Zn

Inductance 12uH - 25uH

DDC resistance 3.35mRΩ - 10mΩ

PCB Hole(mm): Ø1.2

Operating temp. -40°C to +125°C

Common mode choke

More

Model CV120F

6,4A Max out

Core material: Mn-Zn Ni-Zi

Inductance: 0.22mH - 3.0mH

DC resistance: 5.0mΩ

PCB Hole(mm): Ø0.12

Operating temp.: -40°C to +125°C

Common mode choke

More

Model CV130F

4A Max out

Core material: Mn-Zn Ni-Zi

Inductance: 3.0mH

DC resistance: 35mΩ-5.0mΩ

PCB Hole(mm): Ø0.9/Ø0.8

Operating temp: -40℃ to +125℃

Common mode choke

More

Model CV160F

3A Max out

Core material: Ferrite

Inductance: 1.5mH-10.0mH

DC resistance(mΩ): 10.0-130

PCB Hole(mm): Ø1.0

Operating temp: -40℃ to +125℃

Common mode choke max 3A

More

Model CV160N

5,0A Max out

Core material: Nanocrystalline

Inductance: 8.0mH-20.0mH

DC resistance: 10.0Max/20.0Max/100.0Max

PCB Hole(mm): ø0.7/ø1.0/ø1.2

Operating temp: -65℃ to +125℃

Common mode Choke Max 5.0A

More

Model CV180F

4A Max out

Core material: Mn-Zn, Ni-Zn

Inductance: 20.0mH-25.0mH

DC resistance(mΩ):120/125

PCB Hole(mm): ø0.85/ø0.9

Operating temp: -65℃ to +125℃

Common mode choke max. 4A

More

Model CV200N

4A Max out

Core material: Nanocrystalline

Inductance:  1.0mH-82.0mH

DC resistance(mΩ): 3.0-170.0

PCB Hole(mm): Ø1.2

Operating temp:-40℃ to +125℃



Common mode choke max 4A

More

Model CV220F

15,0A Max out

Core material: Ferrite

Inductance: 1.0mH-15.0mH

DC resistance(mΩ): 1.0-140.0

PCB Hole(mm): ø1.2

Operating temp: -40℃ to +125℃

Common mode choke max. 15A

More

Model CV250F

20A Max out

Core material: Ferrite

Inductance: 2.2mH-10.0mH

DC resistance(mΩ): 5.0-150.0

PCB Hole(mm): ø0.7/ø0.8/ø1.0/ø1.5/ø2.0

Operating temp: -40℃ to +125℃

Common mode choke max. 20A

More

Model CV250F Encap

5A Max out

Core material: Ferrite

Inductance: 470uH-10.0mH

DC resistance(mΩ): 40.0-150.0

PCB Hole(mm): ø1.2

Operating temp: -40℃ to +125℃

Common mode choke max. 5A

More

Model CV310F

20A Max out

Core material: Ferrite

Inductance: 1.0mH-20.0mH

DC resistance(mΩ): 0.02-50.0

PCB Hole(mm): ø0.8/ø1.2/ø1.5/ø1.8/ø2.2

Operating temp: -40℃ to +125℃

Common mode choke max 20A

More

Model CV360F

12A Max out

Core material: Ferrite

Inductance: 1.0mH-10.0mH

DC resistance(mΩ): 5.0-150.0

PCB Hole(mm): ø0.7/ø0.8/ø1.0/ø1.2/ø1.5/ø1.8

Operating temp: -40℃ to +125℃

Common mode choke max 12A

More

Model CVU10F

1A Max out

Core material: Ferrite Core

Inductance: 18mH-30mH

DC resistance(mΩ): 3100.0-5500.0

PCB Hole(mm): ø1.0

Operating temp: -40℃ to +125℃

Common mode choke max 1A

More

Model CVU98F

1A Max out

Core material: Ferrite Core

Inductance: 1.8mH-30.0mH

DC resistance(mΩ): 310.0-2000.0

PCB Hole(mm): ø1.0

Operating temp: -40℃ to +125℃

Common mode choke max. 1A

More

Model NV080I

5A Max out

Core material: Iron Power

Inductance: 100uH-1.0mH

DC resistance(mΩ): 35.0-800.0

PCB Hole(mm): ø0.5/ø0.7/ø1.0/ø1.2

Operating temp: -40℃ to +125℃

Choke, Iron powder core, max. 5A

More

Model NV090I

20A Max out

Core material: Iron Power

Inductance: 10uH-470uH

DC resistance(mΩ): 4.5-350.0

PCB Hole(mm):ø0.6/ø1.2/ø1.5/ø2.0

Operating temp: -65℃ to +125℃

Choke, Iron powder core, max. 20A

More

Model NV090S

20A Max out

Core material: Sendust

Inductance: 5.0uH-680uH

DC resistance(mΩ): 3.5-1000.0

PCB Hole(mm): ø0.6/ø0.8/ø1.2/ø1.5/ø2.0

Operating temp: -65 to℃ +125℃

Choke, Sendust core, max. 20A

More

Model CV106I

20A Max out

Core material: Iron Power

Inductance: 5.0uH-100uH

DC resistance(mΩ): 2.0-170.0

PCB Hole(mm): ø0.6/ø0.8/ø1.0/ø1.3/ø2.2

Operating temp: -65℃ to +125℃

Choke, iron power core, max. 20A

More

Model NV106S

30A Max out

Core material: Sendust

Inductance:5.6uH-100.0uH

DC resistance(mΩ): 2.0-20.0

PCB Hole(mm): ø1.5/ø1.8/ø2.0/ø2.2/ø2.5/ø2.8

Operating temp: -40℃ to +125℃

Choke, Sendust core, max. 30A

More

Model NV130I

20A Max out

Core material: Iron Powder

Inductance: 10.0uH-1.5mH

DC resistance(mΩ): 3.0-450.0

PCB Hole(mm): ø0.7ø01.2/ø1.5/ø2.0

Operating temp: -65℃ to +125℃

Choke, iron powder core, max 20A

More

Model NV130S

20,0A Max out

Core material: sendust

Inductance: 10.0uH-2.2mH

DC resistance(mΩ): 4.0-1200.0

PCB Hole(mm): ø0.7/ø1.0/ø1.2/ø1.5/ø2.0

Operating temp: -65℃ to +125℃

Choke, sendust core, max. 20A

More

Model NV157S

20A Max out

Core material: sendust

Inductance: 90.0uH-810uH

DC resistance(mΩ): 10.0-320.0

PCB Hole(mm): ø0.7/ø0.8/ø1.2/ø1.7/ø2.2

Operating temp: -65℃ to +125℃

Choke, sendust core, max. 20A

More

Model NV184I

20A Max out

Core material: iron powder

Inductance: 150.0uH-1000.0uH

DC resistance(mΩ): 15.0-330.0

PCB Hole(mm): ø0.8/ø0.9/ø1.2/ø1.8/ø3.0

Operating temp: -65℃ to +125℃

Choke, iron powder core, max. 20A

More

Model NV200I

30A Max out

Core material: iron powder

Inductance: 100.0uH-680.0uH

DC resistance(mΩ): 5.5-60.0

PCB Hole(mm): ø1.5/ø1.8/ø2.0/ø2.2/ø2.5/ø2.8

Operating temp: -65℃ to +125℃

Choke, iron powder core, max. 30A

More

Model NV200N

6A Max out

Core material: nanocrystalline

Inductance: 1.0mH-20.0mH

DC resistance(mΩ): 15.0-220.0

PCB Hole(mm):  ø0.6/ø0.8/ø1.0/ø1.2/ø2.2

Operating temp: -65℃ to +125℃

Choke, nanocrystalline core, max. 6A

More
