Chokes

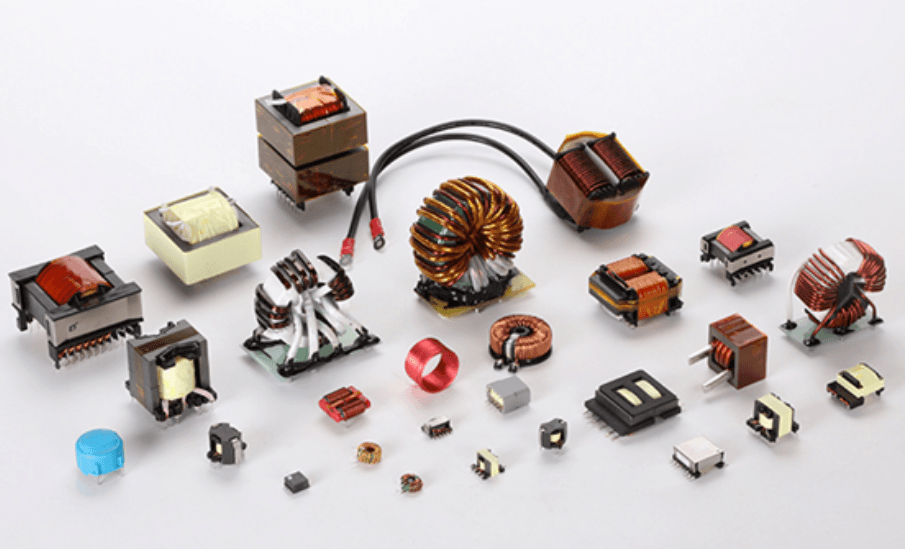

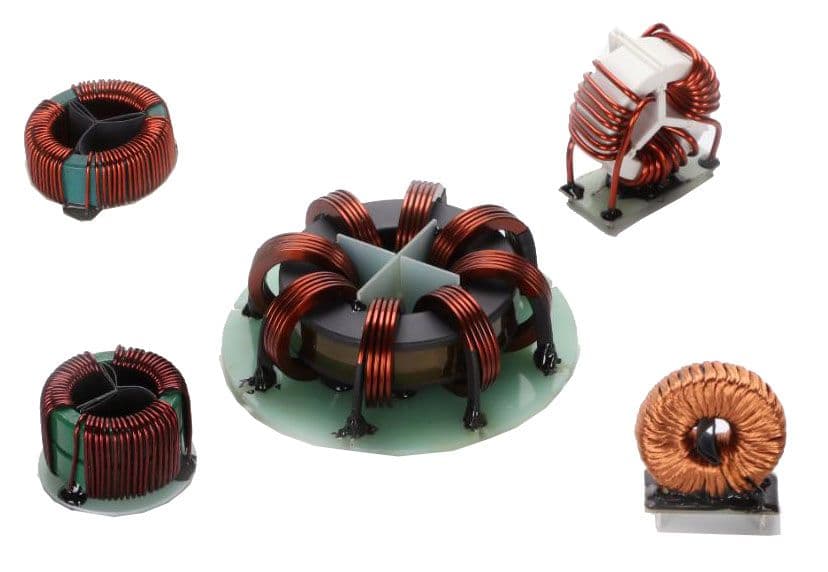

Mascot has over 50 year’s experience in designing and manufacturing wound components. Here are the Mascot Choke and Inductor Series. Choose from one of our standard types or ask for a custom type designed from your specifications.
| Max out | Model number | Thumbnail | Notes |
Available Versions
On request
|
|---|---|---|---|---|
| 1.39A | CV148F |
|
Core material: Mn-Zn Ni-Zn Inductance: 2.2mH-68.0mH PCB Hole(mm): Ø1.0 Operating temp: -40°C to +125°C |
2.2mH / 1.39A
3.3mH / 1.27A
6.8mH / 1.06A
10mH / 0.96A
15.0mH / 0.77A
22mH / 0,6A
27mH / 0.53A
30mH / 0.46A
33mH / 0.39A
47mH / 0.33A
68.0mH / 0.28A
|
| 6.4A | CV100F |
|
Core material Mn-Zn Inductance 12uH - 25uH DDC resistance 3.35mRΩ - 10mΩ PCB Hole(mm): Ø1.2 Operating temp. -40°C to +125°C |
12uH / 3A
25uH / 6.4A
|
| 6.4A | CV120F | Core material: Mn-Zn Ni-Zi Inductance: 0.22mH - 3.0mH DC resistance: 5.0mΩ PCB Hole(mm): Ø0.12 Operating temp.: -40°C to +125°C |
0.22mH / 6.4A
|
|
| 4A | CV130F | Core material: Mn-Zn Ni-Zi Inductance: 3.0mH DC resistance: 35mΩ-5.0mΩ PCB Hole(mm): Ø0.9/Ø0.8 Operating temp: -40℃ to +125℃ |
3mH / 3.2A
3mH / 4.0A
|
|
| 3A | CV160F |
|
Core material: Ferrite Inductance: 1.5mH-10.0mH DC resistance(mΩ): 10.0-130 PCB Hole(mm): Ø1.0 Operating temp: -40℃ to +125℃ |
1.5mH / 3A
3.5mH / 2.5A
5mH / 2A
10mH / 1A
|
| 5.0A | CV160N |
|
Core material: Nanocrystalline Inductance: 8.0mH-20.0mH DC resistance: 10.0Max/20.0Max/100.0Max PCB Hole(mm): ø0.7/ø1.0/ø1.2 Operating temp: -65℃ to +125℃ |
8mH / 5A
20mH / 3.5A
33mH / 1A
|
| 4A | CV180F |
|
Core material: Mn-Zn, Ni-Zn Inductance: 20.0mH-25.0mH DC resistance(mΩ):120/125 PCB Hole(mm): ø0.85/ø0.9 Operating temp: -65℃ to +125℃ |
28mH / 1.5A
25mH / 3.6A
20mH / 4A
|
| 4A | CV200N |
|
Core material: Nanocrystalline Inductance: 1.0mH-82.0mH DC resistance(mΩ): 3.0-170.0 PCB Hole(mm): Ø1.2 Operating temp:-40℃ to +125℃
|
28mH / 1.5A
25mH / 3.6A
20mH / 4A
|
| 15.0A | CV220F |
|
Core material: Ferrite Inductance: 1.0mH-15.0mH DC resistance(mΩ): 1.0-140.0 PCB Hole(mm): ø1.2 Operating temp: -40℃ to +125℃ |
1mH / 15A
2.5mH / 10A
5mH / 4A
10mH / 2A
15mH / 1A
|
| 20A | CV250F |
|
Core material: Ferrite Inductance: 2.2mH-10.0mH DC resistance(mΩ): 5.0-150.0 PCB Hole(mm): ø0.7/ø0.8/ø1.0/ø1.5/ø2.0 Operating temp: -40℃ to +125℃ |
0.47mH / 20A
1mH / 12A
3mH / 4A
5mH / 2A
8mH / 1.6A
10mH / 1A
|
| 5A | CV250F Encap |
|
Core material: Ferrite Inductance: 470uH-10.0mH DC resistance(mΩ): 40.0-150.0 PCB Hole(mm): ø1.2 Operating temp: -40℃ to +125℃ |
2.2mH / 5A
3.3mH / 4A
5.3mH / 3A
6.8mH / 2.5A
10mH / 1A
|
| 20A | CV310F |
|
Core material: Ferrite Inductance: 1.0mH-20.0mH DC resistance(mΩ): 0.02-50.0 PCB Hole(mm): ø0.8/ø1.2/ø1.5/ø1.8/ø2.2 Operating temp: -40℃ to +125℃ |
1mH / 20A
5.6mH / 15A
10mH / 10A
15mH / 5A
20mH / 1A
|
| 12A | CV360F |
|
Core material: Ferrite Inductance: 1.0mH-10.0mH DC resistance(mΩ): 5.0-150.0 PCB Hole(mm): ø0.7/ø0.8/ø1.0/ø1.2/ø1.5/ø1.8 Operating temp: -40℃ to +125℃ |
1mH / 12A
1.5mH / 8A
3mH / 5A
5mH / 3A
6mH / 2A
10mH / 1A
|
| 1A | CVU10F |
|
Core material: Ferrite Core Inductance: 18mH-30mH DC resistance(mΩ): 3100.0-5500.0 PCB Hole(mm): ø1.0 Operating temp: -40℃ to +125℃ |
18mH / 0.3A
25mH / 0.25A
30mH / 0.4A
|
| 1A | CVU98F |
|
Core material: Ferrite Core Inductance: 1.8mH-30.0mH DC resistance(mΩ): 310.0-2000.0 PCB Hole(mm): ø1.0 Operating temp: -40℃ to +125℃ |
1.8mH / 1A
3.3mH / 0.8A
10mH / 0.45A
|
| 5A | NV080I |
|
Core material: Iron Power Inductance: 100uH-1.0mH DC resistance(mΩ): 35.0-800.0 PCB Hole(mm): ø0.5/ø0.7/ø1.0/ø1.2 Operating temp: -40℃ to +125℃ |
1mH / 0.5A
0.86mH / 1A
0.47mH / 3A
5mH / 0.1A
|
| 20A | NV090I |
|
Core material: Iron Power Inductance: 10uH-470uH DC resistance(mΩ): 4.5-350.0 PCB Hole(mm):ø0.6/ø1.2/ø1.5/ø2.0 Operating temp: -65℃ to +125℃ |
470uH / 1A
150uH / 5A
47uH / 10A
10uH / 20A
|
| 20A | NV090S |
|
Core material: Sendust Inductance: 5.0uH-680uH DC resistance（mΩ）: 3.5-1000.0 PCB Hole(mm): ø0.6/ø0.8/ø1.2/ø1.5/ø2.0 Operating temp: -65 to℃ +125℃ |
680uH / 1A
270uH / 3A
72uH / 5A
33uH / 10A
5uH / 20A
|
| 20A | CV106I |
|
Core material: Iron Power Inductance: 5.0uH-100uH DC resistance（mΩ）: 2.0-170.0 PCB Hole(mm): ø0.6/ø0.8/ø1.0/ø1.3/ø2.2 Operating temp: -65℃ to +125℃ |
5uH / 20A
15uH / 7A
20uH / 3.5A
42uH / 2A
100uH / 1A
|
| 30A | NV106S |
|
Core material： Sendust Inductance：5.6uH-100.0uH DC resistance（mΩ): 2.0-20.0 PCB Hole(mm): ø1.5/ø1.8/ø2.0/ø2.2/ø2.5/ø2.8 Operating temp： -40℃ to +125℃ |
5.6uH / 30A
10uH / 25A
27uH / 15A
47uH / 12A
68uH / 10A
100uH / 6A
|
| 20A | NV130I |
|
Core material: Iron Powder Inductance: 10.0uH-1.5mH DC resistance（mΩ）: 3.0-450.0 PCB Hole(mm): ø0.7ø01.2/ø1.5/ø2.0 Operating temp: -65℃ to +125℃ |
1500uH / 1A
680uH / 5A
100uH / 10A
10uH / 20A
|
| 20.0A | NV130S |
|
Core material: sendust Inductance: 10.0uH-2.2mH DC resistance（mΩ）: 4.0-1200.0 PCB Hole(mm): ø0.7/ø1.0/ø1.2/ø1.5/ø2.0 Operating temp: -65℃ to +125℃ |
2200uH / 1A
680uH / 3A
330uh / 5A
150uH / 10A
10uH / 20A
|
| 20A | NV157S |
|
Core material: sendust Inductance: 90.0uH-810uH DC resistance（mΩ）: 10.0-320.0 PCB Hole(mm): ø0.7/ø0.8/ø1.2/ø1.7/ø2.2 Operating temp: -65℃ to +125℃ |
90uH / 20A
130uH / 12A
260uH / 5A
518uH / 3A
810uH / 1A
|
| 20A | NV184I |
|
Core material: iron powder Inductance: 150.0uH-1000.0uH DC resistance（mΩ）: 15.0-330.0 PCB Hole(mm): ø0.8/ø0.9/ø1.2/ø1.8/ø3.0 Operating temp: -65℃ to +125℃ |
150uH / 20A
270uH / 12A
540uH / 5A
820uH / 2,5A
1000uH / 1,5A
|
| 30A | NV200I |
|
Core material: iron powder Inductance: 100.0uH-680.0uH DC resistance（mΩ）: 5.5-60.0 PCB Hole(mm): ø1.5/ø1.8/ø2.0/ø2.2/ø2.5/ø2.8 Operating temp: -65℃ to +125℃ |
100uH / 30A
168uH / 25A
270uH / 15A
330uH / 12A
470uH / 10A
680uH / 6A
|
| 6A | NV200N | Core material: nanocrystalline Inductance: 1.0mH-20.0mH DC resistance（mΩ）: 15.0-220.0 PCB Hole(mm): ø0.6/ø0.8/ø1.0/ø1.2/ø2.2 Operating temp: -65℃ to +125℃ |
1.5mH / 6A
4mH / 5A
8mH / 3.5A
12mH / 2A
20mH / 1A
|
